Ruckus Cloud: Guest user with Captive Portal login with Google - Self Sign In

ganesh_balarama
New Contributor

Summary:

In this article we will look into the configuration involved in setting up Guest portal authentication with the Self Sign IN using Google

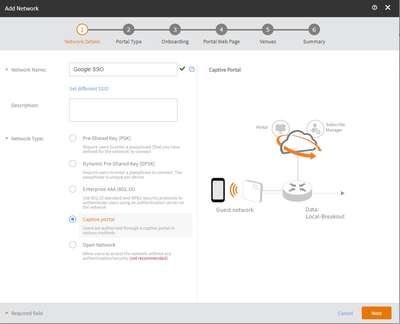

Step 1: Setting up SSID with the Captive Portal - Self Sign IN

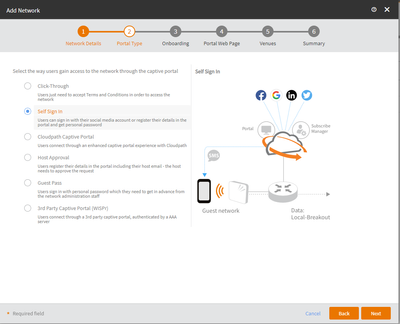

Step 2: Select the Self Sign In under Portal Type

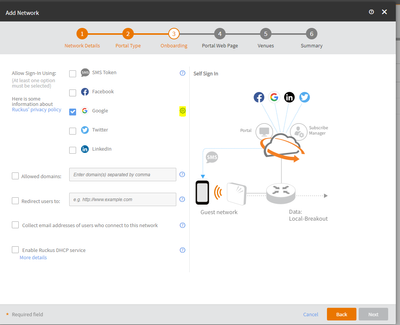

Step 3: Select Google and click on setting as highlighted

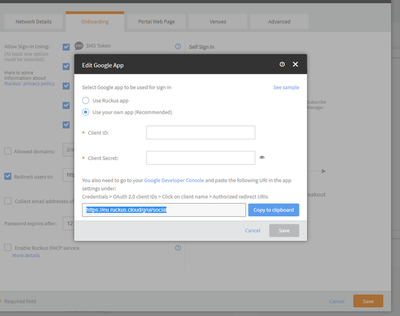

Step 4: We would need to enter the Client ID and Client Secret


Step 4a, To generate the Client ID and Client Secret, Click on the Google Developer Console

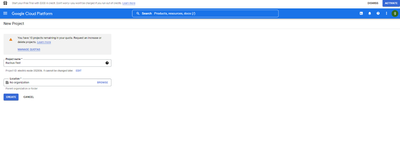

- Create a new Project

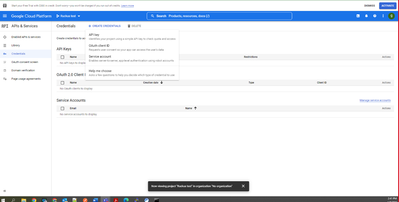

- Click on Credentials >  +CREATE CREDENTIALS > OAuth Client ID

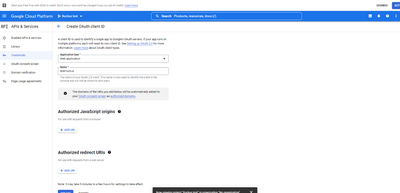

- In OAuth Client ID > Application Type as Web Application , then type Name

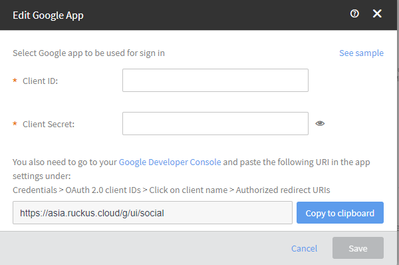

- Now Click at Authorized Redirect URIs , +ADD URI. Navigate to the Ruckus Cloud and copy the URI


- Paste the URI and save

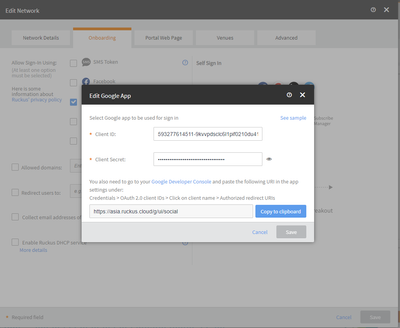

- Get into the Client ID for Web Application for the Client ID and Client Secret


Step 4b: Enable People API from Google console

- In Enabled APIs & Services, Click + ENABLED APIS AND SERVICES

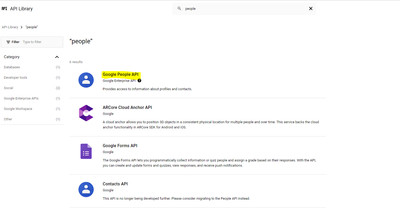

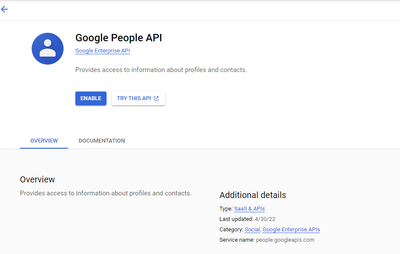

- In the API Library, look for Google People API and have it enabled.








Step 5: Client will now have the successful authentication
