This is a simple example how to configure SNMP version 3 with an ICX switch, please consider SNMP version 3 is more complex than versions 1 and 2, therefore, it might require additional configurations that we are not including in this article
ICX configuration:
Device(config)# snmp-server host 10.45.252.65 version v3 auth Edgar
Device(config)# snmp-server group Ruckus v3 priv read all write all
Device(config)#snmp-server user Edgar Ruckus v3 auth sha test123456 priv aes test12345678
This example the username Edgar belongs to Group named as Ruckus
The “read and write all” configuration allows to get information (read) from the switch and set configuration (write) on the switch
We are using as authentication protocol SHA with pass phrase test123456
The privacy protocol is AES with pass phrase test12345678

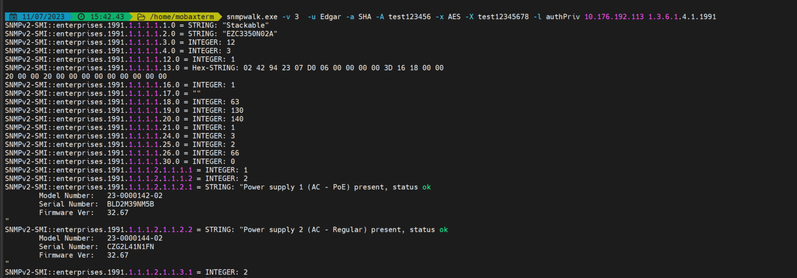

Now we can run the snmpwalk in MobaXterm:
First make sure you have installed the net-snmp services in MobaXterm
snmpwalk.exe -v 3 -u Edgar -a SHA -A test123456 -x AES -X test12345678 -l authPriv 10.176.192.113 1.3.6.1.4.1.1991
Here is the command syntaxis
snmpwalk -v3 -u <username> -a <auth_protocol> -A <auth_password> -x <priv_protocol> -X <priv_password> -l authPriv <target_host> <oid>
