LDAP Authentication on Non-Proxy(AP Authenticator) to authenticate users in Specific Group in OU

ganesh_balarama
RUCKUS Team Member

How to set up web authentication with LDAP Authentication on Non-Proxy(AP Authenticator) to authenticate users in Specific Group in OU?

Environment: vSZ/SZ-144 and Windows 2016 server

Scenario: We need to authenticate the users who are present under specific group under an OU. We have the LDAP, the primary OU, and the lldpl user is another OU inside the LDAP. Our requirement is to get the users under the STUD group which is in lldpl user OU to get authenticated.

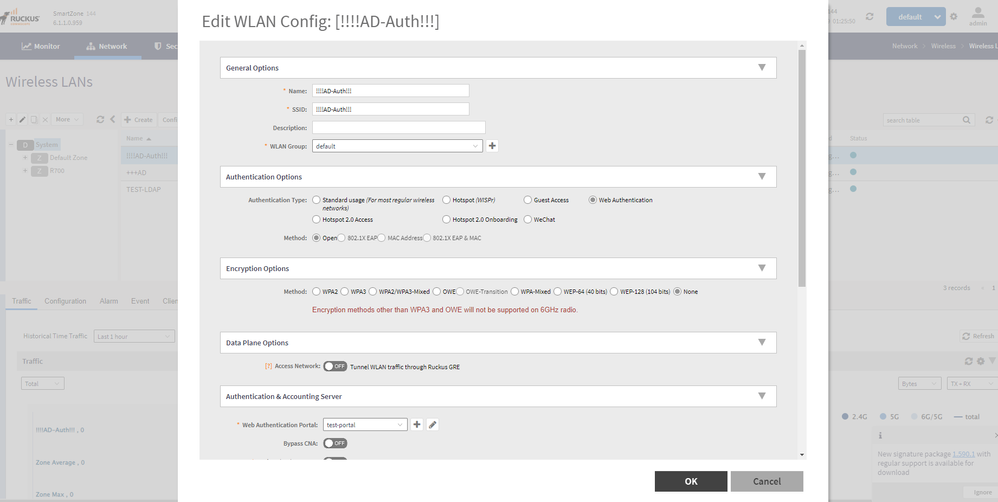

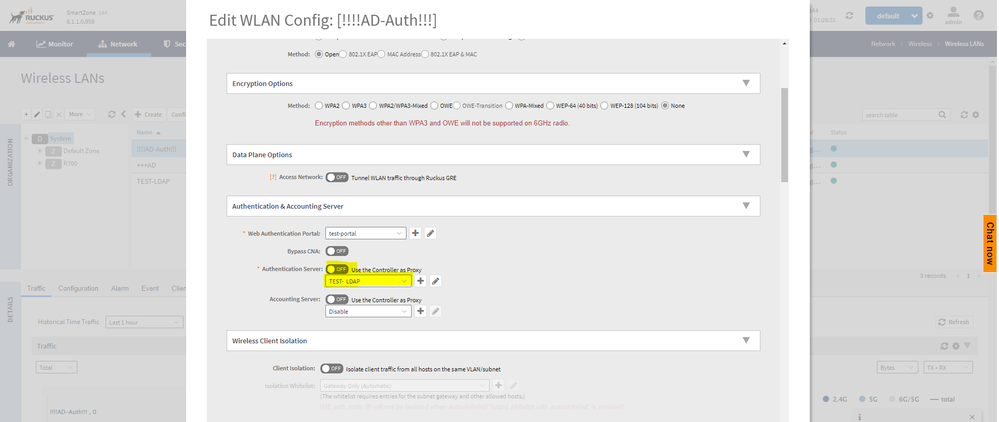

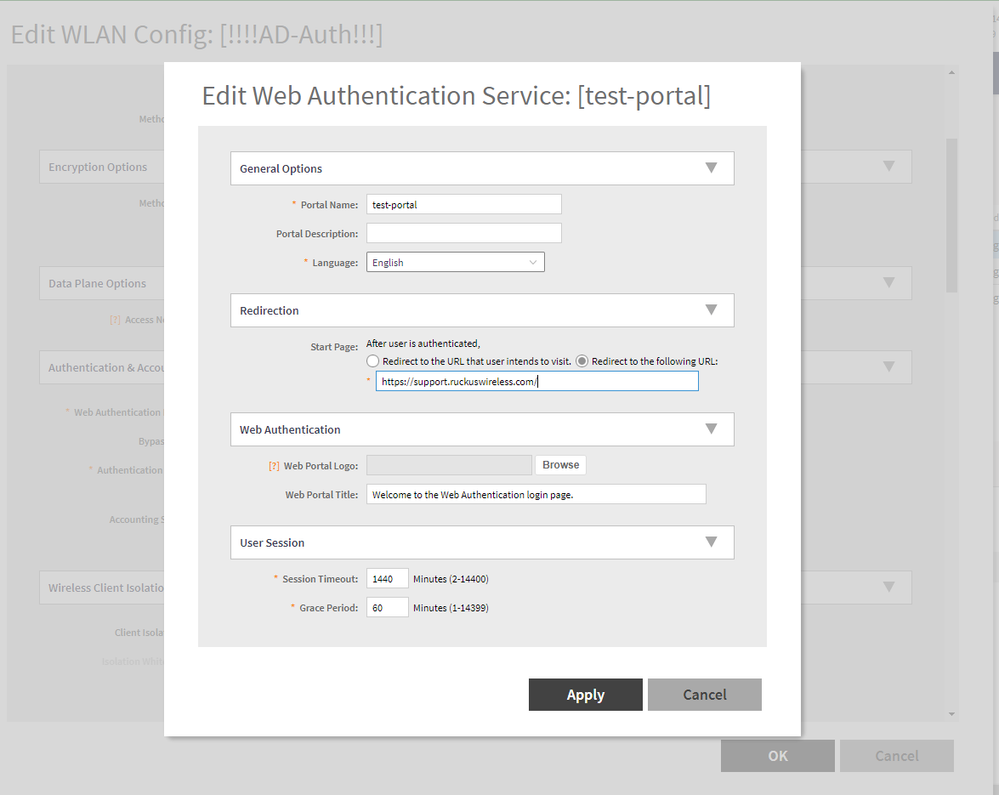

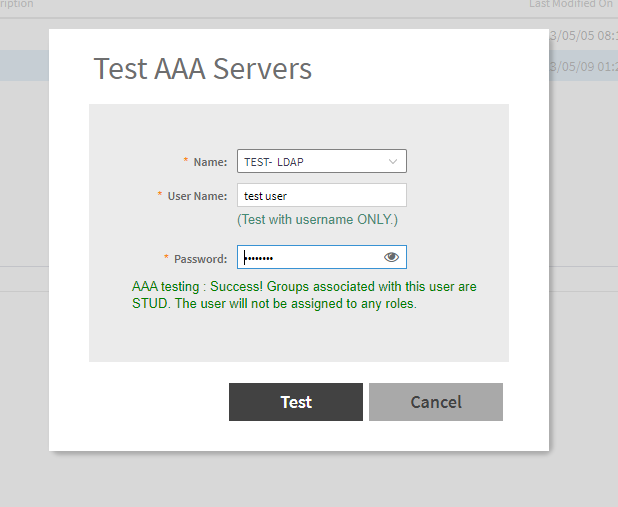

WLAN Configuration:

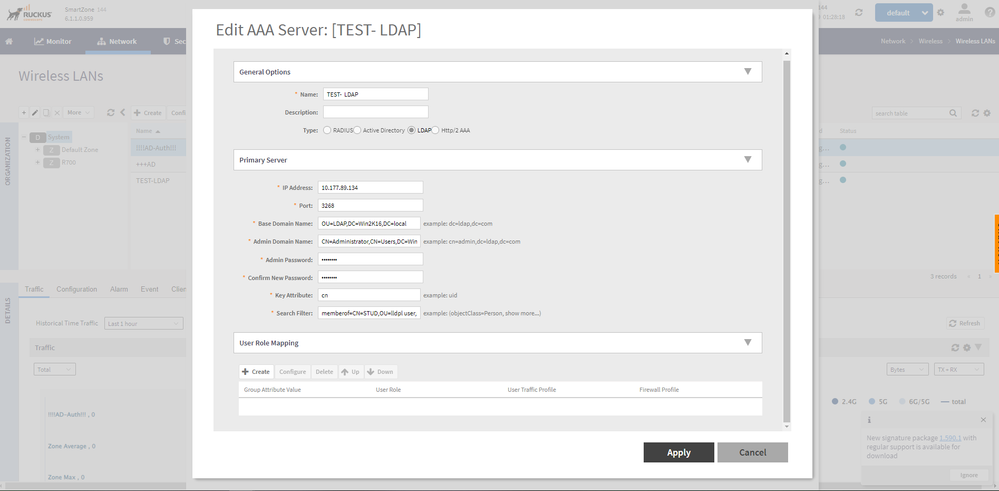

Base Domain Name: OU=LDAP,DC=Win2K16,DC=local

Admin Domain Name: CN=Administrator,CN=Users,DC=Win2K16,DC=local

Admin Password: [Password of the above CN = Administrator], ensure we provide the  AD Server Administrator password

Search Filter: memberof=CN=STUD,OU=lldpl user,OU=LDAP,DC=Win2K16,DC=local

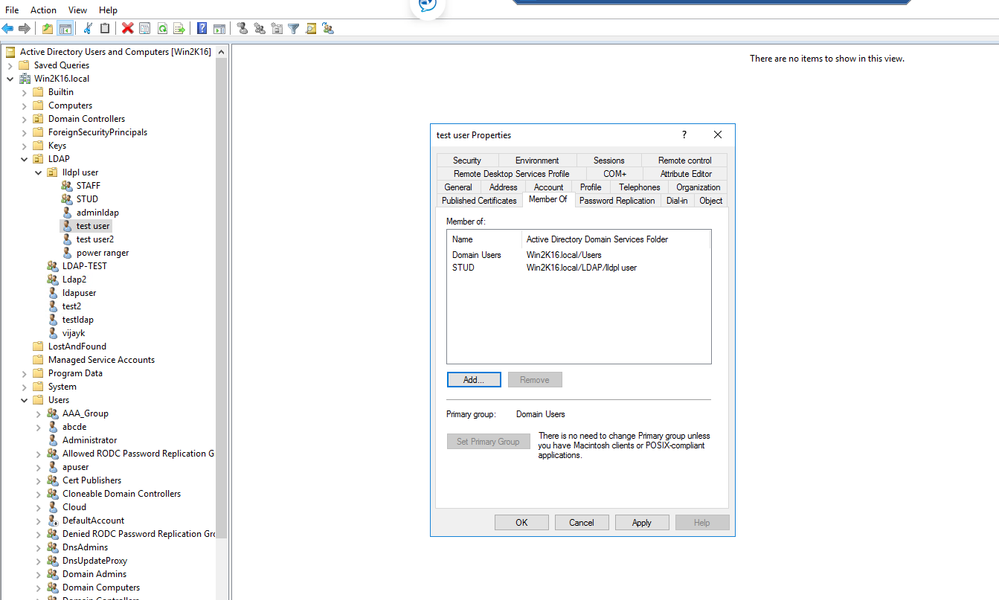

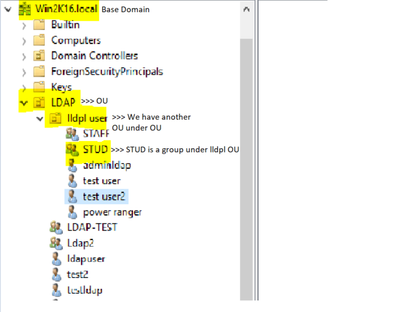

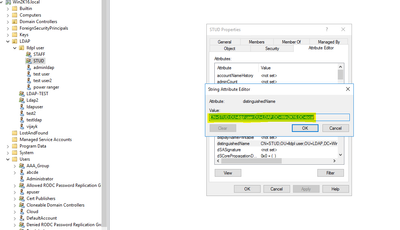

LDAP Configuration:



The above highlighted attribute of STUD should be used as the search filter in the Controller.

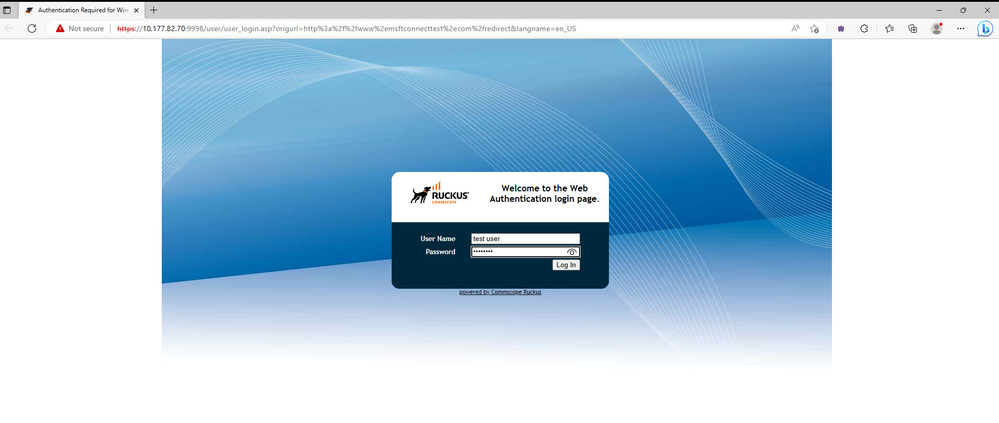

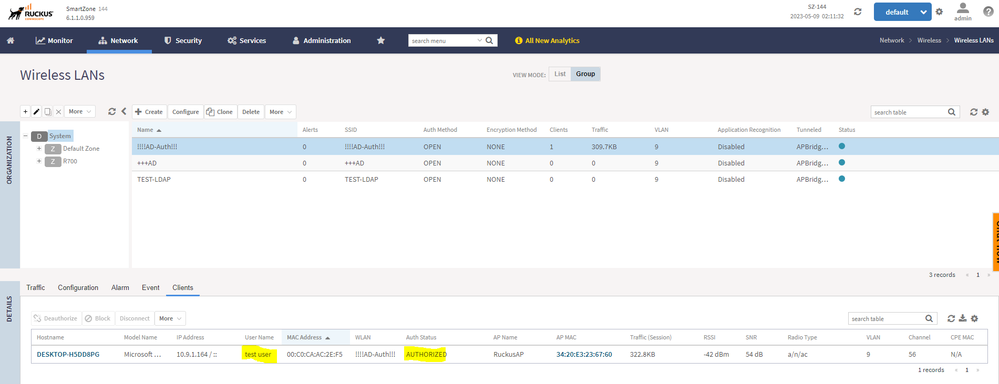

Wireless Client:
