How to schedule zone firmware upgrade through vSZ version 6.1.1.0.x

vasanth_edward
RUCKUS Team Member

As a Ruckus Technical Support Engineer, I would like to share my experience on configuring automatic zone firmware upgrade on vSZ.

Follow below steps to schedule zone firmware upgrade on vSZ running on 6.1.1.0.x

Login into vSZ GUI>>Administration>>Upgrade >>Schedule Zone Firmware Upgrade


Schedule Task>> “+Create”

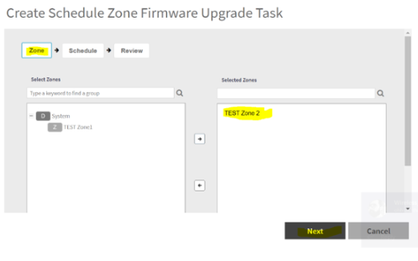

Select Specific Zone  for the upgrade

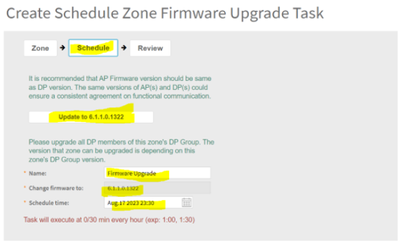

Schedule >> Provide Name/Change Firmware to(Select the version from the available list)/Schedule time( Mandatory fields)
Note : Time will execute at 0/30 min every hour (exp : 1:00, 1:30)


Review all the information before upgrade >> Ok


If you got any queries, please use the comment section on this thread.

Thank you!

Regards,
Vasanth Edward || Senior TSE
RUCKUS Networks, CommScope!
