This information pertains to general knowledge for utilization within the context of ICX-Unleashed-SZ-vSZ.

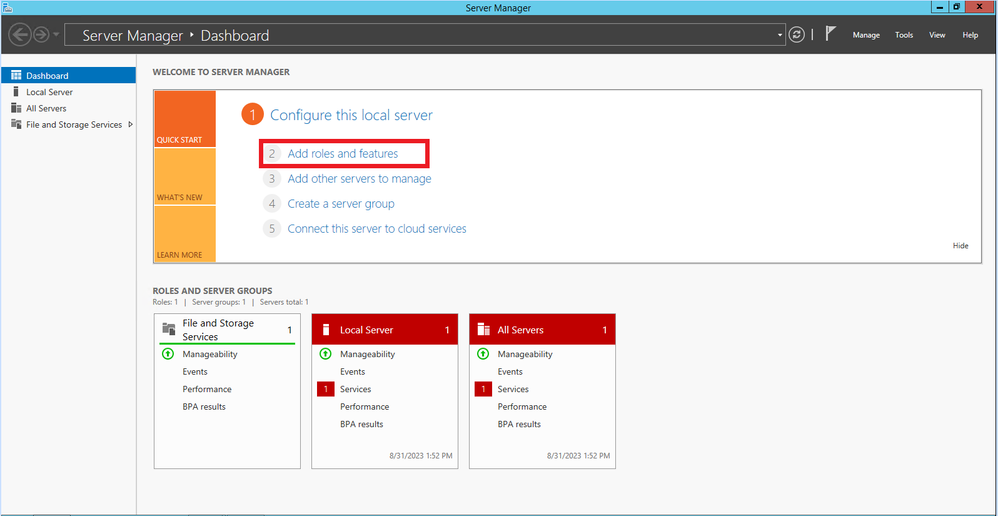

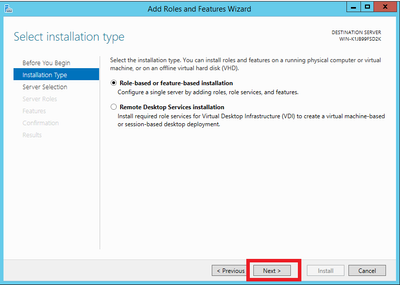

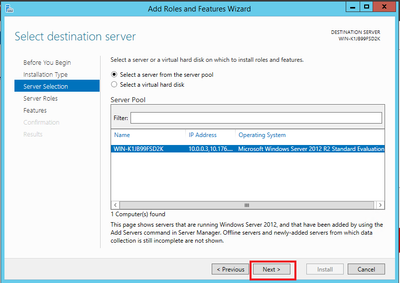

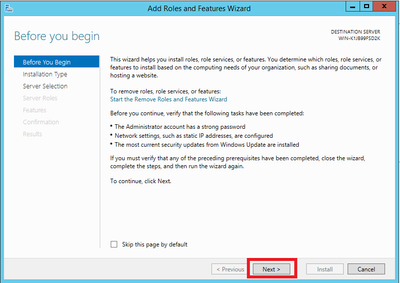

Initially, need to connect with the Server Manager. Subsequently, we will install the DHCP feature. The installation choices are discretionary; I plan to implement a role-based approach with a focus on the "basic" configuration.

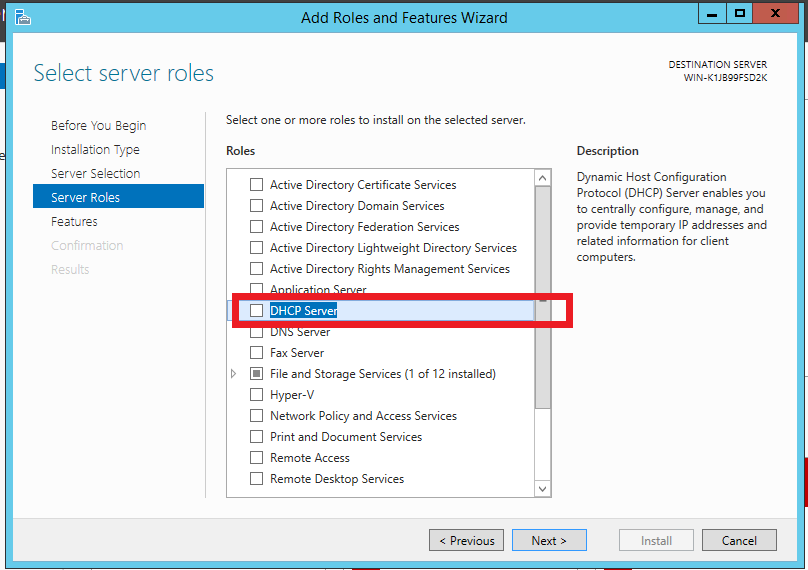

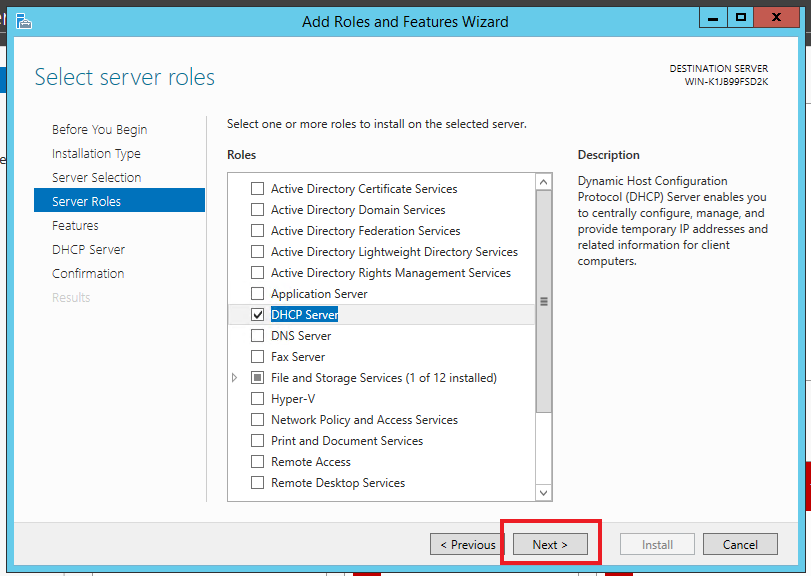

At this point, we will proceed with the installation of the DHCP function.

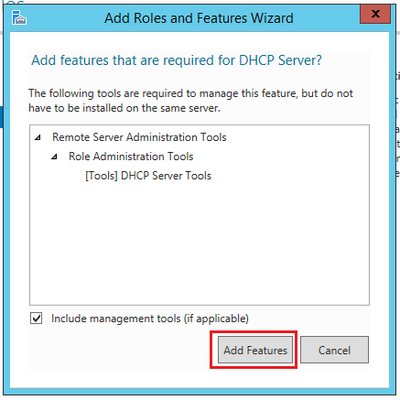

We will incorporate the essential features as required.

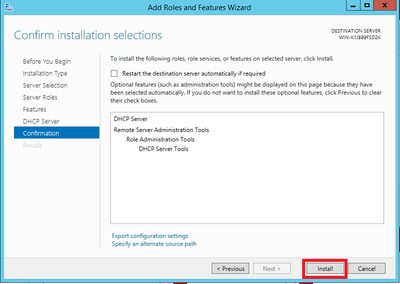

Install

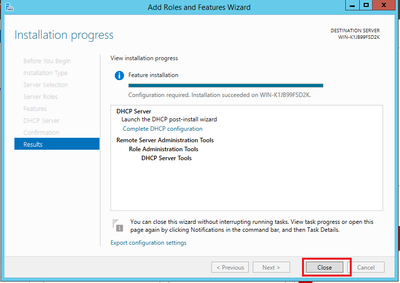

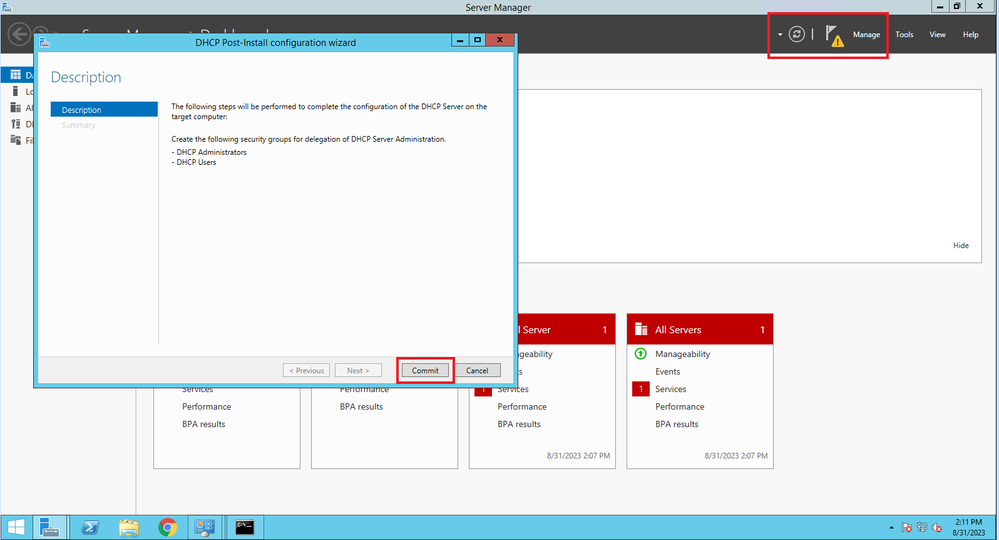

We should expect a warning. In such a situation, we will proceed by selecting "commit" and then closing it.

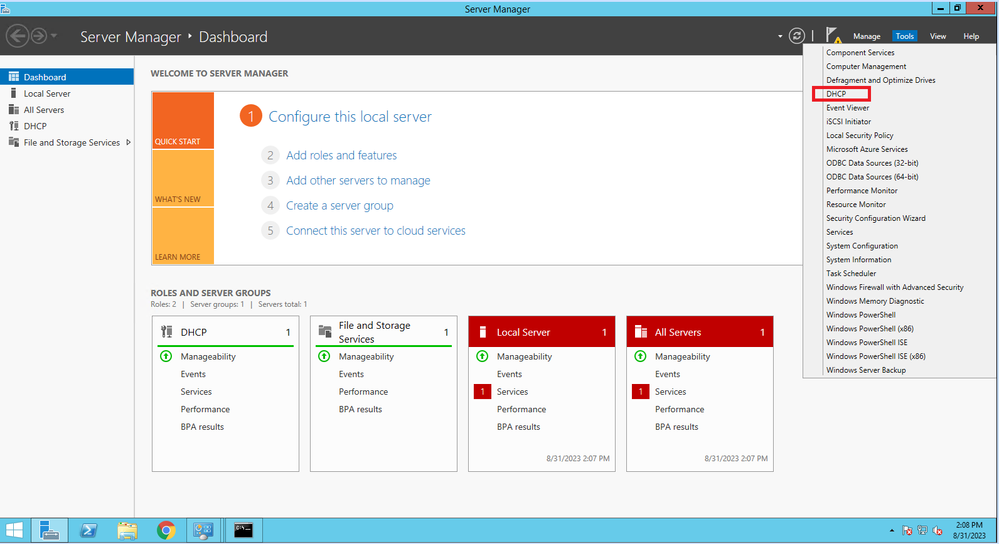

Navigate to the Tools tab and proceed to choose the DHCP option.
This action will launch the DHCP manager, providing us with the capability to generate scopes and configure DHCP groups based on our specific preferences.
I will now conduct a demonstration of a fundamental IPv4 configuration. Please note that these values can be adjusted to align with your preferences and the necessary configurations.

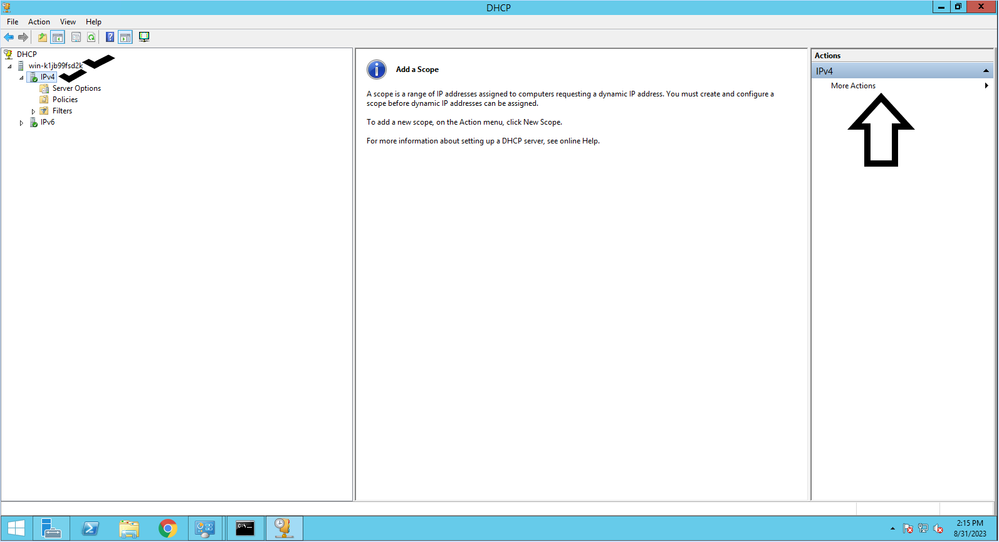

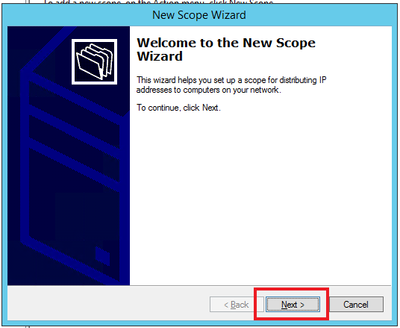

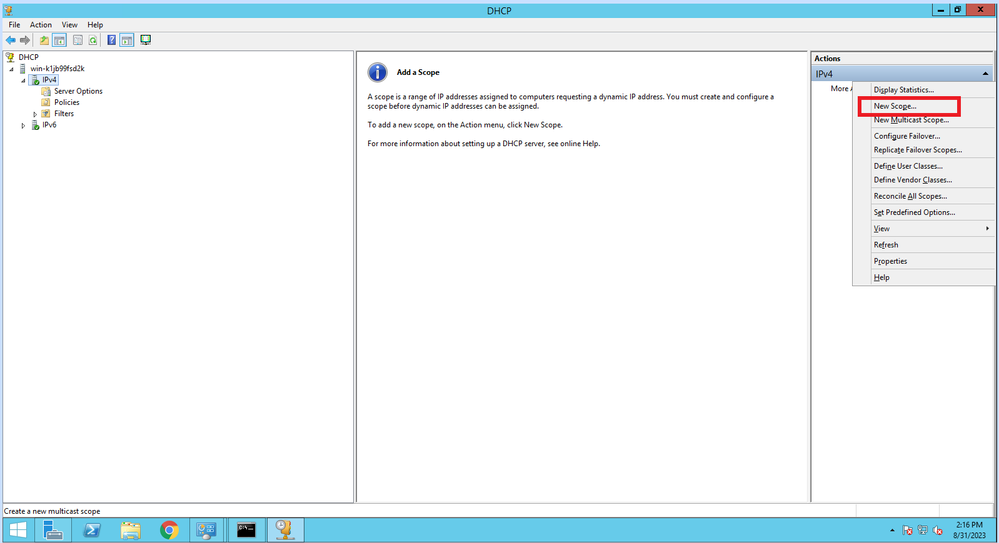

To proceed, select the "IPv4" option, followed by "New Scope."

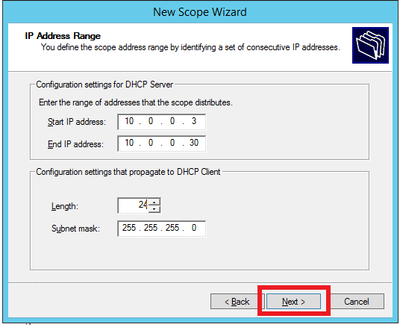

I will configure the scope range from the following range 10.0.0.3 to 10.0.0.30, ensuring that the devices are assigned valid IP addresses within this range.

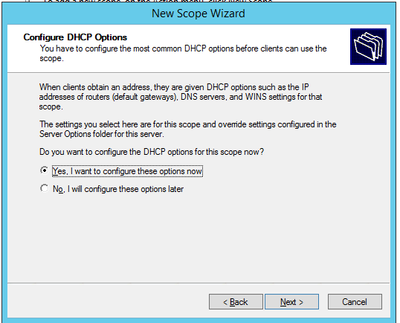

The subsequent options are provided on an optional basis:

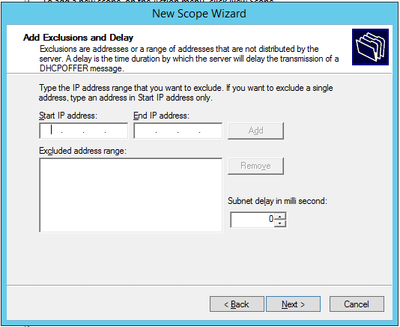

+Exclusion addresses

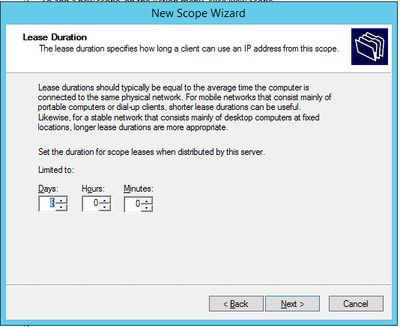

+Lease time
+DHCP options
+Default Gateway
+DNS
+Server

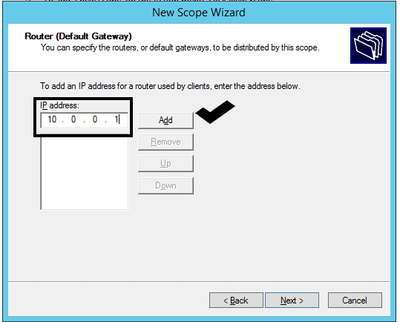

I will incorporate the feature to assign a default gateway to the client's IP configuration.

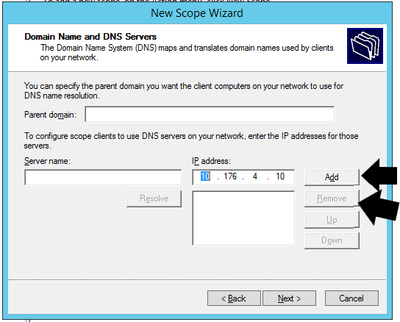

In the DNS server there are some by default you can delete them and add the directory of your preference

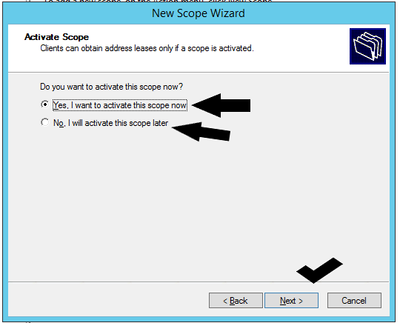

You have the choice to enable DHCP here, but if you prefer, you can opt to activate it later. For now, I'll proceed with its activation.

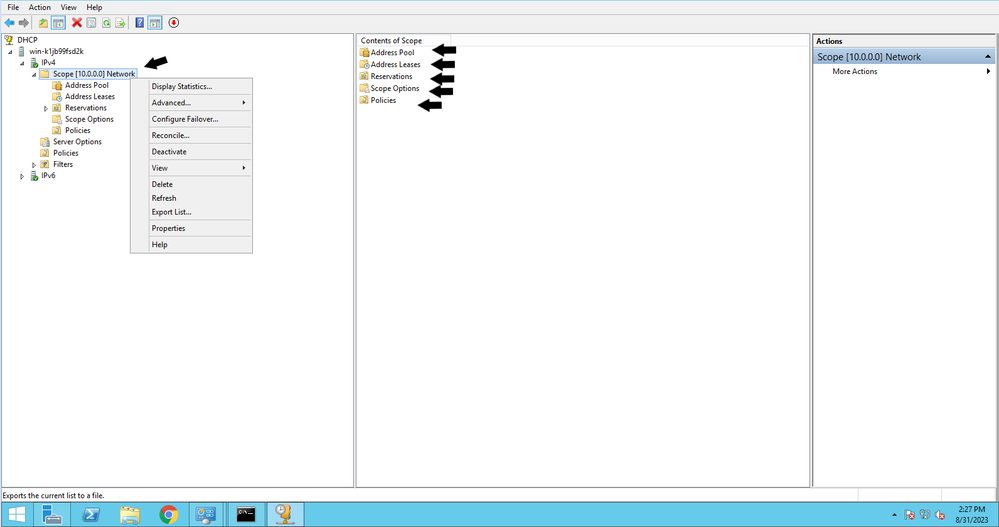

After setting up the DHCP server, you will notice its presence within the administrator interface. From there, you'll be able to customize the configuration according to your preferences, review leasing information, monitor statistics, and easily manage additions or removals of configurations as needed.
