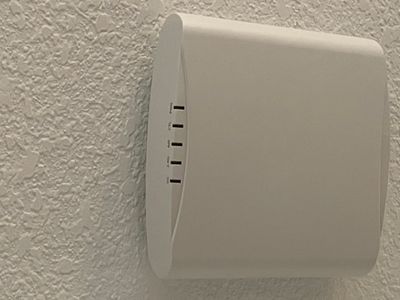

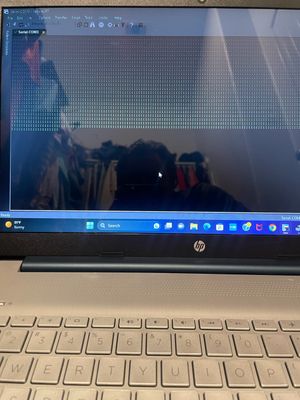

My access points do not have power. My switch has a green light and an amber light. I tried all the guides to reset it none have worked. I hooked up the usb to c cable and was able to get connect to the switch however all I got was a bunch of lines like it was on a never ending load. I will attach images. I at this point am thinking I need it all replaced.
Hi @Jhiggins91
Thank you for the detailed information you shared.

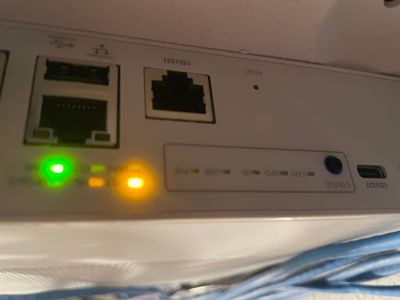

As you mentioned there are lights on PWR and SYST, if there is an amber/orange light on the "SYST" and a green light on the "PWR" on the Switch (as it is in the below picture). Meaning the Switch is stuck in the boot mode.
Basically, due to the power outage/ power spike, the switch went to a state that we call ‘boot mode’ that is not able to boot up properly.
Please follow the below steps to fix this issue:
As you mentioned that you tried reset, Once again we will try to reset the Switch as described below:
1. Please try to disconnect from the Power outlet the ICX-7150 and reconnect.
2. Please try to press the reset button using a paper click or a small stick
- Remove power from the switch.
- Press and hold the Reset button while applying power to the switch.
- After all the system LEDs flash amber, release the Reset button.
IF RESET IS NOT WORKING, PLEASE TRY TO RESET YOUR SWITCH MULTIPLE TIMES (Like 10-15 times) AS DESCRIBED ABOVE.
IF STILL RESET DOESN’T WORK: Please follow the below steps.
If the reset does not make any difference, we need to perform a software recovery since it can be that the image flash is corrupted in basic words the unit is not able to boot up properly and need re-install the image to boot up properly.
Below is the Guide and Video Link to perform the Software recovery process:
Please refer to the below guide and Video link:
Video Link: https://www.youtube.com/watch?v=Ql22blH_CGo
Please let me know if you have any queries in this regard.
Thank you again for your patience.
Best regards,
Imran Sanadi
RUCKUS Lennar Home Community.
As I said before I already tried this. This is all it would do
