01-10-2023 01:54 PM
I have a Lennar home with 3xR510 WAPs all connected to a ICX7150 switch running over Cat6e. We have Xfinity 1gb service. When i perform a Analiti speed test connected directly to the xfinity router with a device i get ~500mpbs. Once I connect a device through the existing Ruckus network the speed drops to ~40-70mbps. If I reboot the switch the speed goes up to ~500 which is expected. Not sure what I can do to resolve this and I have to reboot roughly once a week, any help would be appreciated, thanks
Solved! Go to Solution.
01-12-2023 10:29 AM - edited 01-12-2023 10:29 AM
Hi @Mymnte
Thanks for the update !
Please run the following commands to check the cables status
clear cable-diagnostics tdr 1/1/2
phy cable-diagnostics tdr 1/1/2
Note : Wait about 3 minutes to run the following command
show cable-diagnostics tdr 1/1/2
clear cable-diagnostics tdr 1/1/3
phy cable-diagnostics tdr 1/1/3
Note : Wait about 3 minutes to run the following command
show cable-diagnostics tdr 1/1/3
clear cable-diagnostics tdr 1/1/4
phy cable-diagnostics tdr 1/1/4
Note : Wait about 3 minutes to run the following command
show cable-diagnostics tdr 1/1/4
Best Regards
Fernando Vasquez
01-13-2023 07:07 AM - edited 01-13-2023 07:30 AM
Hi @Mymnte
That cable needs to be replaced with a good one! This can affect performance causing the speed to be very slow through that access point.
It may be that one end of the cable is damaged or the cable is bent.
Best Regards
Fernando Vasquez
01-11-2023 11:21 AM
01-12-2023 05:07 AM
The issue occured again this morning so I connected my laptop with a patch cable to the switch and the speed test was 700/40 so it appeared to be wireless only, while in there I moved the network cables for the 3 apis to new ports and that seems to have resolved the issue without a reboot, at least for now, I will monitor and see if speed dips again.
01-12-2023 07:14 AM - edited 01-12-2023 07:14 AM
Hi @Mymnte
Thanks for the update !

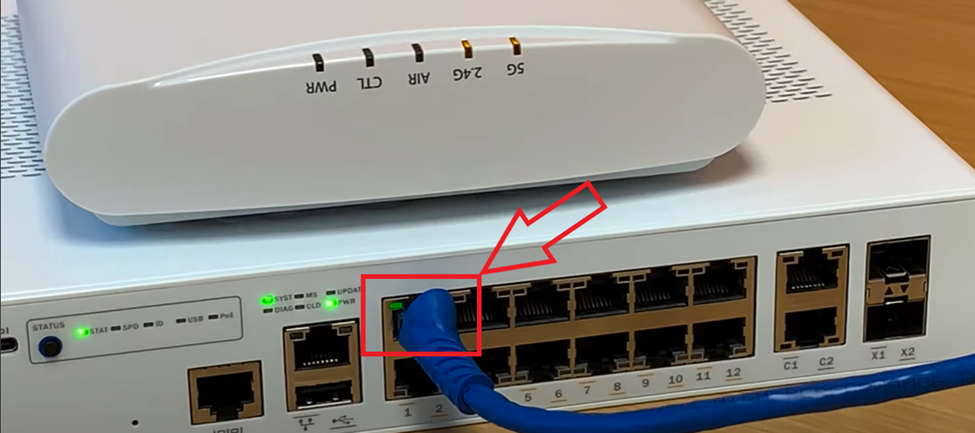

Please check the cables from the Wireless access Point on the switch ICX-7150-C12.
Indicate what color (green or amber) is the port that goes to the access points
Best Regards
Fernando Vasquez
01-12-2023 08:01 AM
They are all green
01-12-2023 08:05 AM
Hi @Mymnte !
Once the problem comes back, check the ports
It would be great if you have access to the ICX-7150-C12P via IP or Console This to preform a cable diagnostic
Best Regards
Fernando Vasquez
