Icx issue after power out and firmware upgrade

[Wecovernc]

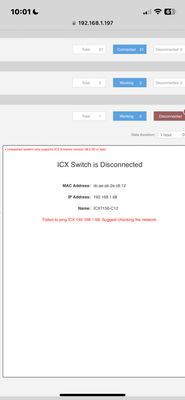

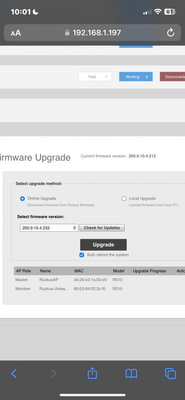

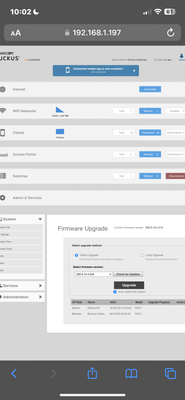

I have an icX router in my Lennar home. Every time the power goes out we have a connectivity issues. I also did a firmware upgrade but still have issues and you can see that. I also have we’re says the switch is disconnected.failed to ping

 

 

 

[Jayavidhya]

Hi @Wecovernc

Greetings of the day,

For detailed understanding of the issue please let us know the LED status of the switch and the access points using the below guide.

R510 LED lights

https://docs.commscope.com/bundle/unleashed-200.12-onlinehelp/page/GUID-19D4261B-D10B-4DE3-B63A-3498...

RUCKUS LED lights

https://docs.commscope.com/bundle/icx7150-installguide/page/GUID-973C8AE8-837A-41C7-9811-BAEF6ADEF3D...

Please let us know if you have any queries in this regard.

Best regards,

Jayavidhya

Lennar Home Community

[Wecovernc]

R510’s

unit 1. Lights for PWR,5gand 2.4g are all green

unit 2 lights for PWR,5g,2.4g and CTL are all green

on the main switch.
STAT,SYS AND PWR are green and the ports with a CAT 5 cable plugged in are also green.

[Imran_ruckus]

Hi @Wecovernc

Greetings!!!

Thank you for contacting Lennar Home Community.

Hope you are doing well!!!

Thank you for the detailed information you shared.

As per the case description, I could understand that your RUCKUS setup is not working after a power outage.

We will check some configurations on the Switch, please follow the below steps to check the same.

Please follow the below steps and help us with the queries:

1. To check this issue, we must identify the ‘current’ IP address assigned by your local router to the switch ICX-7150-C12P

I will leave you a guide on how to perform an IP scanner on your local network to identify the switch IP address very easily.

How to find my Ruckus “Devices IP address” using free applications:

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-find-my-Ruckus-Device...

2. Once we identify the IP address of the switch proceed to access remotely to the device “Command Line”

How to remotely access to 'ICX 7150-C12P' or 'access points' "Network devices":

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-remotely-access-to-IC...

If you can access the Command line should look like this:

ICX7150-C12 Router> OR

ICX7150-C12 Switch>

Please enter the below commands once you log in to CLI and share the output.

Note: Hit Enter to accept each command

enable

show version

show flash

Please share the output of the above commands or share the screenshots if stuck at any step or error (if any) and let me know if you have any queries in this regard.

Thank you again for your patience.

Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

[Wecovernc]

When I log in with putty and get the command line I type enable and it asked for Ruckus# what do I enter?
