How to find my Ruckus “Devices IP address” using free applications

Vásquez_Fer
Moderator
Moderator

Using the following applications is possible to scan your network to check the IP address for Telnet/SSH or web access to the Ruckus devices.

Windows:

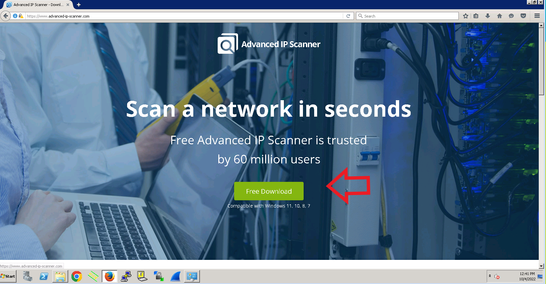

https://www.advanced-ip-scanner.com/

NOTE: IMPORTANT VIDEO TO WATCHhttps://youtu.be/O1lerd0IFg0

Apple:

1-https://apps.apple.com/us/app/lanscan/id472226235?mt=12

2-https://apps.apple.com/us/app/ip-scanner/id404167149?mt=12

Video as reference : https://www.youtube.com/watch?v=vD7KLR8u1EM

iOs or Android option

https://apps.apple.com/au/app/fing-network-scanner/id430921107

Video Reference : https://www.youtube.com/watch?v=gWdarROXBmI



1 ) Downloads the application

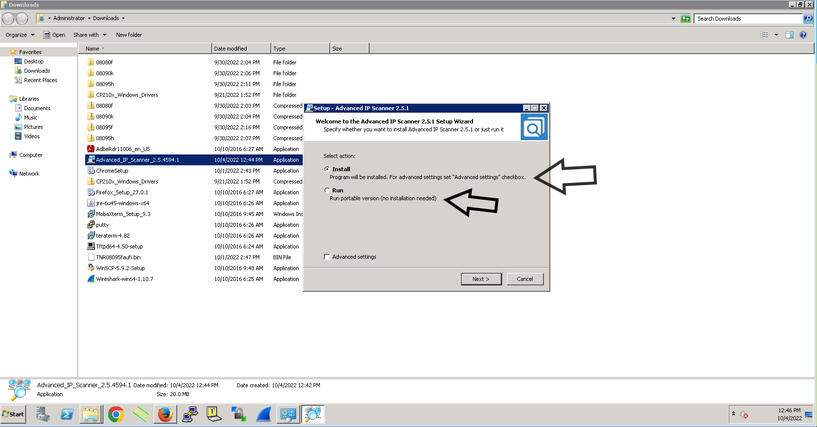

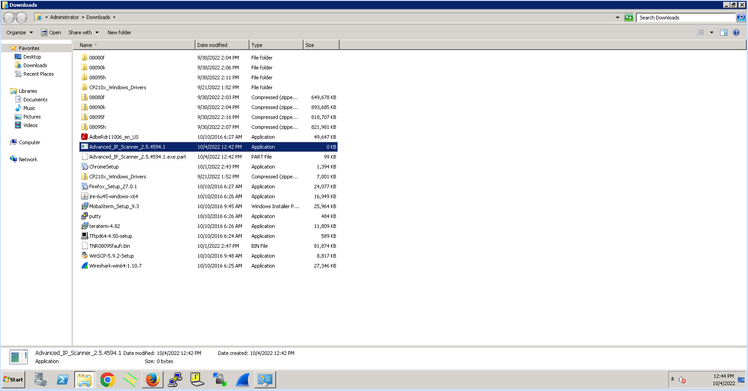

2 ) Proceed to install (it can be portable ‘does not need to be install’ or install.exe that install the app in your computer)

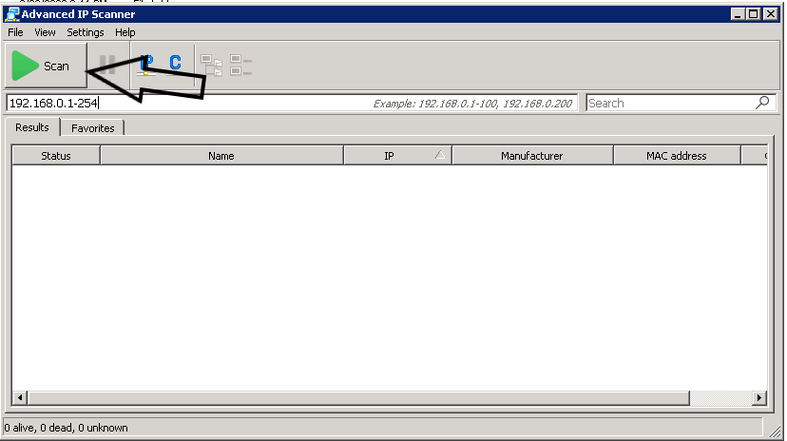

3 ) Once is installed (open the app) and then click the Start bottom to star running the scanner

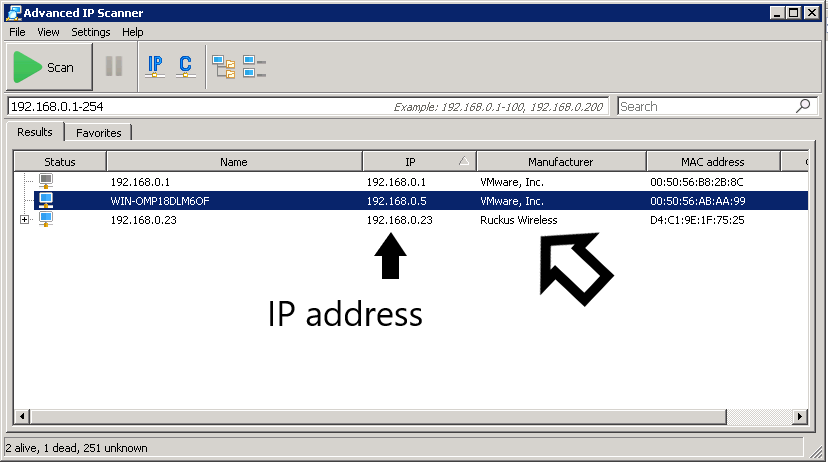

4 ) Ruckus devices are going to be detected as Ruckus Wireless / Ruckus Switch / Ruckus Router / unleashed as the shown example:Vsquez_Fer_5-1666283876791.png

Video link as reference: https://www.youtube.com/watch?v=0zxgUn_Tm08

5 ) Since we already know the IP for the Ruckus switch (192.168.0.23) , I can access to the switch via Web/ssh/telnet

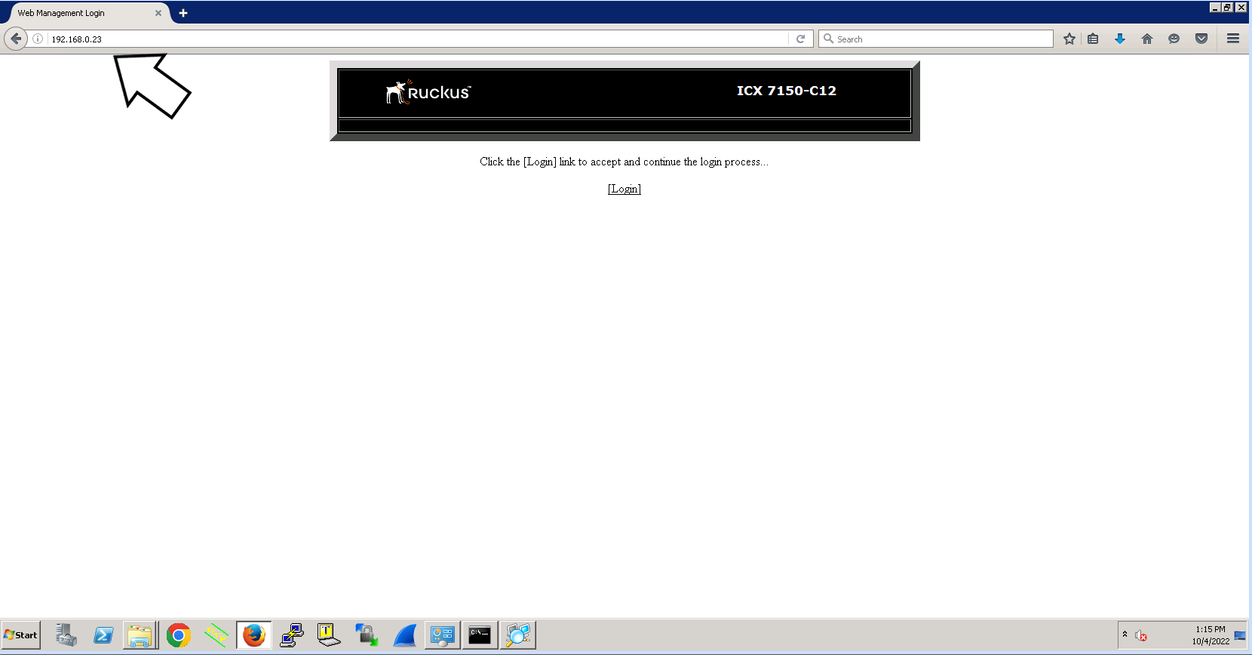

Webb access example :


SSH example:






Telnet example :

telnet example.PNG



Note: If the IP address of switch does not appear on the  IP Scanner please reboot the local Router ( ISP device

Another solution is to log in in your local Router and check the 'device list'

https://www.wikihow.com/See-Who-Is-Connected-to-Your-Wireless-Network

https://www.howtogeek.com/204057/how-to-see-who%E2%80%99s-connected-to-your-wi-fi-network/
