ICX 7150-C12P in router mode

[rleschber]

I am trying to get a replacement ICX 7150 switch to connect however, I believe it is in router mode instead of switch.  I have read the multiple threads on how to resolve this however, I cannot telnet in.  Can someone please walk me through how to resolve this?  I do not have technical experience with switches and how to telnet in so please make this as simple as possible.  Thank you!

[Chandini]

Hi Rleschber

Ack and Noted. Thank you for reaching out to us.

Could you please let me know if you are from Lennar Homes ?

I have attached a link below that will help you to console to the switch and access switch CLI using putty . Follow the steps in case you are facing an issue . Please upload the picture of the image to this post .

Link :

• https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-console-in-the-ICX-71...

Once you have access to switch using CLI. Please help us with below command.

• Switch> enable
• Switch#show run | include telnet
• Switch#show telnet config

If you facing any issue or seeing a error when you follow any steps in the link. Please upload the picture of the error using the below option

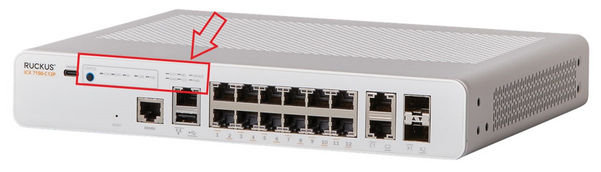

Also please upload the picture of front panel of the switch using the above option .

I hope the above steps help you.

Thanks

[rleschber]

Hi, I was able finally telnet into the device and it appears both the primary and secondary code is router.  I do not see the switch code in either.  I do have a Lennar home.  How do I resolve this?

[rleschber]

Here is a screenshot.

 

[Chandini]

Hi Rleschber

Ack and Noted. Thanks for reverting back.

Below is the link to firmware 8095h :

• https://support.ruckuswireless.com/software/3494-ruckus-icx-fastiron-08-0-95h-ga-software-release-zi...

After downloading the firmware from above link

• Unzip the folder
• Go to 7150 folder -> Images folder -> choose "SPS08095hufi.bin" for the upgrade methods given below

Refer below links to upgrade to SPS firmware

How to Upgrade a Switch ICX-7150-C12P using a USB flash drive

• https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-Upgrade-a-Switch-ICX-...

How to upgrade a Switch ICX7150-C12P via TFTP (YouTube link)

• https://www.youtube.com/watch?v=DHIEajPhHWQ

Software Recovery method

• https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-perform-a-Software-re...

I hope the above links help you.

Thanks
