Self Registration Guest Pass Generation in Smart Zone controller running in 6.1 version

Ambika-leimapok
RUCKUS Team Member

Summary:

  • In this article, we will look into the steps involved in setting up Self Registration Guest Pass Generation in Smart Zone controller running in 6.1 version

Note: This feature is available  since 6.1 version onwards

Network Environment:

  • SmartZone/Virtual SmartZone [Essentials/High-Scale] (Controller), version 6.1.0.x.x
  • R710 (Access Point)

Setup Procedure:

  • To create SMTP server in the vSZ/SZ GUI, navigate to ‘System->External Services->SMTP’ and turn on the “Enable SMTP Server” toggle, fill the SMTP server details. In my example, I am using gmail server




  • Do the test, once it is successful, click on “OK”


  • Once the SMTP server has configured, create a “Guest Access Portal”, navigate to “Services & Profiles”-> “Hotspots & Portal” -> “Guess Access” then select the “Create”

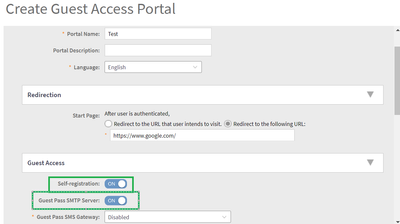

  • Fill the details, turn on the “Self-registration” toggle and the “Guest Pass SMTP Server”



  • Post Guest Access Portal creation, create the WLAN for the Guest Access
  • Navigate to “Wireless LANs”-> Select the Zone then click on “Create”

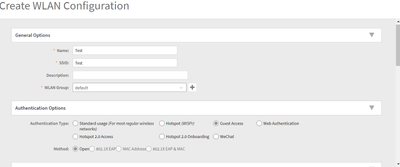

  • Name the WLAN, in my setup I named it as ‘Test, Authentication Type as "Guest Access" and Method as "Open"


  • Encryption Options is selected as ‘None' (but it can change based on requirement).




  • Under Guest Access Portal, select ‘Guest
  • In 'Guest Portal Service’, select the Guest Access Portal profile which we have created from the drop down then click on “OK”




  • All other settings including VLAN assignment for end-user devices are set to the default values in my set up

Regards,

Leimapokpam Ambika
