Mac Address Filter vSZ

muhammad_azhar_
New Contributor

Hi,

I want to ask about the MAC address filter on VSZ, how many is the maximum Mac address filter that can be registered on vSZ 5.2.1 version?

Thanks,

3 REPLIES 3

syamantakomer
Community Admin
Community Admin

Hi Muhammad,

Are you referring L2 ACL? If yes, you can configure up-to 128 addresses.


Syamantak Omer
Sr.Staff TSE | CWNA | CCNA | RCWA | RASZA | RICXI
RUCKUS Networks, CommScope!
Follow me on LinkedIn

Hi @syamantak_omer ,

What if I have more than 128 mac addresses?

and I also want to ask if you know the csv template on L2 ACL in vSZ, please tell me so I can use the import to csv feature on L2 ACL in vSZ.

Thanks,

128 limit means you cannot configure more than that.

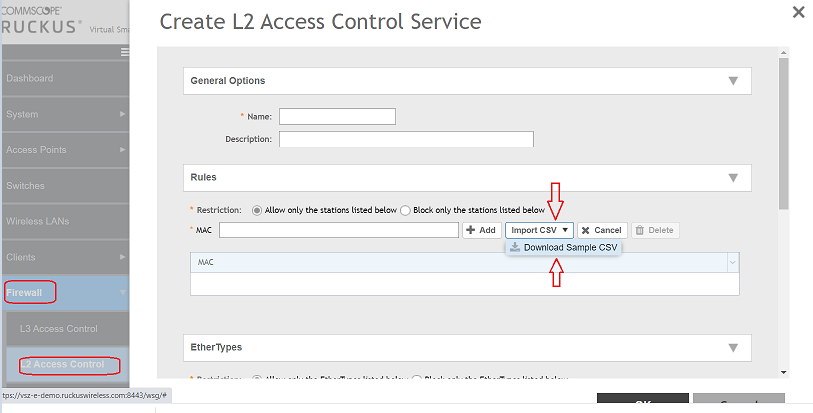

For L2 ACL import, you can first download the sample file and then update it with your desired MAC entries. Now upload it by clicking on "import".

Image_ images_messages_5fd36e377288d52d004c373d_f498089f96acb42aa1a73e1883fb34e0_Forum_11_12-686685a2-6933-4345-a0b4-1bec9c9dea56-2090137091.PNG




Syamantak Omer
Sr.Staff TSE | CWNA | CCNA | RCWA | RASZA | RICXI
RUCKUS Networks, CommScope!
Follow me on LinkedIn
