Solid Amber Light - System Recovery Failed

mbigtoe
New Contributor

Hello.  After a power outage, my Ruckus ICX-7150 failed to boot up and I have solid amber light.  I tried hitting the reset button and unplugging to no avail.  I consoled in using these instructions.



https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-perform-a-Software-re...



It was going well until I did the Ping and got the message that the "ping failed: host 192.168.0.2 is not alive".

I switched out my cable and tried again, but got the same message.

Not sure what to do at this point.  Any help would be appreciated.

Thanks!

1 ACCEPTED SOLUTION

Hi @mbigtoe



Thanks for your reply.



Based on the troubleshooting done, seems that the management port is not  responding, so  this unit should be RMA (return merchandise authorization) in simple words replace it.

Feel free to contact us via chat, comment you already have a post, copy the link from the post (URL) and paste it into the chat to start unit replacement.



The below link is to contact us by chat (only)

https://support.ruckuswireless.com/contact-us



 Best regards,

Jayavidhya

Lennar Home Community


View solution in original post

8 REPLIES 8

Jayavidhya
Moderator
Moderator

Hi @mbigtoe



Please let us know whether you have configured the Ethernet port addressing on the same Range IP address as the switch ?

Following section :

Now we have all the applications downloaded and the firmware, Let’s configure your Computer’s IP address, this must be statically assigned in order to have connectivity to your switch, remember you have an Ethernet cable from your computer to the Management port in the switch, so we require configure the computer with the same subnet.

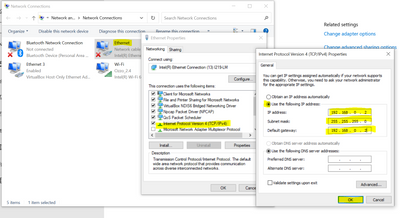

Start>type control panel>View network status and Task>change adapter setting>Ethernet>right click properties>Internet Protocol (TCP/IPv4)>Select Use the following IP address>insert the same information I have>Click OK

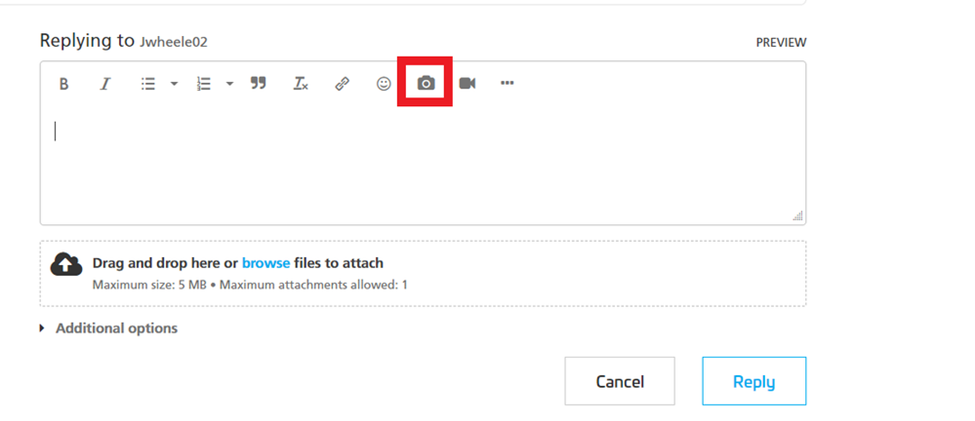

Please provide an image/photo where you are trying to connect via console / Ethernet  from ICX 7150 - C12 P (USB type C to USB ) to PC. Before uploading the photos please login to the RUCKUS account and you can upload the image.




Best regards,

Jayavidhya

Lennar Home Community


I'm out of town right now, but will do this when I get back home.  Thanks!

Hi @mbigtoe



Please follow the troubleshooting steps and let us know if you are facing any issues.



Best regards,

Jayavidhya

Lennar Home Community




Hi @mbigtoe



Please follow to below steps in order to fix this issue:

  1. Please try to disconnect from the Power outlet the ICX-7150 and reconnected.
  2. Please try to press the reset button using a paper click or a small stick
  3. Remove power from the switch.
  4. Press and hold the Reset button while applying power to the switch.
  5. After all the system LEDs flash amber, release the Reset button.

Below is the Guide and Videos link for your reference:

https://docs.commscope.com/bundle/icx7150-installguide/page/GUID-D3B5DB74-53A7-4F8D-82F9-6EB600879EE...

Video link: https://www.youtube.com/watch?v=6jHMTdo_hK4



Best regards,

Jayavidhya

Lennar Home Community
