Ruckus switch not working (i think)

[relingburg]

i have a lennar home, a ruckus switch, 2 APs, and for a week now, we have not been able to get a connection through the switch. lights are on on the APs, the network shows up but once connected, you're offline. it makes no sense. i have no idea what to do, ruckus will not help me, and i need my internet in order to get my job done. as another user said, the "instructions" provided here are way over my head, i think it's ridiculous that it's taking me this long to get the issue resolved, and i still see no end in sight. can anyone help me?

[Vásquez_Fer]

Hi @relingburg

Hope you are doing well !

1-Please make sure you have internet service from your internet provider is up from your local router.

2-Make sure the connections are good I will leave a short guide :

Most common Setups for Lennar homes users

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/Most-common-Setups-for-Lenna...

3-Was there any power outage or power spike at your home?

Best Regards

Fernando Vasquez

[relingburg]

1-yes i have internet service from my internet provider and i assume it's coming from my router.

2-connection is good on one network but not the one connected to the ruckus switch (i believe)

3-it has been an issue since last week thursday when many others had internet issues in our area

i clicked the link, i see how it's set up, i just need it to work 😞

[Vásquez_Fer]

HI @relingburg

If there was a blackout or power outage and the switch reboot because of that, most possible your switch starts running the wrong code which we call ‘routing code’ this is a know issue.

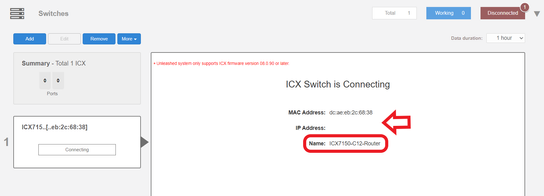

An identifier of this problem is that it comes out as Switch-Router in the unleashed dashboard.

There we are going to see 2 important things the

MAC address: Physical address of the device this never changes

The IP address is a logical address assigned by your local router (ISP) to the device (this can change and may not be the same as the one shown on the dashboard)

1- To fix this issue, we must identify the IP address of the switch 'currently'

-We can try the IP address that shows in the dashboard copy and paste it in the URL if that redirects you to the login page for the ICX-7150-C12P that is the correct one if not.

I will leave you a guide how to perform an IP scanner on your local network to identify the switch IP address very easily.

How to find my Ruckus “Devices IP address” using free applications

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-find-my-Ruckus-Device...

2-Once we identified the IP address of the switch proceed to access remote to the device 'command Line'

How to remotely access to 'ICX 7150-12P' or 'access points' "Network devices"

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-remotely-access-to-IC...

If you can access to the Command line should look like this:

ICX7150-C12 Router>

3-Here is a quick guide to understand how to fix the 'routing code issue' but basically you need only need to run the following commands once you are on the command line 'CLI'

Note: Hit Enter to accept each command

enable

copy flash flash secondary

boot system flash secondary yes

example:

ICX7150-24P Router>enable (hit enter to accept the command)
ICX7150-24P Router#copy flash flash secondary (hit enter to accept the command and wait: until the flash finished )
ICX7150-24P Router#boot system flash secondary yes ( hit enter to accept the command  : the switch will reboot )

How to Fix Routing code issues on Lennar Home users

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-Fix-Routing-code-issu...

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-solve-the-routing-cod...

4-If the access via IP address is not possible here is a guide how to access to the Switch via console (cable access between your PC to the ICX 7150-C12P) in this case we need a USB type C to USB standard or Console cable Rj45 to USB.

How to console in the ICX-7150-C12P

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-console-in-the-ICX-71...

Once you are log in the ICX-7150-C12P please follow up the same steps that are on point '3'

Best Regards

Fernando Vasquez

[relingburg]

i have tried several times to get to this "dashboard," and i am unable. please help me navigate to the dashboard. i can get on the dashboard on my app, but it doesn't look like the image above and i have not been able to follow the steps provided through the app.
