relle444 · ‎02-04-2026

I am unable to connect to my Ruckas AP as of today. Everything has been working fine for a long time.

I am able to connect directly to my Cox modem both hard wired and wirelessly.

After a number of reboots and restarts, I'm getting the same results. The 4 lights on my AP are solid green.

When I try to connect to my Lennar network wirelessly, I either get "connection failed" or "connected without internet"

Here are photos of my switch and AP.

Any suggestions on how to get things working again are much appreciated.

Thanks,

relle444 · ‎02-04-2026

Here is more of what you asked for:

show flash and show inline power

SSH@ICX7150-C12-Switch#show flash

Stack unit 1:

NAND Type: Micron NAND 2GiB (x 1)

Compressed Pri Code size = 29360128, Version:08.0.90jT211 (SPS08090j.bin)

Compressed Sec Code size = 33554432, Version:08.0.90jT213 (SPR08090j.bin)

Compressed Pri Boot Code size = 786944, Version:10.1.18T225 (mnz10118)

Compressed Sec Boot Code size = 786944, Version:10.1.18T225 (mnz10118)

Code Flash Free Space = 1260429312

SSH@ICX7150-C12-Switch#show inline powerr

Invalid input -> powerr

Type ? for a list

SSH@ICX7150-C12-Switch#show inline power

Power Capacity: Total is 124000 mWatts. Current Free is 108600 mWatts.

Power Allocations: Requests Honored 13 times

Port Admin Oper ---Power(mWatts)--- PD Type PD Class Pri Fault/

State State Consumed Allocated Error

--------------------------------------------------------------------------

1/1/1 On Non-PD 0 0 n/a n/a 3 n/a

1/1/2 On Non-PD 0 0 n/a n/a 3 n/a

1/1/3 On Off 0 0 n/a n/a 3 n/a

1/1/4 On Off 0 0 n/a n/a 3 n/a

1/1/5 On On 3300 15400 802.3af Class 3 3 n/a

1/1/6 On Off 0 0 n/a n/a 3 n/a

1/1/7 On Non-PD 0 0 n/a n/a 3 n/a

1/1/8 On Off 0 0 n/a n/a 3 n/a

1/1/9 On Non-PD 0 0 n/a n/a 3 n/a

1/1/10 On Off 0 0 n/a n/a 3 n/a

1/1/11 On Non-PD 0 0 n/a n/a 3 n/a

1/1/12 On Non-PD 0 0 n/a n/a 3 n/a

--------------------------------------------------------------------------

Total 3300 15400

SSH@ICX7150-C12-Switch#

relle444 · ‎02-04-2026

Here is more of the information you requested on:

show flash, show inline power, show interface brief and show lldp neighbors detail

login as: admin
Keyboard-interactive authentication prompts from server:
| Password:
End of keyboard-interactive prompts from server
SSH@ICX7150-C12-Switch>show flash
Stack unit 1:
NAND Type: Micron NAND 2GiB (x 1)
Compressed Pri Code size = 29360128, Version:08.0.90jT211 (SPS08090j.bin)
Compressed Sec Code size = 33554432, Version:08.0.90jT213 (SPR08090j.bin)
Compressed Pri Boot Code size = 786944, Version:10.1.18T225 (mnz10118)
Compressed Sec Boot Code size = 786944, Version:10.1.18T225 (mnz10118)
Code Flash Free Space = 1260429312
SSH@ICX7150-C12-Switch>show inline power

Power Capacity: Total is 124000 mWatts. Current Free is 108600 mWatts.

Power Allocations: Requests Honored 13 times

Port Admin Oper ---Power(mWatts)--- PD Type PD Class Pri Fault/
State State Consumed Allocated Error
--------------------------------------------------------------------------
1/1/1 On Non-PD 0 0 n/a n/a 3 n/a
1/1/2 On Non-PD 0 0 n/a n/a 3 n/a
1/1/3 On Off 0 0 n/a n/a 3 n/a
1/1/4 On Off 0 0 n/a n/a 3 n/a
1/1/5 On On 3400 15400 802.3af Class 3 3 n/a
1/1/6 On Off 0 0 n/a n/a 3 n/a
1/1/7 On Non-PD 0 0 n/a n/a 3 n/a
1/1/8 On Off 0 0 n/a n/a 3 n/a
1/1/9 On Non-PD 0 0 n/a n/a 3 n/a
1/1/10 On Off 0 0 n/a n/a 3 n/a
1/1/11 On Non-PD 0 0 n/a n/a 3 n/a
1/1/12 On Non-PD 0 0 n/a n/a 3 n/a
--------------------------------------------------------------------------
Total 3400 15400

SSH@ICX7150-C12-Switch>show interface brief

Port Link State Dupl Speed Trunk Tag Pvid Pri MAC Name
1/1/1 Up Forward Full 1G None No 1 0 70ca.9722.a39e
1/1/2 Up Forward Full 1G None No 1 0 70ca.9722.a39f
1/1/3 Down None None None None No 1 0 70ca.9722.a3a0
1/1/4 Down None None None None No 1 0 70ca.9722.a3a1
1/1/5 Up Forward Full 1G None No 1 0 70ca.9722.a3a2
1/1/6 Down None None None None No 1 0 70ca.9722.a3a3
1/1/7 Up Forward Full 100M None No 1 0 70ca.9722.a3a4
1/1/8 Down None None None None No 1 0 70ca.9722.a3a5
1/1/9 Up Forward Full 1G None No 1 0 70ca.9722.a3a6
1/1/10 Down None None None None No 1 0 70ca.9722.a3a7
1/1/11 Up Forward Full 1G None No 1 0 70ca.9722.a3a8
1/1/12 Up Forward Half 10M None No 1 0 70ca.9722.a3a9
1/2/1 Down None None None None No 1 0 70ca.9722.a3ab
1/2/2 Down None None None None No 1 0 70ca.9722.a3ac
1/3/1 Down None None None None No 1 0 70ca.9722.a3ad
1/3/2 Down None None None None No 1 0 70ca.9722.a3ae
mgmt1 Down None None None None No None 0 70ca.9722.a39e
SSH@ICX7150-C12-Switch>show llpd neighbors detail
Invalid input -> llpd neighbors detail
Type ? for a list
SSH@ICX7150-C12-Switch>show lldp neighbors detail
Local port: 1/1/5
Neighbor: 3420.e316.2b00, TTL 95 seconds
+ Chassis ID (MAC address): 3420.e316.2b00
+ Port ID (MAC address): 3420.e316.2b00
+ Time to live: 120 seconds
+ System name : "RuckusAP"
+ System description : "Ruckus R510 Multimedia Hotzone Wireless AP/SW Ver\
sion: 200.9.10.4.212"
+ System capabilities : bridge, WLAN access point, router
Enabled capabilities: bridge, WLAN access point
+ Management address (IPv4): 192.168.0.34
+ Port description : "eth0"
+ Link aggregation: capable, but not aggregated
+ 802.3 MAC/PHY : auto-negotiation enabled
Advertised capabilities: 10BaseT-HD, 10BaseT-FD, 100BaseTX-HD,
100BaseTX-FD, fdxPause, fdxAPause, 1000BaseT-FD
Operational MAU type : 1000BaseT-FD

Local port: 1/1/9
Neighbor: 1803.7330.1847, TTL 3478 seconds
+ Chassis ID (MAC address): 1803.7330.1847
+ Port ID (MAC address): 1803.7330.1847
+ Time to live: 3601 seconds
+ 802.3 MAC/PHY : auto-negotiation enabled
Advertised capabilities: 1000BaseT-FD
Operational MAU type : Other
+ MED capabilities: capabilities
MED device type : Endpoint Class I

SSH@ICX7150-C12-Switch>

pinky_ruckus · ‎02-05-2026

Hello @relle444 ,

Thank you for the response.

From the response you shared, I understand that the cable connections and light status looks normal.

I would request you to please create a new Wifi-network using the below mentioned article:

https://community.ruckuswireless.com/t5/RUCKUS-Lennar-Support-Knowledge/Guidelines-on-creating-a-Wir...

Please follow the article and let me know if you are able to connect to the RUCKUS Wifi network.

Thank you again for your patience and understanding.

Best regards,

Pinky Rajendran

RUCKUS Lennar Home Community.

relle444 · ‎02-06-2026

Pinky,

Thank for your support.

I have reset the AP according to the instructions. Actually, I have done it atleast 3 times.

I have been able to get it to show a new wireless network of Configure.Me-XXXXXX

Then when I go to the Ruckus Unleashed App on my mobile phone, I am not able to complete the setup.

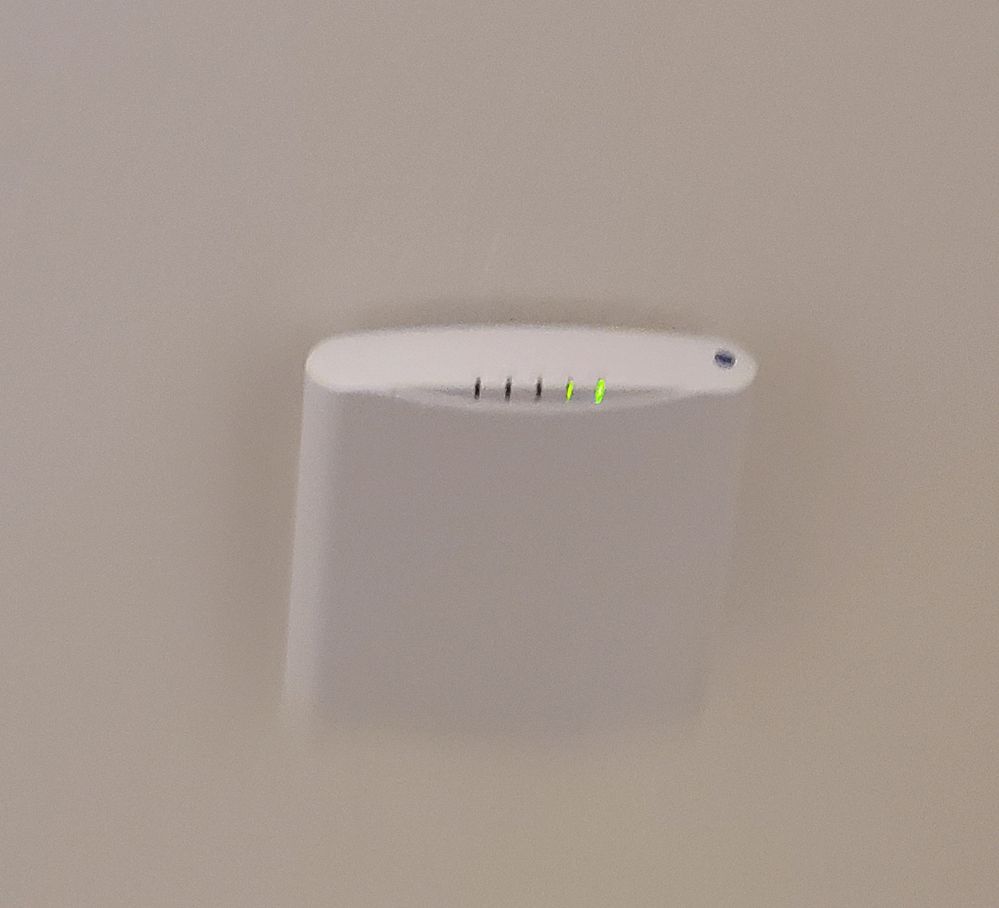

After the reboot, only 2 of the 4 lights are lighting up on the AP unit.

Also, when I connect to the Configure.Me-XXXX wireless network using my mobile device, I get "Connected without internet/ Not secured"

It appears to me that the factory reset was not completely successful.

Please advise any recommendations that you have.

Thank you, Ron

pinky_ruckus · ‎02-09-2026

Hello @relle444 ,

Thank you for the response.

From the response shared, I understand that you were able to see Configure.me; however, getting error while connecting to Configure.me network.

Also , I understand that you are trying to connect to the Internet using the Unleashed app.

I would request you to please complete the setup using web browser and check if you are able to connect through the browser.

I would request you to please refer to the below You tube video in which helps you to complete the setup through Web browser.

Ruckus Unleashed Set-up using Web:https://www.youtube.com/watch?v=j8I5aVwMNMg

Please let us know if you have any queries in this regard.

Thank you for your patience and understanding.

Regards,

Pinky Rajendran

RUCKUS Lennar Home Comunity
