Power tripped and APs does not have any lights and can no longer connect to the network

[Mel27]

I’ve attempted the following but failed:

power on and off

scan for IP, no IP associated ruckus

physically connect

[Jayavidhya]

Hi @Mel27

Thanks for your response,

Based on the information you have shared it seems like the PoE is in OFF/ disabled state as a result of which you were unable to get the ports working.

To enable the PoE on the switch please perform the below commands from the CLI.

Switch>enable
No password has been assigned yet...
Switch#configure terminal
Switch(config)#interface ethernet 1/1/1 to 1/1/12
Switch(config-mif-1/1/1-1/1/12)#inline power

Once you perform the above process all ports should be On, and APs should get the power.

Please let us know if you have any queries in this regard.

Best regards,

Jayavidhya

Lennar Home Community

[Mel27]

Hi Jayavidhya,

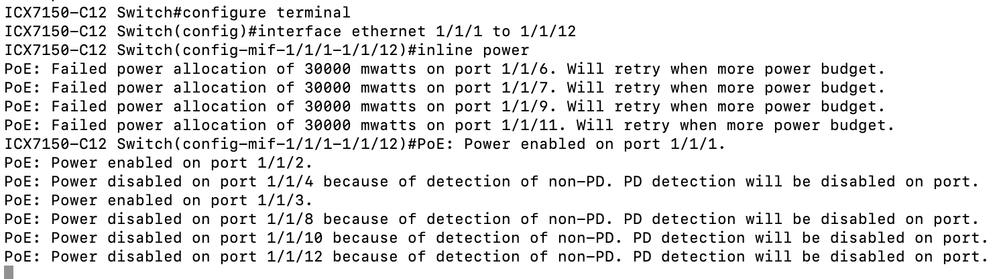

Here is the following results after performing the commands, please advise how to proceed

[Mel27]

 

[Mel27]

[Mel27]

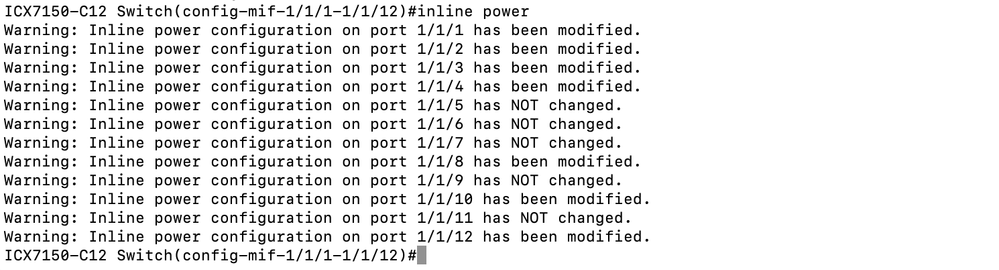

I ran it again and got the following, now I see the network, thank you!!
