My Smart home system is not working such as no doorbell

[Ariel2023]

My Smart home system is not working such as no doorbell (ring) but Ruckus unit has green lights. I need help please. thank you

[Dar]

 

 

[Sgatjens]

hi @Dar

Would you kindly relocate the cable from port #4 to any available empty port?

What was the result? After relocating the cable could you please share with me again the commands show inline power and show inline power detail?

Additionally, please access the CLI, and execute the following commands and provide the resulting output:

(Note: Press Enter after each command)

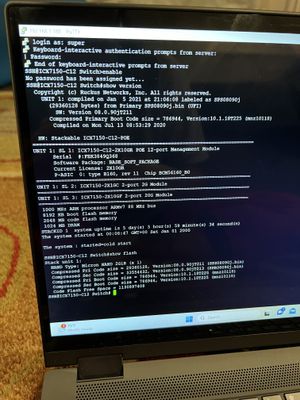

ICX7150-C12 Switch>enable
ICX7150-C12 Switch#show version
ICX7150-C12 Switch#show flash

Copy and paste the results on the chat (here)


Kind regards,

Sofia Gätjens

[Dar]

 

[Sgatjens]

hi @Dar

Thank you for the information.

Did you follow the 1st step suggested? If not, could you please try?

--->> Would you kindly relocate the cable from port #4 to any available empty port?

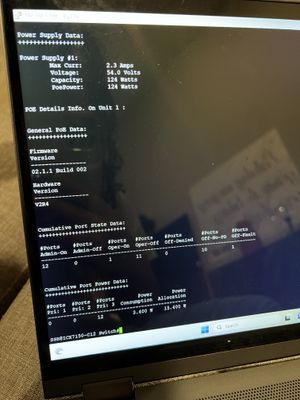

What was the result? After relocating the cable could you please share with me again the commands show inline power and show inline power detail?

Copy and paste the results on the chat (here)


Kind regards,

Sofia Gätjens

[Dar]

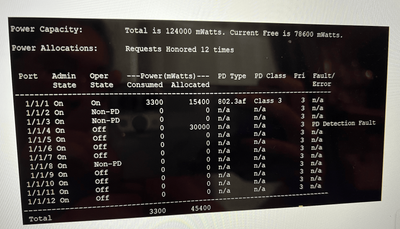

Here's the new results after relocating the cable from port #4
