My ICX 7150 switch that came with my Lennar Home is stuck in boot mode after a power outage. I have an iMac computer and have followed the instructions for a reinstalling the drivers and software. When connected to the computer via USB to C cord and ethernet cable it does not even detect my ruckus switch. My unit is completely bricked and unresponsive. Please advise for further steps to resolve issue. Thanks.
We cannot replace the chassis until you confirm that the hardware is damaged. We have tried to create the guides as non-technical as possible, so that they are not difficult to follow; however, if you continue to have difficulty following the steps, I would recommend that you seek outside help or a technician.
Note: after fixing the issue of the Switch been stuck in boot mode, please perform an upgrade to the code 08095g UFI and upgrade both partitions with the switching code file named SPS08095gufi.bin, so perform the software recovery using the code 08090k with the upgrade image file named SPS08090k.bin, then when the switch is back to normal upgrade to the file SPS08095gufi.bin for both partitions primary and secondary.
1.Upgrade a Switch ICX-7150-C12P using a USB flash drive

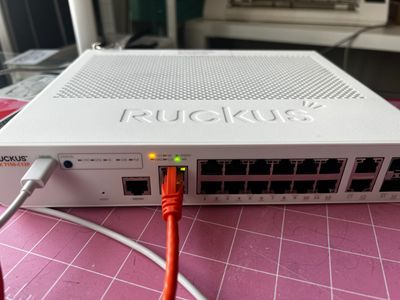

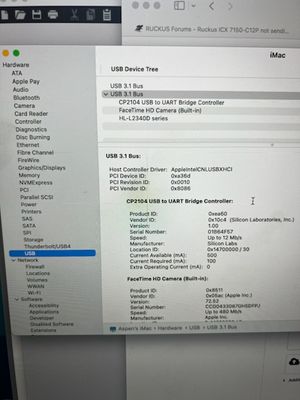

I have tried your instructions and my computer doesn’t even detect the Switch. I have uploaded pics to this thread showing the hookup to my iMac and the ruckus switch. I have a pretty good knowledge of computers and this is pretty frustrating.
I have correctly connected the switch to my computer and it is non responsive and the computer does not detect it. I have provided pictures on this thread to show my connection. I unfortunately can not complete a software recovery because the switch is completely non responsive. Please advise for further steps to resolve issue. Thank you.
