Thank you for the response and the detailed information you shared.
This issue is because your switch is running on the Routing code (SPR). The Switch should run on the Switching code (SPS) to avoid these issues for Lennar home users. Due to a power outage/power spike, the Switch boots up on the other partition which may be running on a ‘Routing Code’ results in causing this issue.
As I can see from the output you shared, your Switch is booted up on the secondary partition which is running on Routing code (SPR) as highlighted in the below screenshot.
Please Enter the below commands in CLI to fix this issue:
ICX7150-24P Router>enable (hit enter to accept the command) ICX7150-24P Router#copy flash flash secondary (hit enter to accept the command and wait: until the flash finished) ICX7150-24P Router#boot system flash secondary yes (hit enter to accept the command: the switch will reboot)
We suggest upgrading your switch to the latest stable version to avoid this issue in the future. Your Switch is on an older version that is 08080d. Please let us know once you complete the above process to assist you with the Upgrade of the Switch.
Please let me know if you have any queries in this regard.
NOTE: Please feel free to mark the post as ACCEPTED SOLUTIONS.
Thank you again for your patience and understanding.

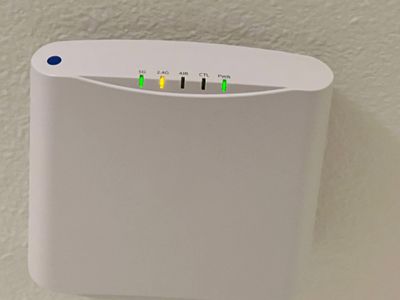

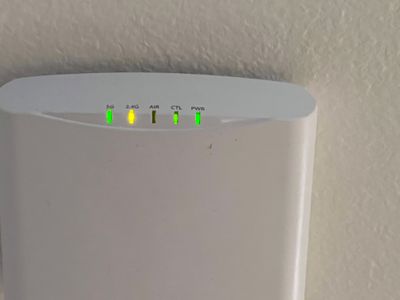

i am using two RUCKUS R510 Series and downstairs and one upstairs. I tried to update software using RUCKUS online portal after having internet connectivity issue. The update didn’t happen properly. Now while i tried to login it says my account is locked.
