Mjxyoit · ‎04-28-2023

Hello, We Bought a new construction Lennar Duplex in 2019. We have two r510 Ruckus units with the firmware updated. Yet, as of a few days ago we get a heartbeat loss every 12 hours like clockwork. This morning, they wouldn't output anything. We thought the internet was out. However, anything using the ATT modem or ether port had internet and everything on Ruckus Wi-fi or ether port was dead. myAT&T app messages said my modem was rejecting the routers. I reset the modem and they work, for now. I booked a service appointment for Monday from ATT. I'm not even sure if ATT will be able to help.

The thing is, I'm reading through the forums and have no idea what is being said. I don't know the lingo. Everything is very cryptic. I desperately need a resolution. With work and school internet is akin to water in our lives.

Imran_ruckus · ‎05-03-2023

Hi @Mjxyoit

Thank you for the information and update.

All the connections on the Switch seem good.

I believe you have 2 R510 Access Points on ports 1/1/3 and 1/1/5 (As marked in the below screenshot) on your Switch as per the ‘show lldp neighbors detail’ command output.

The connections are correct, now we may need to factory reset the APs. Please follow the below process to factory reset your APs to configure them with a new SSID.

IMPORTANT NOTE: To perform a factory reset correctly on one of the access points, you must disconnect the rest of your other access points from the "ICX-7150-switch". For example, if you have 3 access points, you should go to the switch and disconnect 2 of the cables to turn off the "2 access points" and only leave 1 connected with which we are going to work the factory reset once you configure the access point and make sure all is good, go ahead and reconnect the other Access Points back.

In your case remove one of the 2 orange cables as shown in the above screenshot and perform a factory reset on your Access Point once the factory reset is done, please plug it back.

Physical Factory Reset of RUCKUS Access Point:

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/Physical-Factory-Reset-an-Ac...

Ruckus Unleashed Set-up using your Mobile:

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/Ruckus-Unleashed-Set-up-usin...

Ruckus Unleashed Set-up using Web:

https://www.youtube.com/watch?v=j8I5aVwMNMg

Password recovery setup:

https://www.youtube.com/watch?v=sqnG8fupaLk

Please let me know if you have any queries in this regard.

Thank you again for your patience.

Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

View solution in original post

Imran_ruckus · ‎05-03-2023

Hi @Mjxyoit

Thank you for the response and the information you shared.

Could you please share the output of the below commands

enable

show flash

show inline power
show interface brief

Thank you again for your patience.

Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

Mjxyoit · ‎05-03-2023

of course, here you go.

Imran_ruckus · ‎05-03-2023

Hi @Mjxyoit

Thank you for the response and the information you shared.

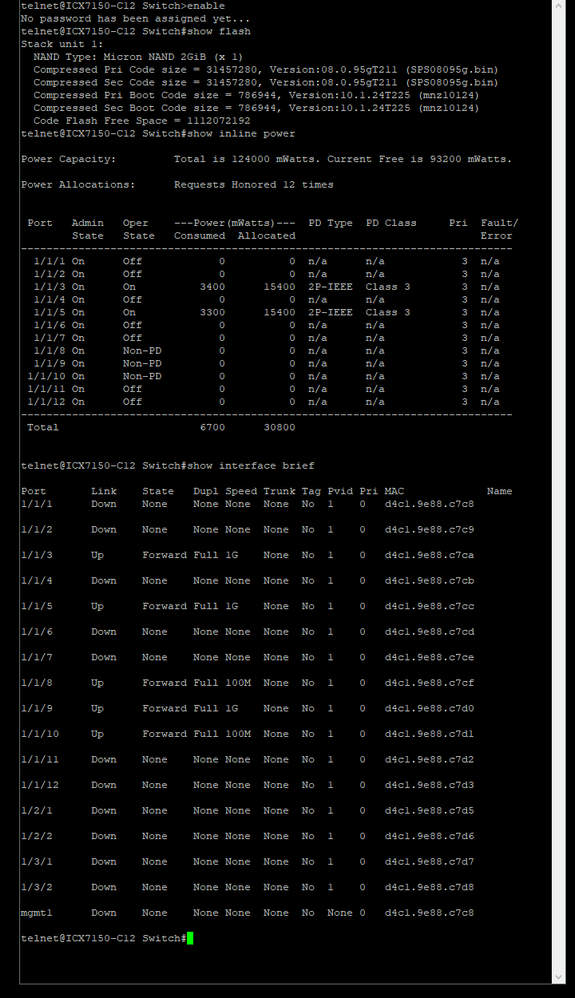

Great!!! now your Switch is upgraded to 08095g on both the partitions (primary and secondary). (Please refer to the below screenshot)

May I know which devices are connected to ports 1/1/8 and 1/1/10 since these ports are only able to transmit 100Mbps of speed? (Please refer to the below screenshot)

Please check and confirm the devices connected to these 2 ports.

Thank you again for your patience.

Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

Mjxyoit · ‎05-03-2023

Thank you good to know that section was finally done correctly.

I used the Advanced IP Scanner to find a matching MAC address. However, there is none. The closest MAC address is the switch itself, when I expand the switch status inside the Advanced IP Scanner app all that shows up is "HTTP, Web Management Login (Allegro RomPager 5,40).

I do not know how to check what you're asking with ports 1/1/8 and 1/1/10.

Imran_ruckus · ‎05-03-2023

Hi @Mjxyoit

Thank you for the response.

Please enter the below commands to check what is connected to those 2 ports. (Please refer to the below screenshot)

enable

show lldp neighbors detail

Please check and share a screenshot of the same.

Thank you again for your patience.

Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.
