What are the functions of the logical interfaces of the Smart Zone High Scale controller?

cecil_dsilvia
Internal Employee

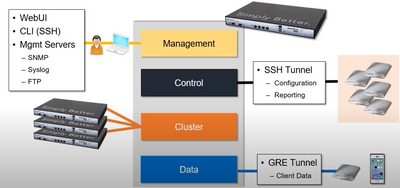

The logical interfaces of the Smart Zone are Management, Control, Cluster, and Data. Each can have its own IP address and MAC address.


Management:

  • Used to access the Web Interface of the controller
  • Can be used to SSH into the controller using admin credentials
  • Can be used to push/pull Syslog/SNMP
  • Can be used to push/pull files using FTP

Control:

  • Used by access points and switches to pull/push configuration
  • Used by access points/switches/external data plane to push and pull client data

Cluster:

  • Used by the controller on a single IP address to communicate with its cluster peer

Data:

  • Used by the access points to tunnel client traffic back to the data plane controller
  • Only found on the hardware SZ appliance
Cecil D'silva
Sr. Technical Support Engineer Ruckus WLAN
