ruckus not working

[Patel013]

I live in a smart home that was equipped with a ruckus system with two Access Points one on first floor and one on the second floor.

The access point is located on the ceilings and wired to the ruckus. None of the access points have any light on.

[pinky_ruckus]

Hi @Patel013 ,

Greetings!!!

Thank you for contacting RUCKUS Lennar Home Community.

I hope you are doing well!!!

Thank you for the information you shared.

As per the case description, I understand that your Ruckus Access points are not turning on.

Could you please let us know the answers to the below queries to assist you better?

1)  Was there any power outage before you started facing this issue?

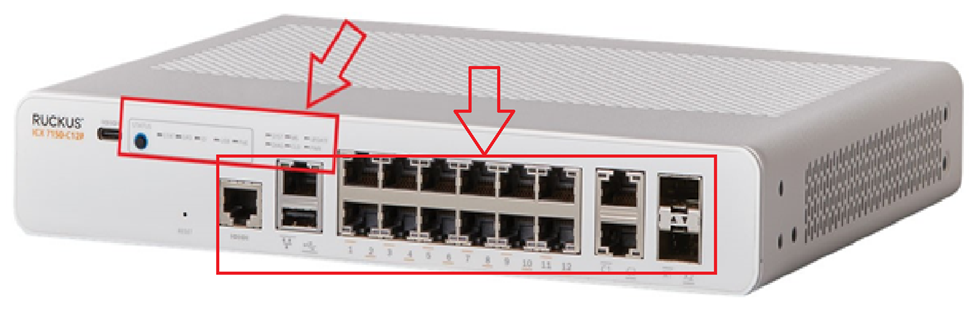

2)    On your switch while it's plugged into the outlet, do you see any lights on? (Amber or green) Please let us know which lights are on. (Please refer to the below picture and share a picture of the same, showing the light status and the FULL Switch panel cable connections to the Switch ports)

Please help us with pictures of your ICX-7150-C12P Switch showing the status of the lights and cable connections to the Switch ports.

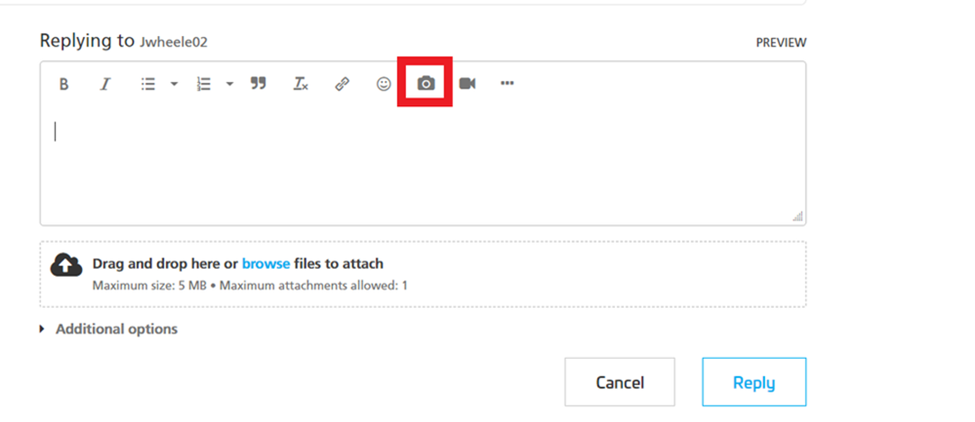

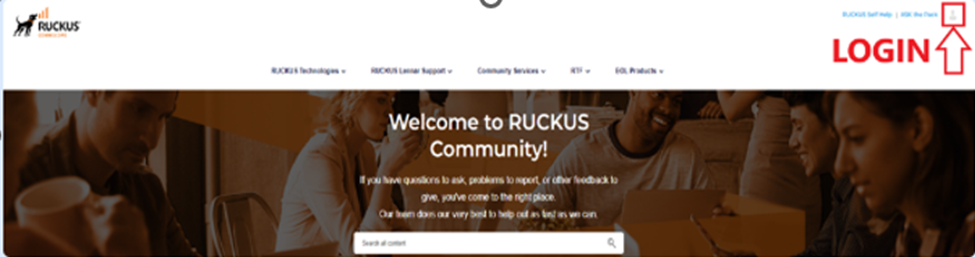

Before uploading the photos please log in to the RUCKUS account and you can upload the image.

Please let us know the answers to ALL the above queries or let us know if you have any queries in this regard.

Thank you again for your patience.

Best regards,

Pinky Rajendran

RUCKUS Lennar Home Community.

[Patel013]

1. We didn't have any outage.

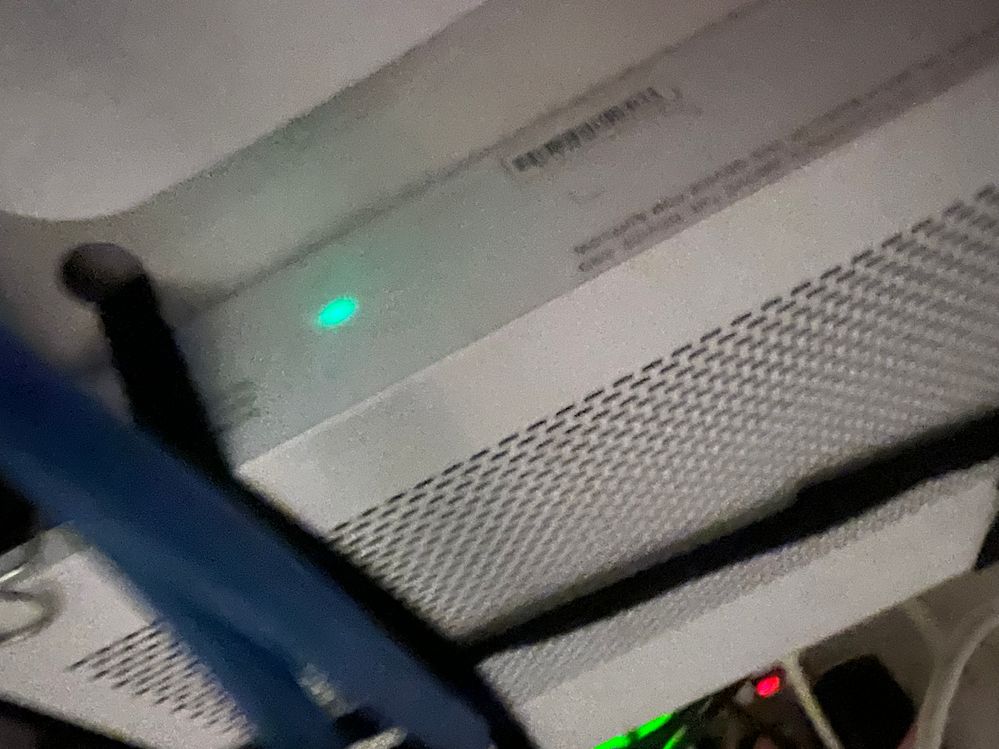

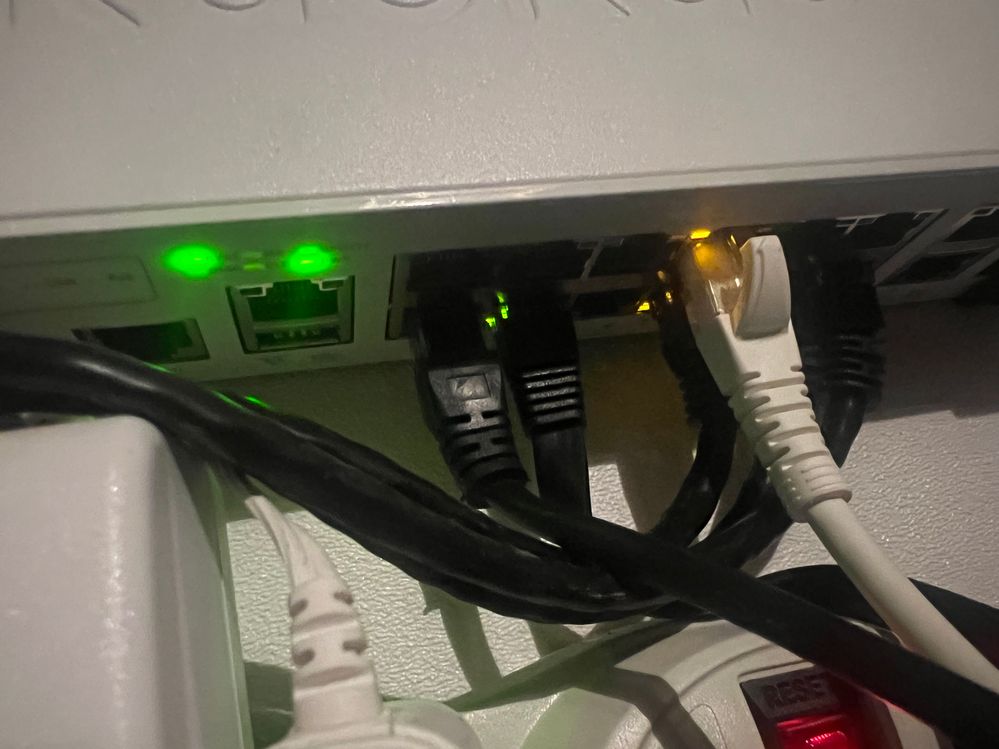

2.

[pinky_ruckus]

Hello,

Thank you for the response.

Based on the information provided, we may need to check some configurations of your RUCKUS ICX-7150-C12P Switch to troubleshoot this issue.

To proceed with troubleshooting the issue, please follow the steps outlined below to access the Command Line Interface (CLI) and provide the necessary command outputs:

1. First, identify the current IP address assigned to the switch ICX-7150-C12P by your local router. You can use an IP scanner tool to easily locate the switch's IP address on your network. Here is a guide on how to perform this using IP Scanner free applications:

https://community.ruckuswireless.com/t5/RUCKUS-Lennar-Support-Knowledge/How-to-find-the-IP-Address-o...

2. Once you have identified the IP address of the switch, proceed to access the Command Line Interface (CLI) of the RUCKUS ICX-7150-C12P switch. Here is a guide on how to access the CLI:

https://community.ruckuswireless.com/t5/RUCKUS-Lennar-Support-Knowledge/How-to-access-the-Command-Li...

If you can access the Command line the prompt should look like below:

ICX7150-C12 Router> OR

ICX7150-C12 Switch>

3. After successfully accessing the CLI, please execute the following commands and provide the outputs:

  enable

 show version

 show flash

 show inline power

 show inline power detail

Please share the command outputs or screenshots if you encounter any issues or errors during these steps.

Feel free to reach out if you have any questions or require further assistance.

Thank you for your cooperation and patience.

Regards,

Pinky Rajendran

RUCKUS Lennar Home Community

[pinky_ruckus]

Hello @Patel013 ,

Greetings!

This is a follow-up in reference to the case you have opened in the Ruckus Lennar Support Community.

I would like to know if you require further assistance since our last correspondence. Should you have any questions or if the status of your case has changed, please let me know by responding to this post.

Please feel free to contact if you have any further concerns regarding the same.

Best regards,

Pinky Rajendran

RUCKUS Lennar Home Community.
