Description:
If you're using RUCKUS networking equipment in your Lennar Smart Home, such as the RUCKUS ICX-7150-C12P Switch and RUCKUS R510 Unleashed Access Points, you may sometimes need to access these devices for troubleshooting or configuration.
To do this, you’ll first need to know their IP addresses, which are like digital home addresses for your devices on your local network. This guide explains step-by-step how to find the IP addresses using free IP scanner tools, even if you have no technical background.
Applies To:
- Devices:
- RUCKUS ICX-7150-C12P Switch
- RUCKUS R510 Unleashed Access Point
- User Environment:
- Windows PCs
- macOS (Apple) devices
- Android/iOS Mobile devices
- Skill Level:
Beginner: No prior networking knowledge required
Tools You'll Need:
Below are the recommended IP scanner tools based on your device: (Use the provided hyperlinks to download each tool and watch its tutorial video)
|
Platform |
Tool |
Description |
Video Tutorial |
|
Windows |
Simple, portable network scanner |
||
|
macOS |
Free IP scanner available on the Mac App Store |
||
|
Android/iOS |
Mobile app to discover all devices on your network |
Helpful Videos: Refer to video tutorials provided with each tool if you prefer a visual walkthrough.
Steps to Find IP Addresses (Windows Example)

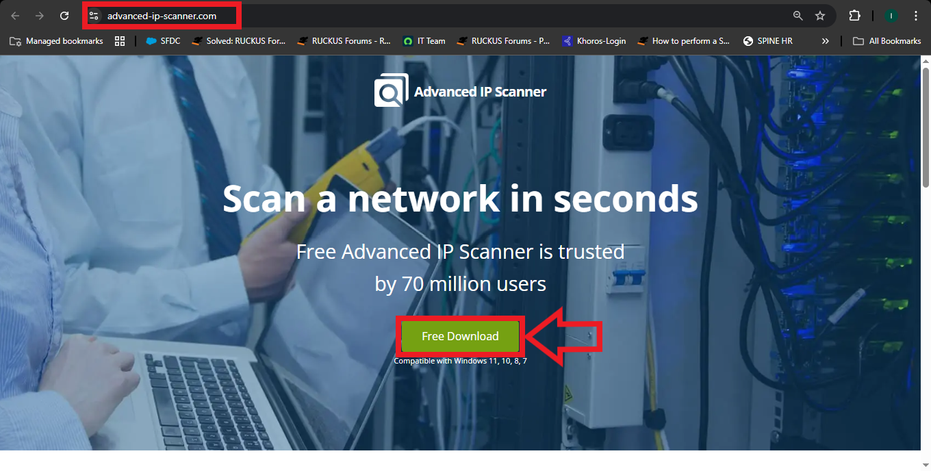

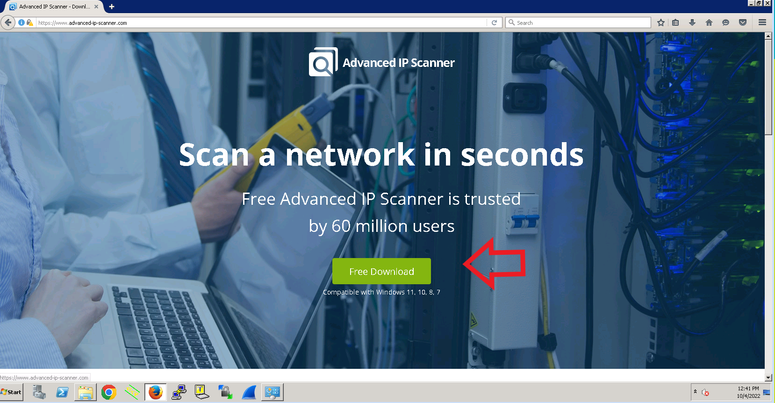

Step 1: Download and Open Advanced IP Scanner
- Download the tool from the official website (refer link above).
- You can run it without installing (portable version) or install it on your computer.
(See Figures 1–3 in the original article for visual guidance)

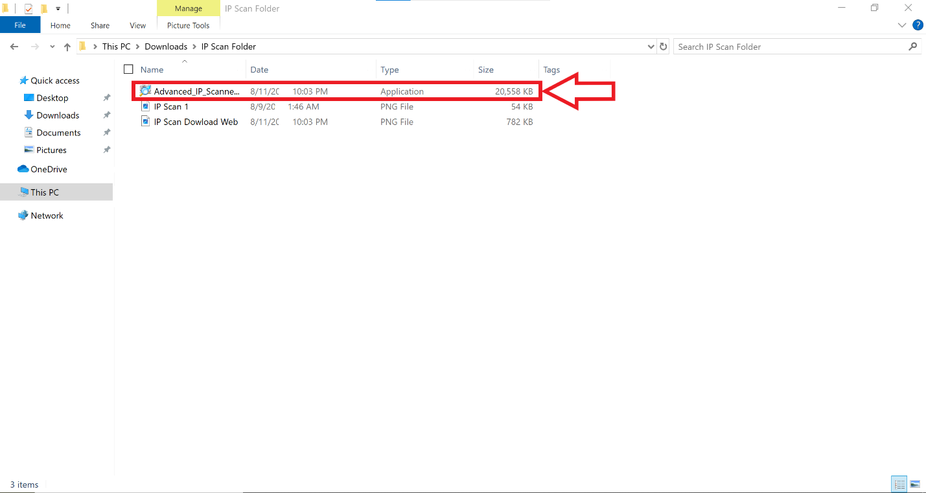

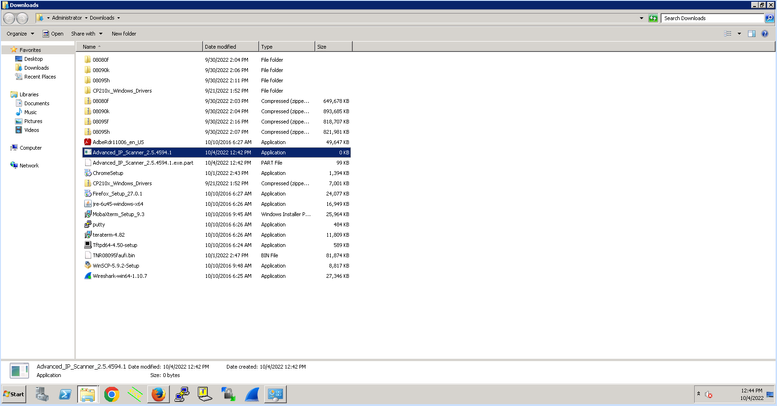

FIGURE 2: Advance IP Scanner application file information

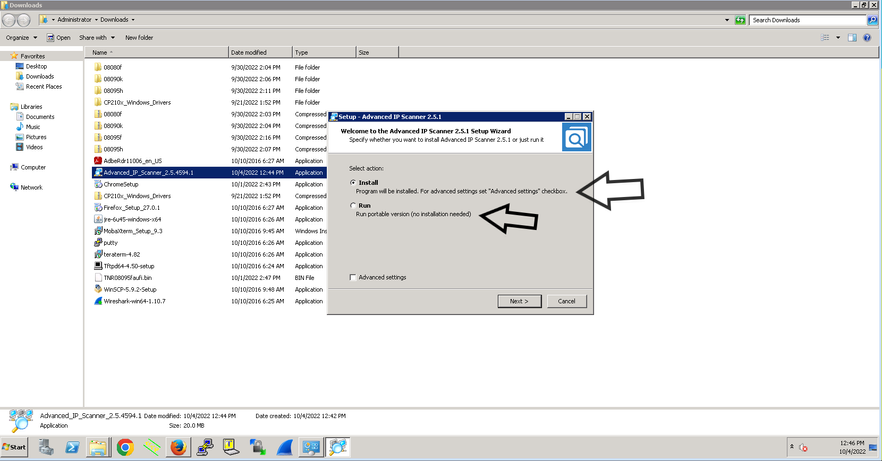

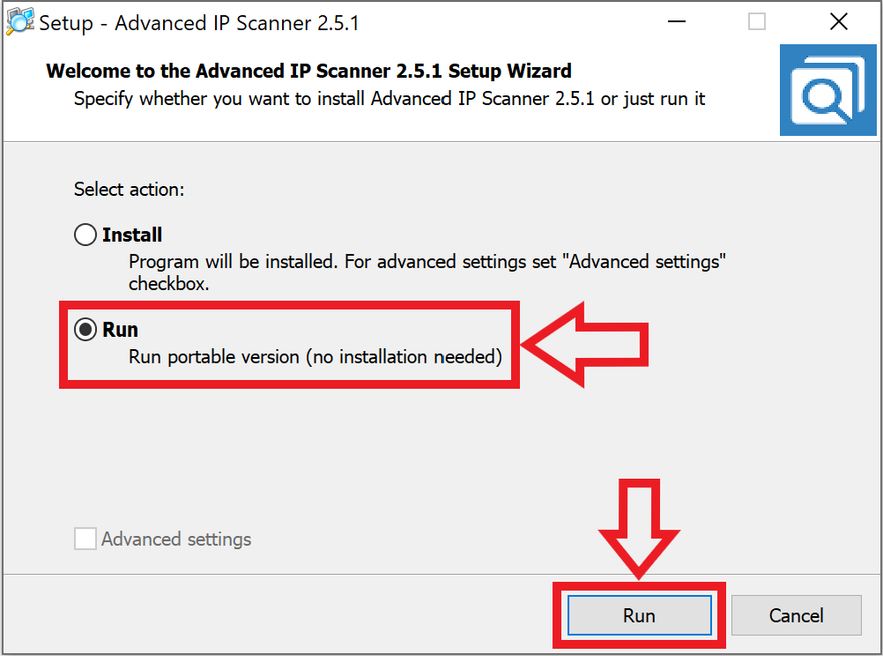

FIGURE 3: Advanced IP Scanner application run information
Step 2: Run a Scan
- Open the application.
- Click on the “Scan” button to let it discover devices on your network.
(Refer to Figure 4)

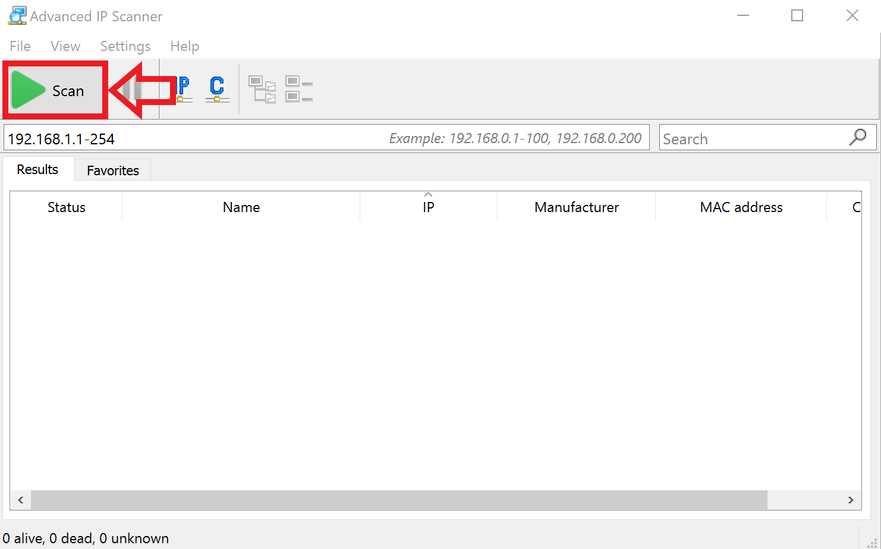

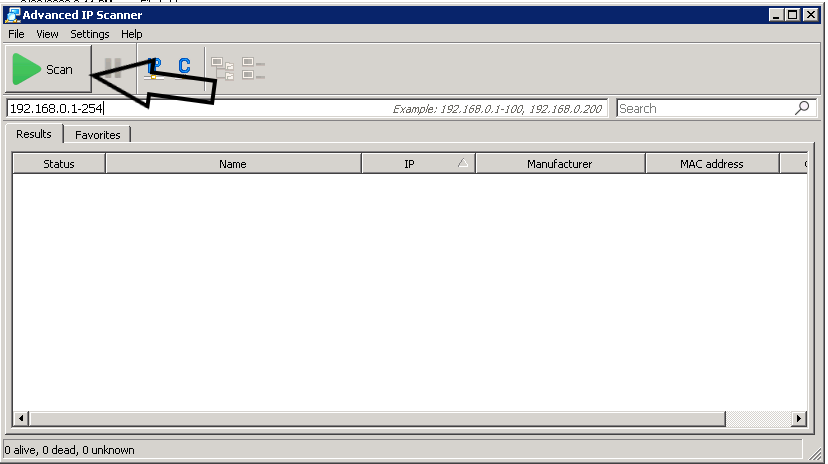

FIGURE 4: Advanced IP Scanner application Scanning initiation information
Step 3: Identify RUCKUS Devices
- Look for device names such as:
- Ruckus Wireless
- Ruckus-Unleashed
- Ruckus ICX-7150
- Brocade Communications (older name for the switch manufacturer)
(See Figure 5)

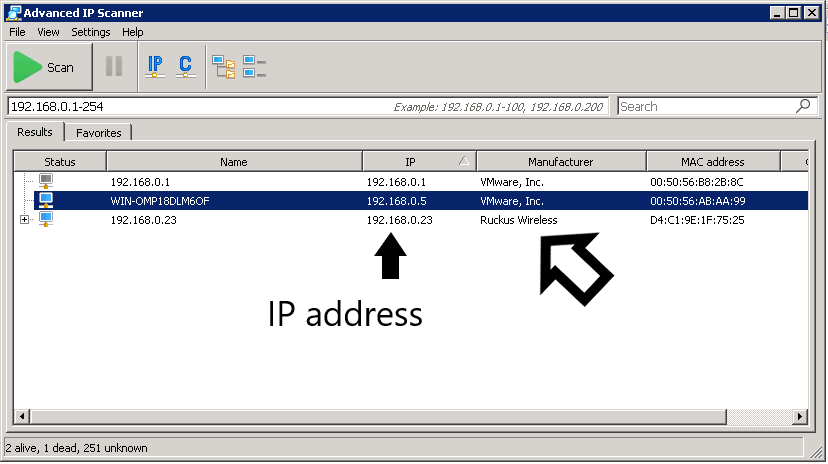

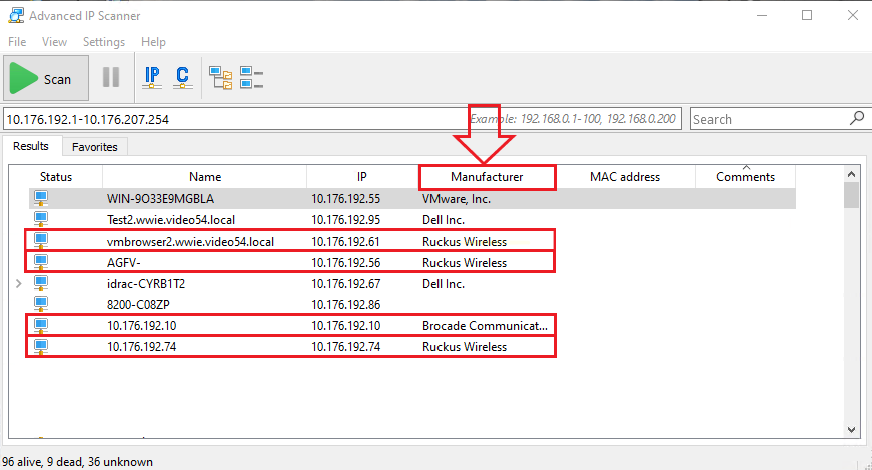

FIGURE 5: Showing RUCKUS device names and IP Addresses
Verify the Correct Device:
For RUCKUS ICX-7150-C12P Switch:
- In the scanner results, find an entry named “Brocade Communications” or “Ruckus ICX-7150”.
- Copy its IP address and paste it in your web browser.
- If it opens a login screen like Figure 6, you've successfully found the switch’s IP address.
- After login, you’ll see the main dashboard like Figure 7.

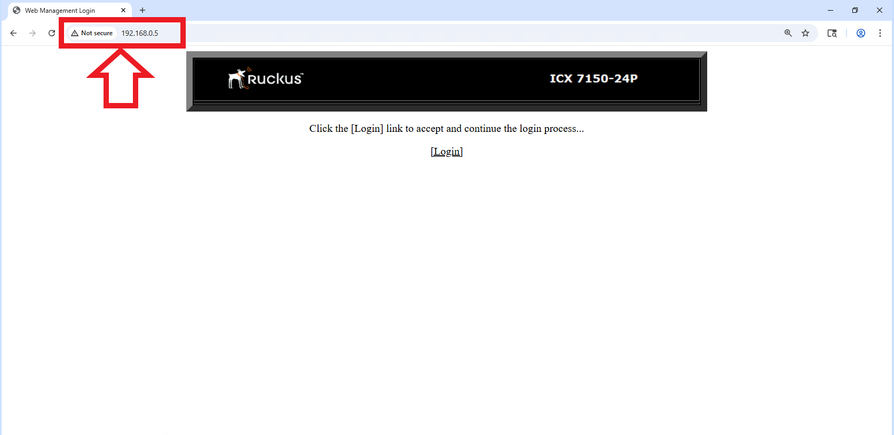

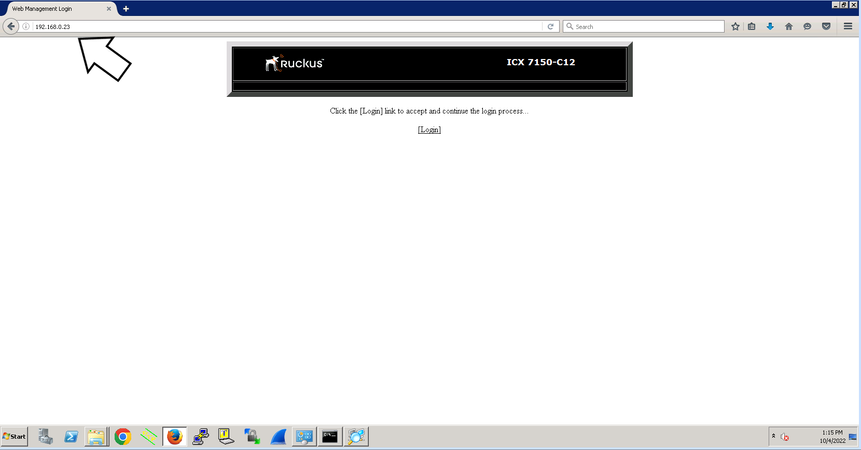

FIGURE 6: Showing RUCKUS ICX-7150-C12P Switch's login dashboard

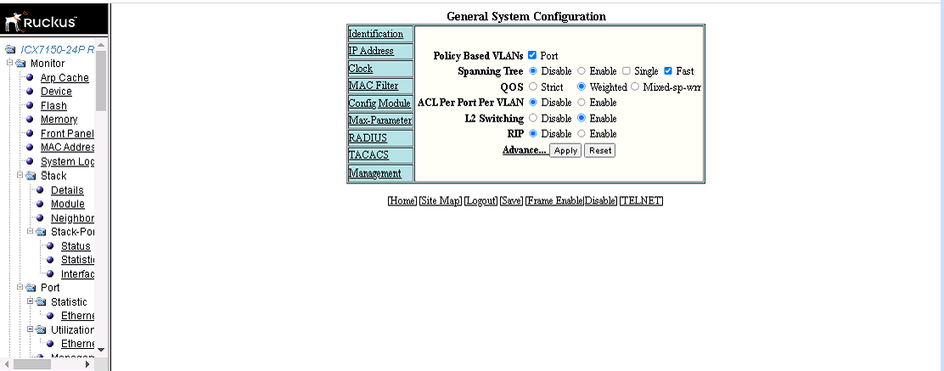

Figure 7: Dashboard view of the RUCKUS ICX-7150-C12P Switch after login
For RUCKUS R510 Access Points:
- Look for entries named “Ruckus-Unleashed” or “Ruckus Wireless”.
- Paste the IP address into your web browser.
- If the page looks like Figure 8, you've located the Access Point.
- After logging in, you’ll see the dashboard similar to Figure 9.

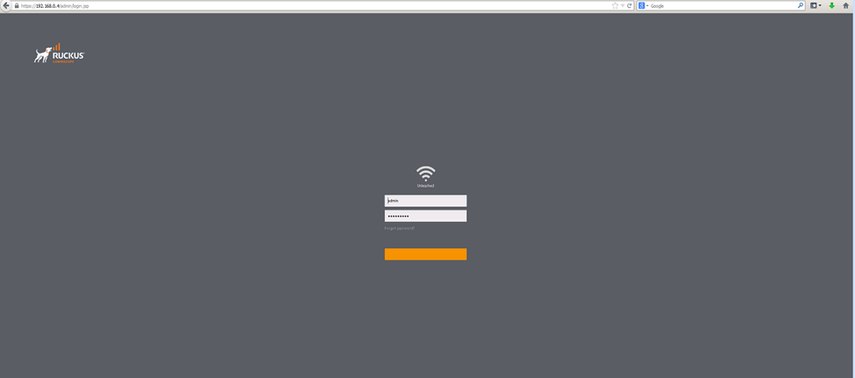

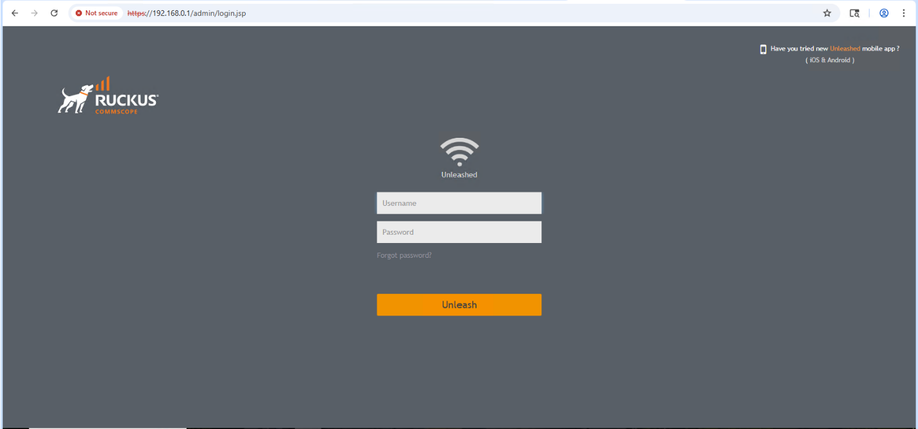

Figure 8: Login dashboard of the RUCKUS Unleashed Access Point

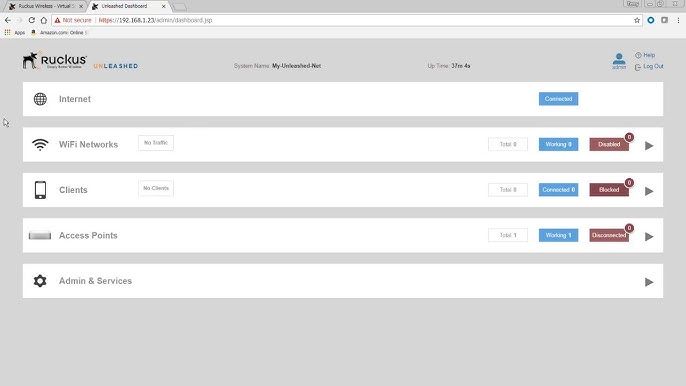

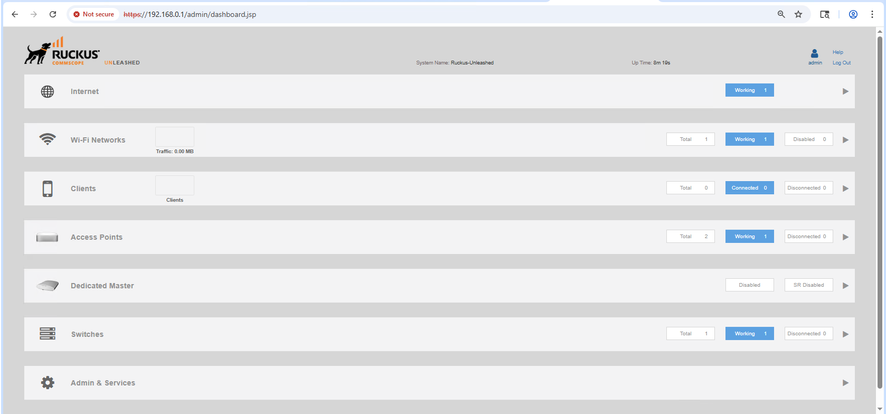

Figure 9: Dashboard view of the RUCKUS Unleashed Access Point after login
Tips & Notes
- Ensure your computer or mobile device is connected to the same network (Wi-Fi or LAN) or Internet Service Provider's (ISP) network as your RUCKUS devices.
- You might see multiple devices with similar names, check each IP address in a browser until you land on the correct login screen.
- If login credentials are required and you haven't changed them, refer to your Lennar welcome materials or contact RUCKUS Support.
Still Need Help?
If you’re still experiencing issues or need help with any of the steps:
Visit the RUCKUS Lennar Home Support Community
Post your query or share a photo of your RUCKUS ICX-7150-C12P Switch and RUCKUS Access Points, our support team and community members are here to assist you.
Thank you for being part of the RUCKUS Lennar Home community. We're here to ensure your network stays connected and running smoothly.
