Switch and AP don't work

HOAILE307
New Contributor

Hello support team,

I am Lennar home owner with ruckus IXC 7150-c12p and an AP. Few days ago, there was power outage. After that:

- We lost Ruckus SSID wifi.

- PoE Ring doorbell is lost signal (maybe power too).

- AP lights: power light is green + flashing, CTL light is solid green.

What we tried: Unplug + reset modem, router, switch, AP. Nothing changed.

Please help.

20 REPLIES 20

Hi @HOAILE307



To verify whether the switch is able to transfer power to PoE devices we have to gain console access.



Please let me know whether you are able to follow the step 1.



  1. By IP address: To fix this issue, we must identify the ‘current’ IP address assigned by your local router to the switch ICX-7150-C12P

I will leave you a guide on how to perform an IP scanner on your local network to identify the switch IP address very easily.

How to find my Ruckus “Devices IP address” using free applications:

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-find-my-Ruckus-Device...



While following the steps if you face any issues please share the screenshot of the error you are getting.



Also please let me know if you have any queries in this regard.



Best regards,

Jayavidhya

Lennar Home Community



HOAILE307
New Contributor

Hi, I tried some steps:

- STEP 1: IP

1.1 I could find IP. There are 2 ruckus IPs

1.2 I use that IP on web browser, couldn't log in because I don't know password and username.

1.3 I open Putty, use telnet (I don't know what is it). I could run all command but nothing change.



Please check all steps I did above via this Google Photos album https://photos.app.goo.gl/hfaVPxua8fkM5Mn18

Hi @HOAILE307



Thanks for your reply.

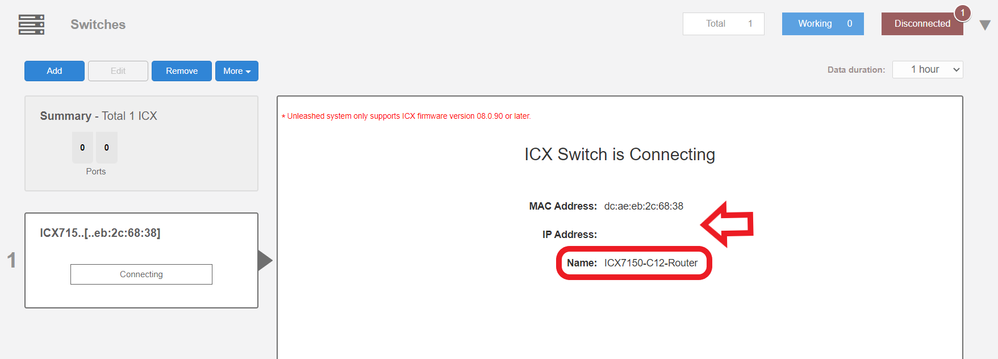

If you have access to the Unleashed Dashboard and the Switch can be seen from there, it may look like the following image, ICX7150-C12-Router instead of ICX7150-C12-Switch,








Please follow the below steps to solve the routing code issue.

How to remotely access to 'ICX 7150-12P' or 'access points' "Network devices"

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-remotely-access-to-IC...

If you can access to the Command line should look like this:

ICX7150-C12 Router>



Here is a quick guide to understand how to fix the 'routing code issue' but basically you need only need to run the following commands once you are on the command line 'CLI'

Note: Hit Enter to accept each command

enable

copy flash flash secondary

boot system flash secondary yes

example:

ICX7150-24P Router>enable (hit enter to accept the command)
ICX7150-24P Router#copy flash flash secondary (hit enter to accept the command and wait: until the flash finished )
ICX7150-24P Router#boot system flash secondary yes ( hit enter to accept the command  : the switch will reboot )

How to Fix Routing code issues on Lennar Home users

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-Fix-Routing-code-issu...

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-solve-the-routing-cod...

4-If the access via IP address is not possible here is a guide how to access to the Switch via console (cable access between your PC to the ICX 7150-C12P) in this case we need a USB type C to USB standard or Console cable Rj45 to USB.

How to console in the ICX-7150-C12P

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-console-in-the-ICX-71...

Once you are log in the ICX-7150-C12P please follow up the same steps that are on point '3'



Please let me know once if you face any issue while troubleshooting the issue.



Best regards,

Jayavidhya

Lennar Home Community





Hi,

1. As I said in the previous post. I couldn't access to Dashboard.

2. I tried to access via USB-C cable on Windows laptop and Macbook. I tried MobaXterm and Putty, the only command I got is "ICX7150-C12 Switch", not "router".

Hi @HOAILE307

Thank you for the response.

Please enter the below commands when you getICX7150-C12 Switchon the Console/CLI.

Note: Hit Enter to accept each command

enable

show version

copy flash flash secondary

boot system flash secondary yes

Example:

VIDEO LINK AS REFERENCEhttps://www.youtube.com/watch?v=Eem1IBgYaWc

Please let me know if you have any queries in this regard.

Thank you again for your patience.



Best regards,

Imran Sanadi

Lennar Home Community.
