Ruckus R510 AP not broadcasting wifi after hard reset

[MandyS]

I have a Ruckus switch with one R510 AP.  We had some storms a couple nights ago and the internet was not working consistently. I also have lost the password to the Unleashed app, so I wanted to do a hard reset to be able to reset the password and hopefully fix the internet issues. I pressed the factory reset button for 15 seconds and released.  Now the AP is not working.  The PWR and CTL lights are on and steady, but the 5G and 2.4G lights are not on.  I cannot connect to any internet at this time.

[pinky_ruckus]

Hello @MandyS ,

Greetings!

This is a follow-up in reference to the case you have opened in the Ruckus Lennar Support Community.

I would like to know if you require further assistance since our last correspondence. Should you have any questions or if the status of your case has changed, please let me know by responding to this post.

Please feel free to contact if you have any further concerns regarding the same.

Best regards,

Pinky Rajendran

RUCKUS Lennar Home Community.

[MandyS]

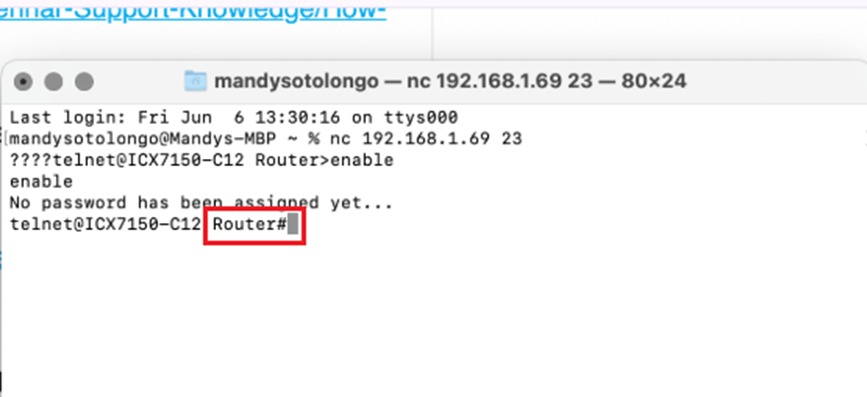

I went back to the terminal and hit enter and it did say "telnet@ICX7150-C12 Router>", so I did each of the commands that were requested.  Here are the 3 screenshots after each command.  I'm not sure if I did it right but this is what I ended up with.

[MandyS]

[pinky_ruckus]

Hello @MandyS ,

Thank you for sharing the response.

From the below screenshot you shared, I understand that the Switch is booted up on the secondary partition which is running on Routing code (SPR)

The Switch should run on the Switching code (SPS) to avoid these issues for Lennar home users. Due to a power outage/power spike, the Switch boots up on the other partition which may be running on a ‘Routing Code’ results in causing this issue.

Please follow the below RUCKUS Lennar Knowledge base self-help article which will help you to fix the issue when the Switch is running in the Routing code.

https://community.ruckuswireless.com/t5/RUCKUS-Lennar-Support-Knowledge/Fixing-RUCKUS-ICX-7150-C12P-...

Please follow the process as explained in the article and let me know if you have any queries in this regard.

Please let me know if you have any queries in this regard.

Thank you again for your patience and understanding.

Best regards,

Pinky Rajendran

RUCKUS Lennar Home Community.

[MandyS]

 I did the steps listed, and I guess it is now running on Switching code. (see screenshot). So now, I did an IP address scan and another Ruckus device comes up.  I'm assuming it's the AP? So I typed in that IP address and got the setup wizard. Is this basically setting it up like it's new? I'm not sure which option to choose. Thank you
