Ruckus 510 Access Points Keep turning off

dwdchen
New Contributor III

Hi my access points keep turning off. I was on vacation for 3 weeks away from the house and I noticed after 1 week the WIFI turned off. Initially I thought it was a power outage, but when I came home 2 weeks after seeing the WIFI off there was no indication that the power went off at all.

At any rate I looked for solutions all over and decided to treat it as if there was a power outage and power cycled my internet and ruckus devices. Please note that my internet works fine from my modem/router combo and I can get WIFI off that but its located in a closet. At first I did multiple power cycles until the AP finally got power and turned back on. I thought I fixed it, but I was wrong. The two AP units (1st and 2nd floor) turn off after a random amount of time (couple be a couple hours or several hours). The last two weekdays I power cycled it in the morning around 7AM and it turned off around 5PM. Last night I power cycled again around 6:30pm and sometime throughout the night it turned off again. I don't want to keep power cycling. What might be the issue? My Lennar home is 6 years old...could the devices just be too old?

Also I tried a different solution by looking up the IP address but couldn't find it so I stopped there. When the WIFI from Ruckus was working I did take a screenshot of the APs IP address if that helps any. Please help, otherwise I will need to replace Ruckus altogether.

4 ACCEPTED SOLUTIONS

Hi @dwdchen

Greetings!!!

Thank you for the response and the information you shared.

As I can see from the screenshots you shared, your RUCKUS ICX-7150-C12P Switch is on an older 08061a version causing this issue. (Please refer to the below screenshot)

We suggest you follow the below guide link to upgrade your Switch to a stable UFI version:

https://community.ruckuswireless.com/t5/RUCKUS-Lennar-Support-Knowledge/How-to-upgrade-RUCKUS-ICX-71...

As you can access CLI, We suggest to follow the 2nd option from the guide.

Please let me know if you have any queries in this regard.

Thank you again for your patience and understanding.



Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

View solution in original post

dwdchen
New Contributor III

Hi Imran,

So I did go through and finished the update. So far it looks good. This process has been quite difficult. I really wish we could have spoke over the phone instead or something. I did run into a hiccup with the first update with the file ending in f. The file updated properly but the last step when I needed to boot it, it didn't entirely complete booting. It stopped internet access and kept giving me that PoE Fatal error again after it got to a certain point. I kept power cycling the switch and it just kept trying to boot up again then gives me the same error. My fix was by power cycling then quickly entering in the next command to copy the next update file. Doing this saved me and it finally worked out and loaded up properly. I was able to finish the updates. Hopefully I won't have anymore issues. I will let you know if I do. Is the update ending in g the most up to date one or should I update further? I just dont want anymore issues....or resolve them now when I still have some knowledge of how to do it.

thank you,

Dudley

View solution in original post

Hi @dwdchen

Thank you for the response and the information you shared.

From the output, I see everything seems to be fine.

Please configure a username and password for your Switch as any usernames and passwords are not working when you try to log in on the web browser.

Reset your new credentials as mentioned in the steps below:

Edit the current or create a new password and username by using the below commands:

enable

configure terminal

device(config)# username super password pass

Where the username is ’super’ and password ‘pass’ (You could choose any of your choices)


In order to allow the correct authentication please run the following commands:
Device(config)#crypto key generate rsa

device(config)#aaa authentication login default local



Note: It will take some time to get synchronized with new reset credentials.

Now you could try using the new username/password to add the Switch to the Unleashed system and it will take some time.

Please check once it is done and let me know if you have any queries in this regard.

Thank you again for your patience and understanding.



Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

View solution in original post

Hi @dwdchen

Thank you for the response and the update.

Yes, you can connect a small switch to the Cat5e outlet in your office. If you need only 2 outlets, the best way is to use an ethernet splitter with 2 outlets. Please refer to the below screenshots for the same.

Switch with 5 ports:

Ethernet splitter with 2 outlets:

Please let me know if you have any queries in this regard.

Thank you again for your patience and understanding.



Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

View solution in original post

30 REPLIES 30

dwdchen
New Contributor III

Hi Imran,

I did not check the switch version yet, but will as soon as I can. My APs are acting up again. Just wanted to know if the switch version could be the issue? The Switch looks fine, just the plugs that the AP units are connected to do not have a light. If I power cycle it comes back, but I am not sure why it keeps turning off again.

Hi @dwdchen

Greetings!!!
Thank you for the response and the update.

Yes, if your RUCKUS ICX-7150-C12P Switch in on an older version may cause these issues.
We may need to look at the Switch current version and some other information from the command outputs as described in my previous post.

Please check and help us with queries to assist you further so that these issues can be avoided in the future.

Please let me know if you have any queries in this regard.

Thank you again for your patience and understanding.



Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

dwdchen
New Contributor III

Hi Imran,

Please see the screenshots of the commands you had me enter.

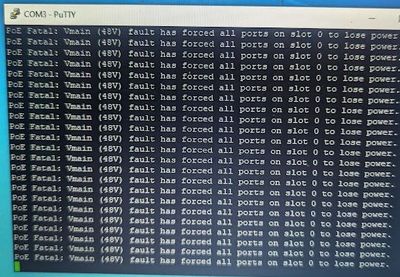

Also there is a additional screenshot that I provided when the AP units were offline (I power cycled after and was able to enter in the commands after this). It said "PoE Fatal: Vmain (48V) fault has forced all ports on slot 0 to lose power." and it kept repeating nonstop. Again this went away after I power cycled the switch.


show flash.JPG

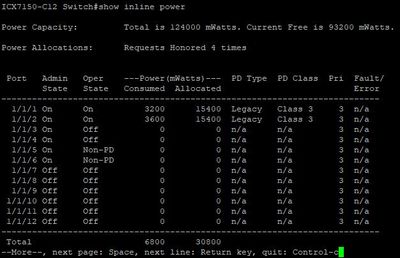

show inline power.JPG

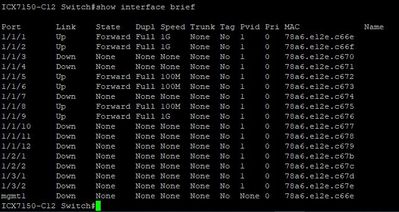

show interface brief.JPG

show version.JPG

Switch-PuTTY when AP went offline and I was connected via USB C.JPG

Thank you,

Dudley

Hi @dwdchen

Greetings!!!

Thank you for the response and the information you shared.

As I can see from the screenshots you shared, your RUCKUS ICX-7150-C12P Switch is on an older 08061a version causing this issue. (Please refer to the below screenshot)

We suggest you follow the below guide link to upgrade your Switch to a stable UFI version:

https://community.ruckuswireless.com/t5/RUCKUS-Lennar-Support-Knowledge/How-to-upgrade-RUCKUS-ICX-71...

As you can access CLI, We suggest to follow the 2nd option from the guide.

Please let me know if you have any queries in this regard.

Thank you again for your patience and understanding.



Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

dwdchen
New Contributor III

Hi Imran,

So I did go through and finished the update. So far it looks good. This process has been quite difficult. I really wish we could have spoke over the phone instead or something. I did run into a hiccup with the first update with the file ending in f. The file updated properly but the last step when I needed to boot it, it didn't entirely complete booting. It stopped internet access and kept giving me that PoE Fatal error again after it got to a certain point. I kept power cycling the switch and it just kept trying to boot up again then gives me the same error. My fix was by power cycling then quickly entering in the next command to copy the next update file. Doing this saved me and it finally worked out and loaded up properly. I was able to finish the updates. Hopefully I won't have anymore issues. I will let you know if I do. Is the update ending in g the most up to date one or should I update further? I just dont want anymore issues....or resolve them now when I still have some knowledge of how to do it.

thank you,

Dudley
