R510 Constant Disconnection

[Jsphtn8]

Hi, i have a lennar home with R510 setup. I have been getting constant and random disconnection of wifi for all devices? Any troubleshooting guide?

[Imran_ruckus]

Hi @Jsphtn8

Greetings!!!

Thank you for reaching out to the RUCKUS Lennar Home Community.

We appreciate your patience and understanding as we work to resolve the issues you are experiencing with your RUCKUS setup.

Based on the information provided, it appears that you are encountering intermittent internet connectivity.

We apologize for any inconvenience this has caused and are committed to assisting you promptly.

To better assist you, could you please provide the following information:

1. Can you confirm if your RUCKUS setup was previously operational, and if there were any power outages before the issue began?
2. When your switch is connected to the outlet, do you observe any illuminated lights (amber or green)? Kindly describe which lights are visible. Additionally, please provide a photo showing the status of the lights and the full switch panel with cable connections to the switch ports.

3. Is your internet connection from the ISP stable and functioning? You can verify this by connecting to your local router's Wi-Fi or through an ethernet cable from the router to a laptop/PC.
4. How many access points are currently connected to the switch? Please describe the status of the lights on the access points. Similarly, include a photo showing the access points' light status.

Please log into your RUCKUS Account before uploading these photos/screenshots.

Please help me with ALL the above queries, and should you have any further questions or concerns, feel free to reach out.

We appreciate your cooperation and look forward to resolving this matter for you promptly.

Best regards,

Imran Sanadi
RUCKUS Lennar Home Community

[Jsphtn8]

 

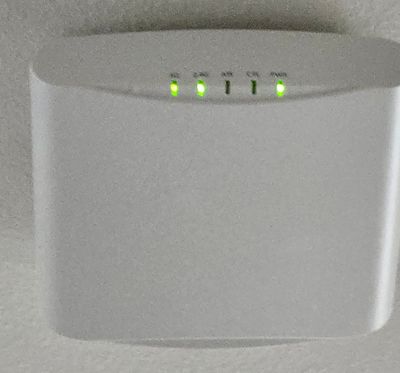

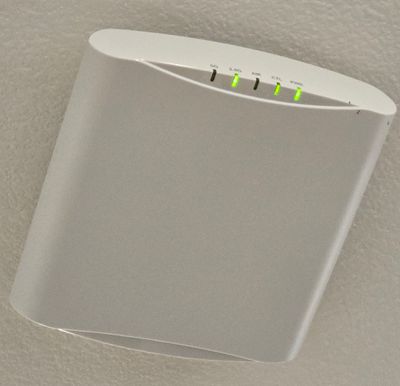

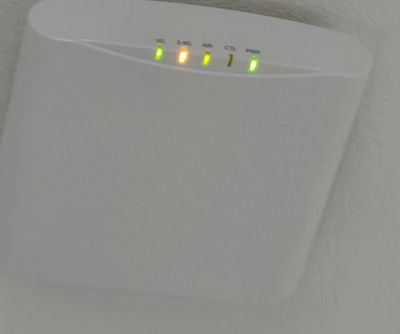

Thanks for the response. I have been getting disconnected previously so I was playing with the unleashed app and enabled Mesh and it became worse. Here are the pic you requested. I have 3 APs.

[Jsphtn8]

  

 

[Imran_ruckus]

Hi @Jsphtn8

Greetings!!!

Thank you for your recent correspondence and update.

From the pictures you shared, I see that the light status of your RUCKUS ICX-7150-C12P Switch and Access Points are in normal state.

However, we may need to check some configurations of your RUCKUS ICX-7150-C12P Switch to troubleshoot this issue.

To proceed with troubleshooting the issue, please follow the steps outlined below to access the Command Line Interface (CLI) and provide the necessary command outputs:

1. First, identify the current IP address assigned to the switch ICX-7150-C12P by your local router. You can use an IP scanner tool to easily locate the switch's IP address on your network. Here is a guide on how to perform this using IP Scanner free applications:

https://community.ruckuswireless.com/t5/RUCKUS-Lennar-Support-Knowledge/How-to-find-the-IP-Address-o...

2. Once you have identified the IP address of the switch, proceed to access the Command Line Interface (CLI) of the RUCKUS ICX-7150-C12P switch. Here is a guide on how to access the CLI:

https://community.ruckuswireless.com/t5/RUCKUS-Lennar-Support-Knowledge/How-to-access-the-Command-Li...

If you can access the Command line the prompt should look like below:

ICX7150-C12 Router> OR

ICX7150-C12 Switch>

3. After successfully accessing the CLI, please execute the following commands and provide the outputs:

   enable

   show version

   show flash

   show inline power

   show inline power detail

   show interface brief

Please share the command outputs or screenshots if you encounter any issues or errors during these steps.

Feel free to reach out if you have any questions or require further assistance.

Thank you for your cooperation and patience.

Best regards,

Imran Sanadi

RUCKUS Lennar Home Community
