Access point lights no longer on

FOTV
New Contributor III

Please I need assistance with my wireless access points again. I was having some latency issue with my  internet so, to troubleshoot,  AT&T suggested unplugging Ruckus to use their wifi gateway. After establishing that Ruckus might be the cause every attempt to get it back on has failed. I have read of a similar situation posted today and I tried the reboot process but it didn't work. The devices are not getting any power whatsoever. Please any assistance would be appreciated. FYI, I have attempted to troubleshoot based on the instructions given to @RobertU @ by@Imran_ruckus with similar issue. It is not working.

Thank you

15 REPLIES 15

Jayavidhya
Moderator
Moderator

Hi @FOTV



Please let us know the LED status of the switch using the below guide.



RUCKUS SWITCH

https://docs.commscope.com/bundle/icx7150-installguide/page/GUID-973C8AE8-837A-41C7-9811-BAEF6ADEF3D...






Best regards,

Jayavidhya

Lennar Home Community



FOTV
New Contributor III

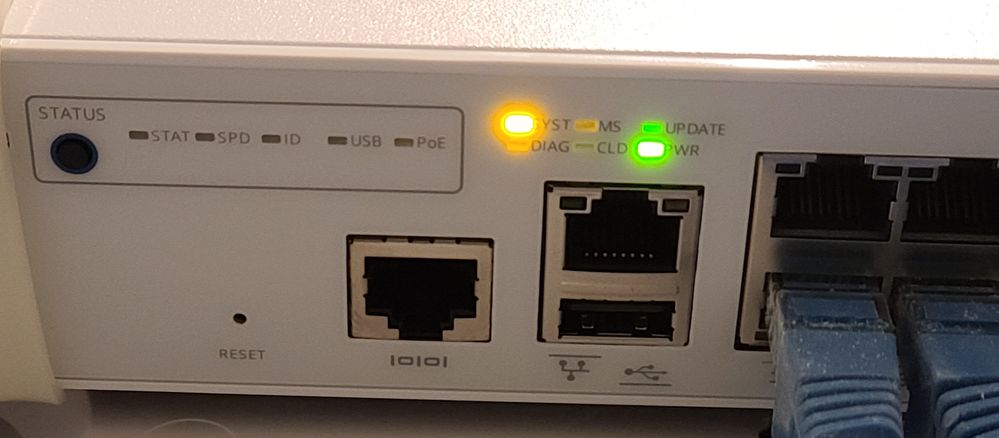

Please see attached pic for clarity.

The system light is amber. And power light is solid green. No lights in all 5 ports.

Thank you for your support.

FOTV
New Contributor III


Hi @FOTV



Based on your description, it seems that your switch has one green and one amber light, which means that the switch is stuck in boot mode.

1-Please try to disconnect from the Power outlet the ICX- 7150 and reconnect it.

2-Please try to press the reset button using a paper click or a small stick

  1. Remove power from the switch.
  2. Press and hold the Reset button while applying power to the switch.
  3. After all the system LEDs flash amber, release the Reset button.

https://docs.commscope.com/bundle/icx7150-installguide/page/GUID-D3B5DB74-53A7-4F8D-82F9-6EB600879EE...

Video link:https://www.youtube.com/watch?v=6jHMTdo_hK4

If the resetting process doesn't work, we need to perform a software recovery.

Here is the quick guide to perform software recovery.

How to perform a Software recovery on an ICX7150 switch

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-perform-a-Software-re...



Ruckus ICX Recovery Load boot code from boot monitor

https://www.youtube.com/watch?v=RHriOYYD_iI&t=7s



Note: after fixing the issue of the Switch been stuck in boot mode, please perform an upgrade to the code 08095g UFI and upgrade both partitions with the switching code file named SPS08095gufi.bin, so perform the software recovery using the code 08090k with the upgrade image file named SPS08090k.bin, then when the switch is back to normal upgrade to the file SPS08095gufi.bin for both partitions primary and secondary.

1.Upgrade a Switch ICX-7150-C12P using a USB flash drive

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-Upgrade-a-Switch-ICX-...

2. Upgrade a Switch ICX7150-C12P via TFTP

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-Upgrade-a-Switch-ICX-...

3. Upgrade a switch via Web GUI (ICX7150 Switch)

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-perform-an-Upgrade-vi...



Best regards,

Jayavidhya

Lennar Home Community
