ZoneDirector 1100 can't choose the right authentication server

kevin_reible
New Contributor
Hi everyone,

on our ZoneDirector 1100 we want to use 802.1x EAP for one of our WLANs. But we can't choose our Active Directory entry in the authentication server section. There's only "Local database". We already created a AAA Server with the Active Directory option, also the test of the authentication settings was successful. Does anyone have an idea why we can't choose the Active Directory entry?

Kind regards
Kevin
3 REPLIES 3

primoz_marinsek
Valued Contributor
What have you chosen for the "Type" of "WLAN usage" and what have you chosen for "Authentication method"?

You should have Standard Type and 802.1X for authentication and then you can choose your AAA server.

sid_sok
Contributor II

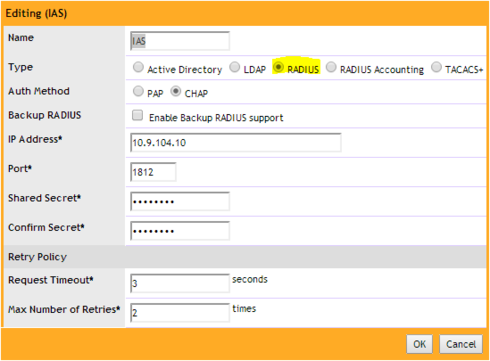

For 802.1x Authentication you have to have Radius as the AAA Type. If you have AD you can only us that for standard wlan with WebAuth.

Image_ images_messages_5f91c407135b77e247922735_36e1f8de8d1c8f4ec59e2931b0c80187_AAAOptions_inline-eef54b2b-7c6a-4679-95a9-867c2f5f2b7f-414751930.PNG1390577095

The Radius server will check against your AD, but you need the Radius front end to make 802.1x work.

Sid

kevin_reible
New Contributor
Hi Primož, hi Sid,

thanks for your answers!

Now I realized I have to set up a RADIUS server to use 802.1x.

Thank you!

Kevin
