sz144-D connecting it to a switch

ali_db0udsohr2q
Contributor
Following quick set up talks about the SZ 144-D config but does not explain how the NIC's need to connect?

https://ruckus-support.s3.amazonaws.com/private/documents/3409/SZ144-D-QuickSetupGuide-800-72550-001...

Just mentions to connect Port 1 or 2 to the switch/router but that's about it.  What about the 10Gig ports?  What are the 4 x 1 Gig ports for and 4 x 10 Gig ports for?

And when I connect multiple ports, can they be port channeled/LAG?  I'm guessing it needs to be Active if they can be LAGed?






2 ACCEPTED SOLUTIONS

syamantakomer
Moderator
Moderator
Hi Ali,

LAG is supported on SZ144-D.

It is supported max 1Gx4 and 10Gx4 ports.

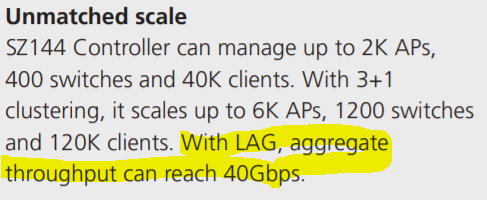

Image_ images_messages_5f91c45e135b77e247a4c74b_d9cdde679aea3694192110146a90ff59_RackMultipart20201013556301bsp-376979c8-6582-48df-a74e-ba7bf3d82090-1603433194.png1602594349

Regards,
Syamantak Omer
Regards,
Syamantak Omer
Official Rep | Staff TSE | CWNA | CCNA | RASZA | RICXI

View solution in original post

pasquale_monar2
New Contributor III

There are two port groups for the SZ144-D.

The first PG1 is all ports combined management and ap tunnel traffic. Therefore all ports can be used for management and AP tunnel data.

PG2 is as follows.

Eth 1 and eth 2 are for management and ap control

Eth 3 and eth 4 are for 1Gbps AP tunnel data and the 10G sfps would be part of PG2 for 10Gbps AP tunnel data.

I believe LAG of these ports will be available shortly in a future release.

View solution in original post

3 REPLIES 3

syamantakomer
Moderator
Moderator
Hi Ali,

LAG is supported on SZ144-D.

It is supported max 1Gx4 and 10Gx4 ports.

Image_ images_messages_5f91c45e135b77e247a4c74b_d9cdde679aea3694192110146a90ff59_RackMultipart20201013556301bsp-376979c8-6582-48df-a74e-ba7bf3d82090-1603433194.png1602594349

Regards,
Syamantak Omer
Regards,
Syamantak Omer
Official Rep | Staff TSE | CWNA | CCNA | RASZA | RICXI

Ok so then 4 x 1 Gig ports are for management interface and 4 x 10 Gig interface ports are for data ?

pasquale_monar2
New Contributor III

There are two port groups for the SZ144-D.

The first PG1 is all ports combined management and ap tunnel traffic. Therefore all ports can be used for management and AP tunnel data.

PG2 is as follows.

Eth 1 and eth 2 are for management and ap control

Eth 3 and eth 4 are for 1Gbps AP tunnel data and the 10G sfps would be part of PG2 for 10Gbps AP tunnel data.

I believe LAG of these ports will be available shortly in a future release.
