Can't register new APs to virtual SZ essentials

New Contributor II

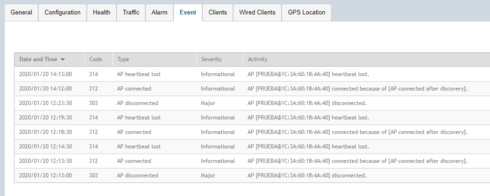

Hello everybody. This is my first post as i'm new to Ruckus world. We are having problems adding new APs to Controller. Every 60 sec we have a heartbeat lost from the controller to AP and the AP firmware still diferent than Working APs. Here's some screenshots, if you need more info please ask.
Image_ images_messages_5f91c3fb135b77e247909159_0a6e8c77b012a3b64cfc20010b67bd1e_RackMultipart20200121697601ee8-e386deb2-be85-4230-a831-bb86c578788e-344664621.PNG1579598742
Image_ images_messages_5f91c3fb135b77e247909159_11ffa4fe0ec1a72f07cd1d8721919ce4_RackMultipart2020012159182bhqm-176b5d48-be43-4132-a4db-0d09eb0da8a9-2146461137.PNG1579598767
Image_ images_messages_5f91c3fb135b77e247909159_a13829ab5200513d8d818d765a75f524_RackMultipart202001217292694cs-f2361d9e-2a97-4778-9394-a459462303f6-1897306714.PNG1579598810
Image_ images_messages_5f91c3fb135b77e247909159_3d30f86f365cacc04b803dd08f260fbc_RackMultipart2020012175890z7bi-737288d0-3fa0-4443-b751-2a45d5557f3a-1871180273.PNG1579598830


Hi Redouan,

It seems you have exhausted system hardware AP capacity.

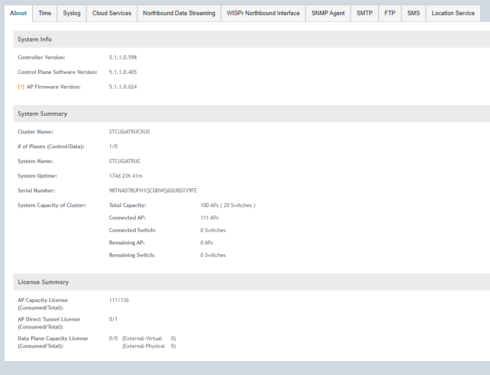

Refer the screenshot below, system AP capacity (as per current hardware resource allocation) is 100 but you have connected 111 AP (11 additional APs) due to this system is unable to manage them properly and APs are getting disconnected.

Image_ images_messages_5f91c454135b77e247a27d06_a42f23ac7f274d976bcf752c0c6ba06e_RackMultipart20200121109030106-53a93c31-2680-4111-b0b9-367dc26f3baf-1069492862.png1579601683

To fix this, please increase the hardware resources from your VM for vSZ instance. You can refer the below tables (refer it depending upon your vSZ type, vSZ-H or vSZ-E) and increase the resources accordingly.

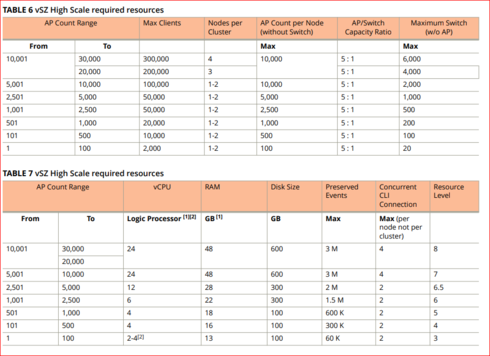

For vSZ-High scale:

Image_ images_messages_5f91c454135b77e247a27d06_282b816c9f22dfa98a4eef7a24ce29c5_RackMultipart20200121914471ou3-35256c00-4a1d-4174-8ffb-12640568b9c2-1209417140.png1579602215

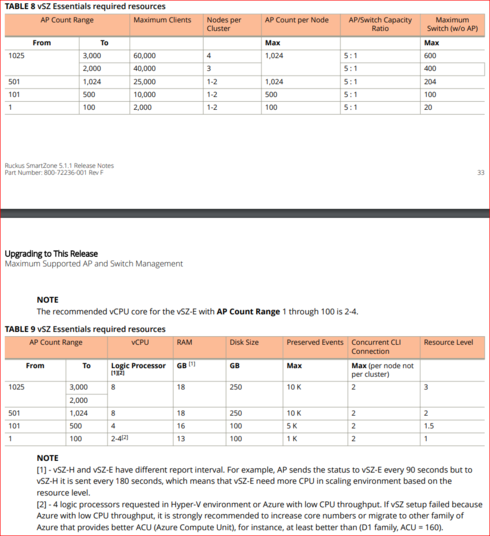

For vSZ-Essentials:

Image_ images_messages_5f91c454135b77e247a27d06_82b5bfd35d4cb743a0bd61b030277269_RackMultipart20200121912651d24-de101845-fe94-471d-a483-e2392b20d1cc-1328118707.png1579602261

Important note: It is advised to make the changes in VM after shutting down the controller, during a maintenance window. Refer below steps.

1- Take a configuration backup and download the backup file (to be safe side and failure recovery).
2- Power the vSZ instance from your VM Host.
3- Increase the hardware resources as per the given tables above.
4- Power On the vSZ from VM and wait for all the services to come up (it usually take 20-30 minutes or more).

Let me know if you have any query on this.

Syamantak Omer
Syamantak Omer
Official Rep | Staff TSE | CWNA | CCNA | RASZA | RICXI

New Contributor II
Thank you Syamantak for your reply, we will proceed by increasing the hardware resources of the VM following the steps.
i'll inform about the results.

Best regards


New Contributor II

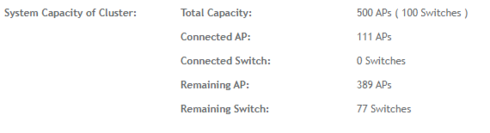

Everything is working fine after increasing the hardware resources and we can add more APs. In system capacity it shows that the total capacity changed to 500. 🙂Image_ images_messages_5f91c458135b77e247a36494_2f2f5a5409afd5cac72b1993265d8c04_RackMultipart202001281138519zz-9f9c6178-954e-4026-880b-ecf0eed112db-1244348617.PNG1580228821

Thank You,
