Automating Cluster Backup to an FTP server

New Contributor
I'm wondering if anyone has automated their cluster backup to do the following on their VSE:
1. Run the cluster backup via the API, PowerShell, if possible?
2. Copy that Backup to your preferred FTP server/client, via the CLI?

If so I'd love to know what your pocess was?  For some reason Ruckus doesn't offer this as an option like the Configuration Backups which does exactly what I'm trying to do.

New Contributor

I have tried FTP by cli.

under enable mode.

Image_ images_messages_5f91c450135b77e247a1d15a_858a0a6e00c66249fd2a572d85d52898_RackMultipart20200909127381ypu-ce8f7a8d-668c-4344-872e-defd5277b448-49425979.JPG1599620101

Then, choose cluster backup file for send to FTP server.

But i'm not sure it can schedule for auto generate or not.


Community Admin
Community Admin
Hi Jump,

Cluster backup/upload to FTP is only supported from CLI and API and it cannot be automate from vSZ, unlike configuration backup.

You may use a 3rd party app/CLI scripting application which can run the commands as per the defined schedule and upload it to FTP.

Command provided by Chatuwit is correct and you can use it with a CLI scripting application to automate it.

You may refer below article which explains how to create and upload the cluster backup to FTP server.

Note: Automating cluster backup can be tricky, as creating a new cluster backup creates a new number for each cluster backup and same number need to be selected, when you wish to upload it to the FTP server.

For example, if there are two cluster backup in the v/SZ, it asks which one you wish to upload to FTP server.

SZ100-103# copy backup ftp://tac:tac@

   No.   Created on                    Patch Version                 File Size
   ----- ----------------------------- ----------------------------- -----------------------------
   1     2019-12-11 07:31:19 GMT                   1.4GB
   2     2019-12-11 07:37:48 GMT                   785.1MB

Please choose a backup to send to remote FTP server or 'No' to cancel: 1

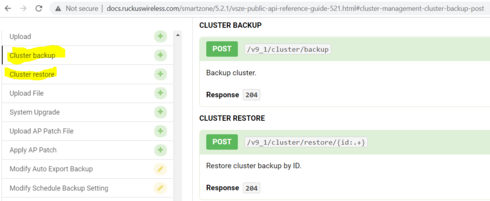

Cluster backup/restore is also possible using API but uploading it to FTP is not supported.

You can find public API 5.2.1 here for vSZ-H and here for vSZ-E.

Image_ images_messages_5f91c451135b77e247a1e721_a3da56f7912bdc3fc2fef2891499e004_RackMultipart2020091093741ggui-fed58a17-5a71-4918-80a7-66e9ed3dfa49-590720505.png1599742759
