11-29-2024 01:48 AM
Hello!

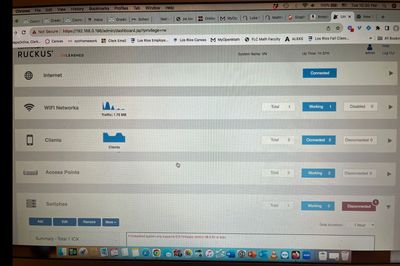

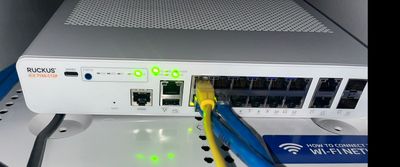

I had my internet working through access points. I had to turn ruckus switch off to put a 3 way outlet to make sure my router and modem are connected in the closet where it is installed and wires are all inside the plastic unit installed by the builder together with the switch. When I reconnected the power to the modem, router and switch, everything seems to be working as it previously, except the switch is not connected. How do I reconnect the switch so it actually sends the internet signal to the access points? Please see my setup and screen shots of what I mean when I say everything else is connected but switch is not. Thank you for your time!
11-29-2024 06:49 AM
Hello @DavidN ,
Thank you for sharing the response.

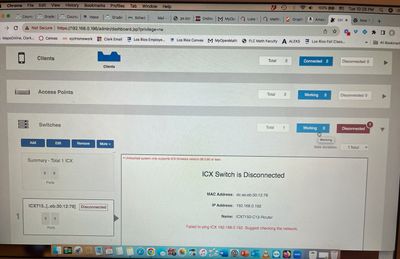

From the below screenshot you shared, I understand that the Switch is booted up on the secondary partition which is running on Routing code (SPR)
The Switch should run on the Switching code (SPS) to avoid these issues for Lennar home users. Due to a power outage/power spike, the Switch boots up on the other partition which may be running on a ‘Routing Code’ results in causing this issue.
Please follow the below RUCKUS Lennar Knowledge base self-help article which will help you to fix the issue when the Switch is running in the Routing code.
Please follow the process as explained in the article and let me know if you have any queries in this regard.
Please let me know if you have any queries in this regard.
Thank you again for your patience and understanding.
Best regards,
Pinky Rajendran
RUCKUS Lennar Home Community.
12-02-2024 09:56 AM
Hello @DavidN ,
Greetings!
This is a follow-up in reference to the case you have opened in the Ruckus Lennar Support Community.
I would like to know if you require further assistance since our last correspondence. Should you have any questions or if the status of your case has changed, please let me know by responding to this post.
Please feel free to contact if you have any further concerns regarding the same.
Best regards,
Pinky Rajendran
RUCKUS Lennar Home Community.
