R510 AP wrong address

tim_smith
New Contributor II

Recently moved into a Lennar home with the Ruckus switch and two r510 ap's. I was attempting to change the AP's to have 192.168.2.0 to provide out. Initially both AP's were 192.168.1.0. I also have Spectrum AP where its set also to 192.168.1.0. The issue is I'm not able to change the the AP's IP. I've done the following - Changing to the .2.0 AP though I'm getting a 1.0 ip. I change to a 2.0 in order to access the AP which originally was 192.168.1.233. I assigned it to 192.168.2.233. When I manually change my pc's IP to 192.168.2.10 and ssh into the AP's 2.233. I do a get ipaddr wan and see the static vlan1 show as 192.168.2.233 255.255.255.0 192.168.2.1 . I then do a set ipaddr wan vlan1 192.168.1.233 255.255.255.0 192.168.1.1 . It reboots but never changes .

7 REPLIES 7

syamantakomer
Community Admin
Community Admin

Hi Tim,

Is it the master AP on which you are trying to change IP? If yes, please do it from GUI.

And what is the Unleashed version? If it is not on 200.10, then it will not support VLAN tagging.


Syamantak Omer
Sr.Staff TSE | CWNA | CCNA | RCWA | RASZA | RICXI
RUCKUS Networks, CommScope!
Follow me on LinkedIn

The one I changed through the GUI initially was not the Master AP. The version is 200.9 - I see the option to upgrade both 200.10 .  Will this allow me to re-configure the IP on the 2nd AP?

Hi Tim,

I have never tested but it is advised to change the master AP config from GUI and for member APs you can use GUI or CLI.

Starting from 200.10, you can use management VLAN for master and member APs, to keep the client traffic separate from AP management.


Syamantak Omer
Sr.Staff TSE | CWNA | CCNA | RCWA | RASZA | RICXI
RUCKUS Networks, CommScope!
Follow me on LinkedIn

Image_ images_messages_60c92f6a22f33063d33be60a_40ce7916d31d182ae2064d50b033cb1f_C9E0B7BFCF864EE89D654365366972-680d4898-7617-46e4-acbd-712f51f2c5b9-1149943998.png

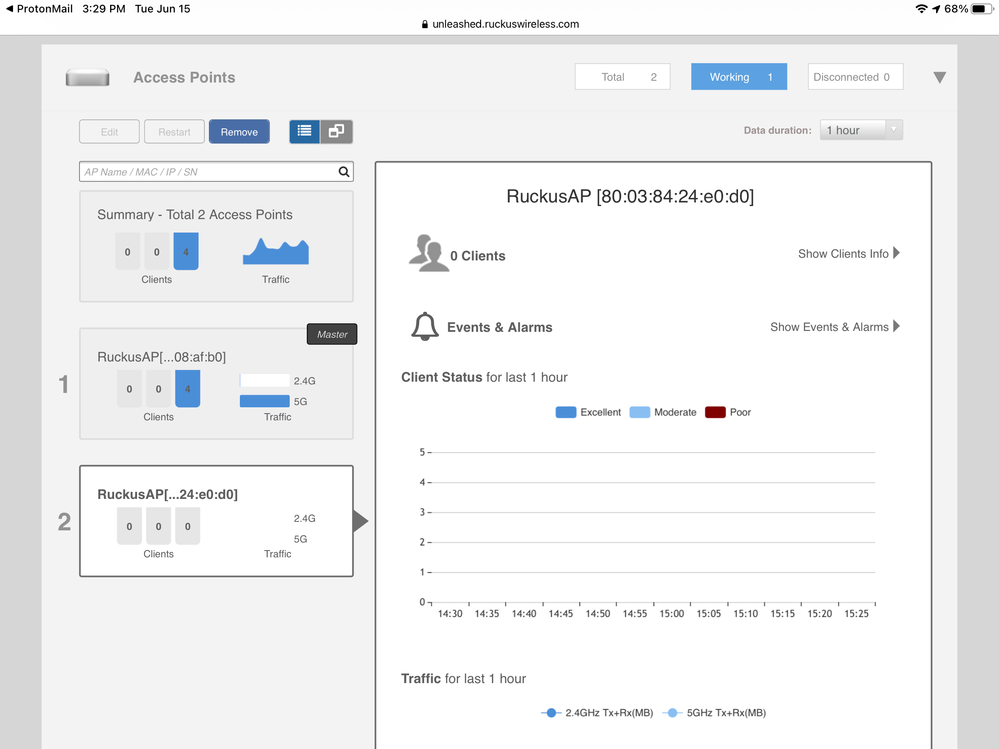

This is the AP Where I used to be able to change the IP

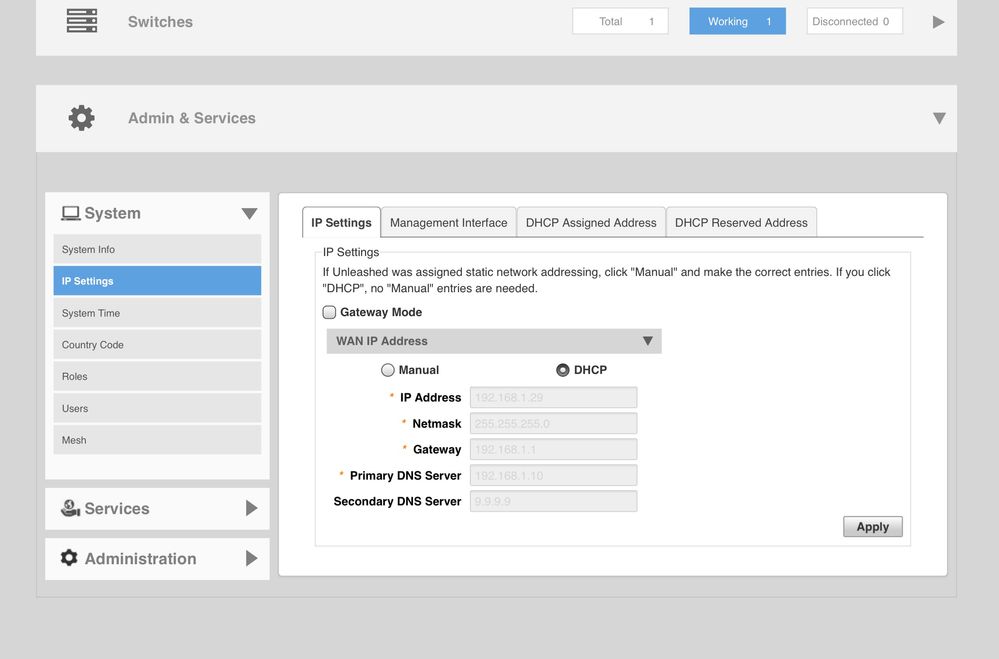

On this screen below - If I change to the 192.168.2.0 network will it give me access again to both AP’s


Image_ images_messages_60c92f6a22f33063d33be60a_6a95eed3e070e4313c9b4a82e48a7c3c_75B7A2BD5B3B4CC6847D9ED027C9E2-2f9f5631-b26a-488a-9a46-9d3e38be5792-1853100631.jpeg

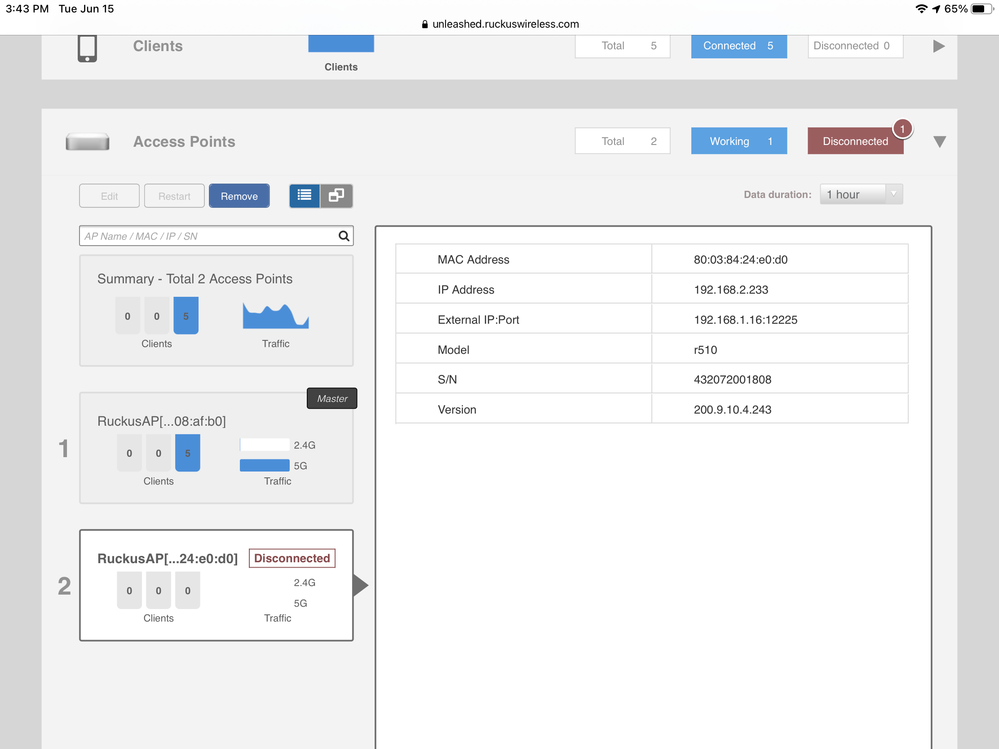

Lastly this is what I see in the unleashed.ruckus site. Since I changed the IP It shows disconnected. Is there a way to unplug the POE so it can revert to the 192.168.1.0 network similar to a factory reset?

Image_ images_messages_60c92f6a22f33063d33be60a_40a7176c889f7408bc138d674b78ac35_46760A6A49FD4ED694CA473EAAA693-f6bdcefa-767c-458b-886f-c3028b705363-880237209.png
