No lights

[sfbravo8]

All lights on my main unit seem to be on. But my hallway units are not. It hasn’t worked for at least 9 months. I’ve done the hard reset on the unit and my internet provider but it’s not helping I had the account under another email when I moved into my lennara hone 6 years ago but had to change everything so I don’t have all my original information for the account if you need it. I can give you the original email. I can’t sign in on my app either because everything goes to the old email and I can’t seem to change it. Also, because I can't get into the App and my account as it was set up I have not been able to make any updates so I'm sure that might not be helping

[pinky_ruckus]

Hello @sfbravo8 ,

Thank you for the response.

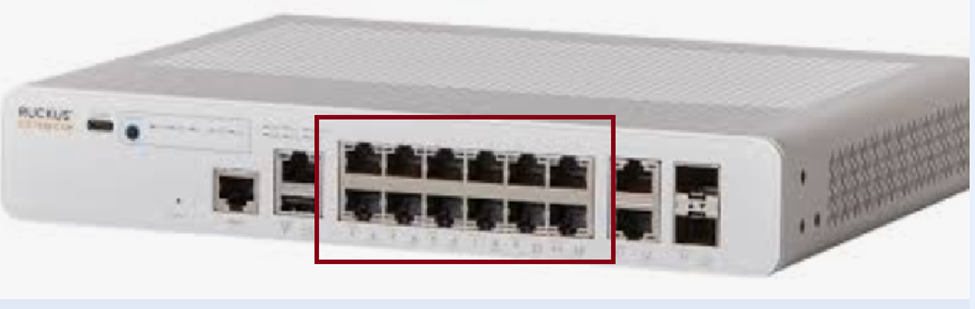

From the pictures you shared, it seems like the ethernet cable which is coming from the ISP’s (Internet Service Provider’s) Router or Modem/Router combo is plugged into the wrong port on the Switch panel. It must be plugged into any 1 in-12 ports as shown in the below screenshot. Please unplug the ethernet cable and plug it into the correct port then reboot (unplug and plug from the power outlet) and try to connect to the Internet via Access Points.

It should be plugged into one of the 12 ports as shown in the below screenshot.

Also, we would need to check few configurations of the switch.

To check this, we must identify the ‘current’ IP address assigned by your local router to the switch ICX-7150-C12P

I will leave you a guide on how to perform an IP scanner on your local network to identify the switch IP address very easily.

How to find the IP Address of the RUCKUS Devices (Switch and APs) using IP Scanner free applications:

https://community.ruckuswireless.com/t5/RUCKUS-Lennar-Support-Knowledge/How-to-find-the-IP-Address-o...

Once we identify the IP address of the switch proceed to access remotely to the device “Command Line”

https://community.ruckuswireless.com/t5/RUCKUS-Lennar-Support-Knowledge/How-to-access-the-Command-Li...

If you can access the Command line should look like this:

ICX7150-C12 Router> OR

ICX7150-C12 Switch>

Once you login to CLI, please enter the below commands and share the output.

Note: Hit Enter to accept each command

enable

show version

show flash

show inline power

show inline power detail

show interface brief

Please share the output of the above commands or share the screenshots if stuck at any step or error (if any) and let me know if you have any queries in this regard.

Regards,

Pinky Rajendran

RUCKUS Lennar Home Community.

[sfbravo8]

I had it plugged into one of the other ports but it didn't work there either but I will try the current instructions you sent.   I really hate that everything has to be done via this site and nit actually getting to speak to someone.  I’m trying to get the sites you sent over downloaded so I can get you the information you need for the ip address

[pinky_ruckus]

Hello @sfbravo8 ,

Thank you for the response.

Apologies, effective November’2022, ‘Ruckus Support for Lennar Homes customers will no longer be handled by phone or email or remote session. We will be exclusively supporting customers via this community forum support model only.

Please follow the instructions we shared on the previous post and share the output of the commands or screenshot if you are getting stuck at any point.

Thank you for your patience and understanding.

Regards,

Pinky Rajendran

RUCKUS Lennar Home Community

[pinky_ruckus]

Hello @sfbravo8 ,

Greetings!

This is a follow-up in reference to the case you have opened in the Ruckus Lennar Support Community.

I would like to know if you require further assistance since our last correspondence. Should you have any questions or if the status of your case has changed, please let me know by responding to this post.

Please feel free to contact if you have any further concerns regarding the same.

Best regards,

Pinky Rajendran

RUCKUS Lennar Home Community.

[pinky_ruckus]

Hello @sfbravo8 ,

Greetings!

This is a follow-up in reference to the case you have opened in the Ruckus Lennar Support Community.

I would like to know if you require further assistance since our last correspondence. Should you have any questions or if the status of your case has changed, please let me know by responding to this post.

Please feel free to contact if you have any further concerns regarding the same.

Best regards,

Pinky Rajendran

RUCKUS Lennar Home Community.
