Hi, looking for some guidance on getting this equipment up and running. The ICX7150 and 2 R510s were in the house but not powered. After I plugged them in the R510s didnt power on. I figured out how to cli into the 7150 and turn the POE on but the APs are not broadcasting the recoverme or configureme signal. Is there a baseline setting for the 7150 or is there something else I am missing? I would appreciate documentation for what the settings are supposed to be, so I can further troubleshoot from there. Oh the R510 lights seem to be cycling between AIR, CTL, and PWR all green.
Seem the ICX7150 Switch was running an old code, new code from 08080 do have PoE enable by default, so I will advise perform an upgrade to the code 08095g UFI using the image SPS08095gufi.bin in both partitions, now like seems you are running an old code you need to upgrade twice, (code you are >>08080f>>08095g UFI), now the builder must provide you the Unleashed system already set up, they normally provide a sticker with all the credential and the SSID/Wi-Fi ID, so if you don't see the default SSID configure.me and the PWR is greed, this means that the Access Point is online and broadcasting a SSID/Wi-Fi ID that you don't know the name, so an easy way to gain access to the unleashed dashboard and find the current SSID/Wi-Fi ID or rename for a new, will wiring a computer to the ICX 7150 Switch, causing that the computer will be in the same subnet as the Access Points and find the IP address of the master Access Point in case you have more than one, test all the IP address you found for access points and paste in your web browser.
Note: To upgrade the Switch to the recommended code 08095, check the next two options.

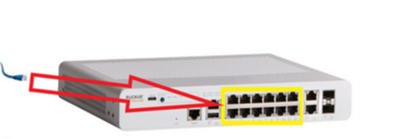

How to Upgrade a Switch ICX-7150-C12P using a USB flash drive
