ICX7150-C12P Ports appear to be failing - RMA

[Spike]

I have an ICX7150-12CP with multiple ports that appear to be failing.  I have a R510 that was plugged into port 1/1/12 and showing a connection speed of only 10Mbps.   When the R510 was removed from ceiling and plugged directly into port 1/1/12 with a known good cable, connection speed would only show 10Mbps and would not connect.   Switch was power cycled and same behavior.  The R510 was moved to port 1/1/3 with same cable and the unit connected normally at 1Gbps. Configuration verified and no speed specific settings on the port.  Please provide RMA of switch.

[Spike]

Also, sh int brief, no link on 1/1/12 when hard set to 1000-full:

SSH@ICX7150-C12 Switch# sh int brief

Port Link State Dupl Speed Trunk Tag Pvid Pri MAC Name
1/1/1 Down None None None None No 1 0 c0c5.20a9.964f
1/1/2 Down None None None None No 1 0 c0c5.20a9.9650
1/1/3 Down None None None None No 1 0 c0c5.20a9.9651
1/1/4 Down None None None None No 1 0 c0c5.20a9.9652
1/1/5 Up Forward Full 1G None No 1 0 c0c5.20a9.9653
1/1/6 Up Forward Half 10M None No 1 0 c0c5.20a9.9654
1/1/7 Down None None None None No 1 0 c0c5.20a9.9655
1/1/8 Up Forward Full 100M None No 1 0 c0c5.20a9.9656
1/1/9 Up Forward Full 100M None No 1 0 c0c5.20a9.9657
1/1/10 Up Forward Full 100M None No 1 0 c0c5.20a9.9658
1/1/11 Up Forward Full 1G None No 1 0 c0c5.20a9.9659
1/1/12 Down None None None None No 1 0 c0c5.20a9.965a
1/2/1 Down None None None None No 1 0 c0c5.20a9.965c
1/2/2 Down None None None None No 1 0 c0c5.20a9.965d
1/3/1 Down None None None None No 1 0 c0c5.20a9.965e
1/3/2 Down None None None None No 1 0 c0c5.20a9.965f
mgmt1 Down None None None None No None 0 c0c5.20a9.964f

[Imran_ruckus]

Hi @Spike

Thank you for the response and the update.

In the output of the show lldp neighbors detail command, I do not see an Access Point connected to port 1/1/12.

Could you please try applying the command below to all switch ports with 'write memory' command and check the results?

enable

configure terminal
interface ethernet 1/1/1 to 1/1/12
speed-duplex 1000-full

write memory
end

Once done please share the output of commands:

show lldp neighbors detail

show inline power

Please let me know how it goes.

Thank you again for your patience and understanding.

Best regards,
Imran Sanadi
RUCKUS | Lennar Home Community Support

[Spike]

Correct, the port will not establish a link at 1000-full and will only negotiate to 10Mb.  At 10Mb, the port goes on and off line.   The same access point with the same cable has no issue linking on Port1/1/3 with the port hard set or set to auto.  Port1/1/12 is a hardware failure.  Please provide next steps or a replacement.

[Imran_ruckus]

Hi @Spike

Thank you for the update.

Please note that, as per policy, we are unable to proceed with a replacement until all required troubleshooting steps have been completed.

1. Kindly share the command outputs after performing the requested steps from my previous response.

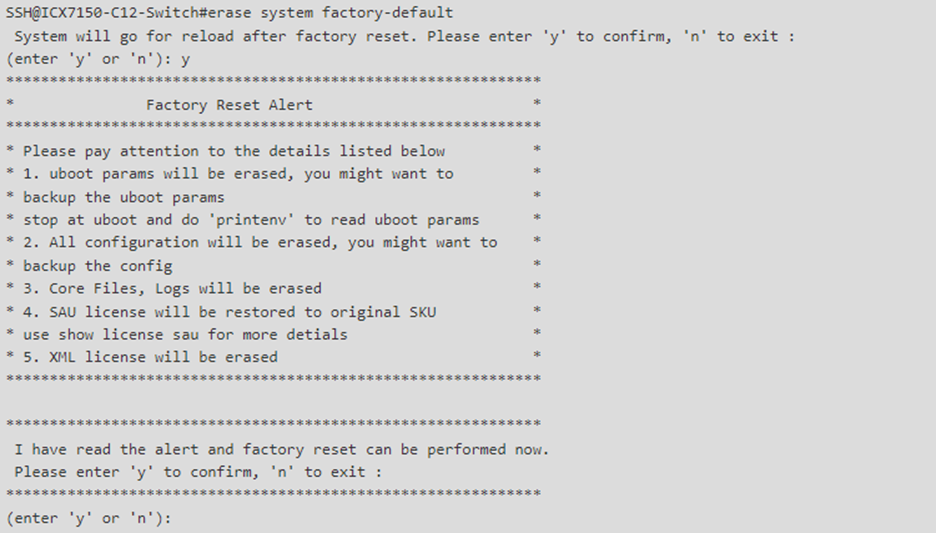

2. Additionally, please proceed with a factory default reset of the RUCKUS ICX-7150-C12P switch using the commands outlined below (also refer to the screenshot provided).

enable

erase system factory-default

y

3. Have you tried performing a physical factory reset on the switch? If not, please refer to the RUCKUS Lennar Knowledge Base self-help article below for detailed instructions:

https://community.ruckuswireless.com/t5/RUCKUS-Lennar-Support-Knowledge/Process-for-performing-a-phy...

Please let me know how it goes once completed.

Thank you again for your patience and understanding.

Best regards,
Imran Sanadi
RUCKUS | Lennar Home Community Support

[Spike]

After performing the following:

configure terminal
interface ethernet 1/1/1 to 1/1/12
speed-duplex 1000-full

all connectivity to the switch was lost.   I performed a full factory reset to the switch via the front panel in order to reestablish connectivity to the swtich.

results of the requested commands post reset are as follows, please provide next steps as soon as possible.

SSH@ICX7150-C12 Switch#sh lldp neighbors detail
Local port: 1/1/5
Neighbor: 54ec.2f31.fa90, TTL 99 seconds
+ Chassis ID (MAC address): 54ec.2f31.fa90
+ Port ID (MAC address): 54ec.2f31.fa90
+ Time to live: 120 seconds
+ System name: RuckusAP Pool
+ System description : "Ruckus T310C Multimedia Hotzone Wireless AP/SW Ve\
rsion: 200.15.6.212.27"
+ System capabilities : bridge, WLAN access point, router
Enabled capabilities: bridge, WLAN access point
+ Management address (IPv4): 192.168.1.5
+ Port description : "eth0"
+ Link aggregation: capable, but not aggregated
+ 802.3 MAC/PHY : auto-negotiation enabled
Advertised capabilities: 10BaseT-HD, 10BaseT-FD, 100BaseTX-HD,
100BaseTX-FD, fdxPause, fdxAPause, 1000BaseT-FD
Operational MAU type : 1000BaseT-FD

Local port: 1/1/8
Neighbor: 4cb1.cd1c.ffc0, TTL 116 seconds
+ Chassis ID (MAC address): 4cb1.cd1c.ffc0
+ Port ID (MAC address): 4cb1.cd1c.ffc0
+ Time to live: 120 seconds
+ System name: RuckusAP Maste
+ System description : "Ruckus H510 Multimedia Hotzone Wireless AP/SW Ver\
sion: 200.15.6.212.27"
+ System capabilities : bridge, WLAN access point, router
Enabled capabilities: bridge, WLAN access point
+ Management address (IPv4): 192.168.1.4
+ Port description : "eth0"

+ Link aggregation: capable, but not aggregated
+ 802.3 MAC/PHY : auto-negotiation enabled
Advertised capabilities: 10BaseT-HD, 10BaseT-FD, 100BaseTX-HD,
100BaseTX-FD, fdxPause, fdxAPause, 1000BaseT-FD
Operational MAU type : 100BaseTX-FD

Local port: 1/1/9
Neighbor: 348f.270d.2b30, TTL 101 seconds
+ Chassis ID (MAC address): 348f.270d.2b30
+ Port ID (MAC address): 348f.270d.2b30
+ Time to live: 120 seconds
+ System name: RuckusAP Garag
+ System description : "Ruckus R510 Multimedia Hotzone Wireless AP/SW Ver\
sion: 200.15.6.212.27"
+ System capabilities : bridge, WLAN access point, router
Enabled capabilities: bridge, WLAN access point
+ Management address (IPv4): 192.168.1.6
+ Port description : "eth0"
+ Link aggregation: capable, but not aggregated
+ 802.3 MAC/PHY : auto-negotiation enabled
Advertised capabilities: 10BaseT-HD, 10BaseT-FD, 100BaseTX-HD,
100BaseTX-FD, fdxPause, fdxAPause, 1000BaseT-FD
Operational MAU type : 100BaseTX-FD

Local port: 1/1/10
Neighbor: 18fd.7405.3a21, TTL 110 seconds
+ Chassis ID (MAC address): 18fd.7405.3a1d
+ Port ID (interface name): ether5
+ Time to live: 121 seconds
+ System name: RouterOS
+ System description : "MikroTik RouterOS 7.21rc6 (testing) 2026-01-09 09\
:16:41 RB750Gr3"
+ Management address (IPv4): 192.168.1.1
+ System capabilities : bridge, router
Enabled capabilities: bridge, router
+ Port description : "bridge/ether5"
+ MED capabilities: capabilities
MED device type : Network Connectivity
+ 802.3 MAC/PHY : auto-negotiation supported, but disabled
Operational MAU type : Other

Local port: 1/1/11
Neighbor: c803.f502.d180, TTL 102 seconds
+ Chassis ID (MAC address): c803.f502.d180
+ Port ID (MAC address): c803.f502.d180
+ Time to live: 120 seconds
+ System name: RuckusAP Main
+ System description : "Ruckus R510 Multimedia Hotzone Wireless AP/SW Ver\
sion: 200.15.6.212.27"
+ System capabilities : bridge, WLAN access point, router
Enabled capabilities: bridge, WLAN access point
+ Management address (IPv4): 192.168.1.3
+ Port description : "eth0"
+ Link aggregation: capable, but not aggregated
+ 802.3 MAC/PHY : auto-negotiation enabled
Advertised capabilities: 10BaseT-HD, 10BaseT-FD, 100BaseTX-HD,
100BaseTX-FD, fdxPause, fdxAPause, 1000BaseT-FD
Operational MAU type : 1000BaseT-FD

Local port: 1/1/12
Neighbor: c803.f503.3c00, TTL 115 seconds
+ Chassis ID (MAC address): c803.f503.3c00
+ Port ID (MAC address): c803.f503.3c00
+ Time to live: 120 seconds
+ System name: RuckusAP
+ System description : "Ruckus R510 Multimedia Hotzone Wireless AP/SW Ver\
sion: 200.15.6.212.27"
+ System capabilities : bridge, WLAN access point, router
Enabled capabilities: bridge
+ Management address (IPv4): 192.168.1.45
+ Port description : "eth0"
+ Link aggregation: capable, but not aggregated
+ 802.3 MAC/PHY : auto-negotiation enabled
Advertised capabilities: 10BaseT-HD, 10BaseT-FD, 100BaseTX-HD,
100BaseTX-FD, fdxPause, fdxAPause, 1000BaseT-FD
Operational MAU type : 10BaseT-FD

show inline power

SSH@ICX7150-C12 Switch# show inline power

Power Capacity: Total is 124000 mWatts. Current Free is 32400 mWatts.

Power Allocations: Requests Honored 12 times

Port Admin Oper ---Power(mWatts)--- PD Type PD Class Pri Fault/
State State Consumed Allocated Error
-----------------------------------------------------------------------------
1/1/1 On Off 0 0 n/a n/a 3 n/a
1/1/2 On Off 0 0 n/a n/a 3 n/a
1/1/3 On Off 0 0 n/a n/a 3 n/a
1/1/4 On Off 0 0 n/a n/a 3 n/a
1/1/5 On On 3700 15400 2P-IEEE Class 3 3 n/a
1/1/6 On Non-PD 0 0 n/a n/a 3 n/a
1/1/7 On Off 0 0 n/a n/a 3 n/a
1/1/8 On On 3500 30000 2P-IEEE Class 4 3 n/a
1/1/9 On On 3100 15400 2P-IEEE Class 3 3 n/a
1/1/10 On Non-PD 0 0 n/a n/a 3 n/a
1/1/11 On On 3300 15400 2P-IEEE Class 3 3 n/a
1/1/12 On On 2800 15400 2P-IEEE Class 3 3 n/a
-----------------------------------------------------------------------------
Total 16400 91600
