ICX-7150-C12P multiple attempts to boot to switch mode BAD FIT

rockhauler64
New Contributor

Every time there is a power outage it will take at least a dozen or more reboots to get the switch to load into switch mode. I was looking through the forums and different articles.  I have attempted to run a software recovery.  However, following the direction from the following link https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-perform-a-Software-re...

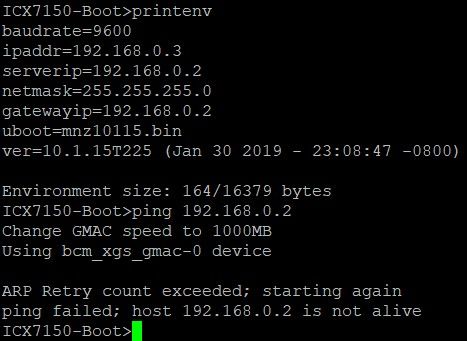

I get the "not alive" when I try to ping after following the steps in the above link.

I've read in other posts that the out-of-band port is not responding and that it since the software recovery is not working, this is an RMA.   Any other suggestions or other things I can try?   Or is this considered a RMA



software recovery not working

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/ICX-7150-C12P-takes-multiple...

Out band  Port not Responding

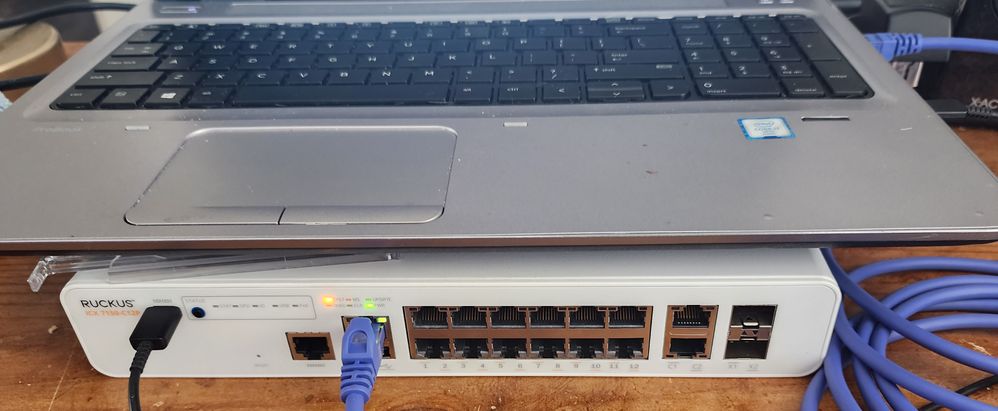

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/ICX7150-stuck-in-boot-mode-q...No Kernel ImageNo Kernel Imagenot alivenot alivecurrent port lights and connectionscurrent port lights and connections

1 REPLY 1

Imran_ruckus
Moderator
Moderator

Hi rockhauler64

Greetings of the day!!!

Apologies for the delayed response to this query.

Thank you for sharing the requested information.

Based on the troubleshooting done, and you confirm after the reset, booting up the Switch, and after trying the software recovery process, the failure persists. This unit Should be RMA (Return Merchandise Authorization) in simple words replacing it.

Feel free to contact us via chat, comment you already have a post, copy the link from the post (URL) and paste it into the chat to start the unit replacement.

Please follow the below steps as shown in the below example:



As shown in the below picture, copy the link and share it via chat from the link provided below:

The below link is to contact us by chat (only)

https://support.ruckuswireless.com/contact-us



Please let me know if you have any queries in this regard.



Best regards,

Imran Sanadi

Lennar Home Community.
