ICX 7150-C12P displays orange light for SYST indicator Stuck at Ping is not alive

eduardsiquioco
New Contributor

I'm following the guide posted in another post but I am getting trying to do PING but it is saying host is not alive.

printenv
baudrate=9600
ipaddr=192.168.0.3
serverip=192.168.0.2
netmask=255.255.255.0
gatewayip=192.168.0.2
uboot=mnz10114
image_name=SPR08080d.bin
ver=10.1.14T225 (Nov 15 2018 - 04:59:18 -0800)

Environment size: 185/16379 bytes
ICX7150-Boot>ping 192.168.0.2
Change GMAC speed to 1000MB
Using bcm_xgs_gmac-0 device

ping failed; host 192.168.0.2 is not alive

Guide I'm following:

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-perform-a-Software-re...




1 ACCEPTED SOLUTION

Hi @eduardsiquioco





Greetings of the day,



Thanks for the detailed description.



Please try the same troubleshooting steps by turning off the windows firewall. Here I share the guide on how to turn off windows firewall.



Guide to turn off Windows firewall

https://support.microsoft.com/en-us/windows/turn-microsoft-defender-firewall-on-or-off-ec0844f7-aebd...



Please read the guide carefully before starting the steps.



How to perform a Software recovery on an ICX7150 switch

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-perform-a-Software-re...

Ruckus ICX Recovery tutorial video

https://www.youtube.com/watch?v=RHriOYYD_iI&t=7s



Best regards,

Jayavidhya

Lennar Home Community


View solution in original post

8 REPLIES 8

eduardsiquioco
New Contributor

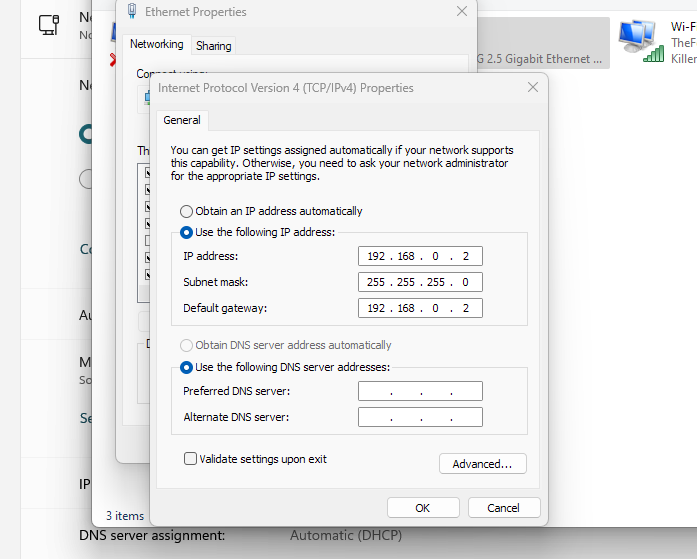

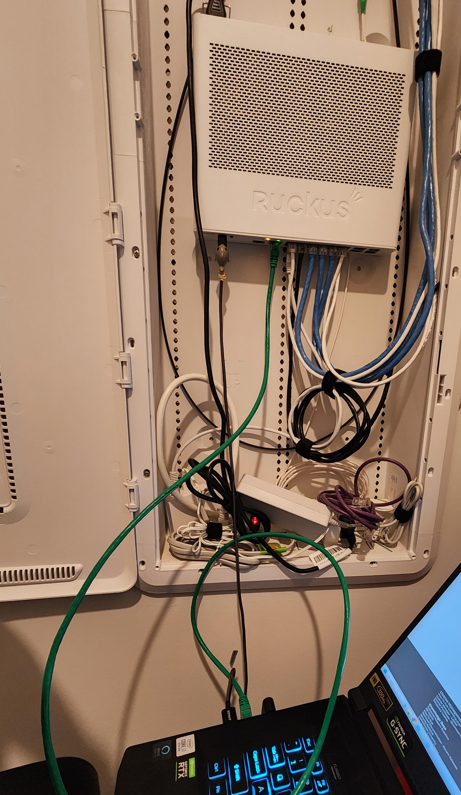

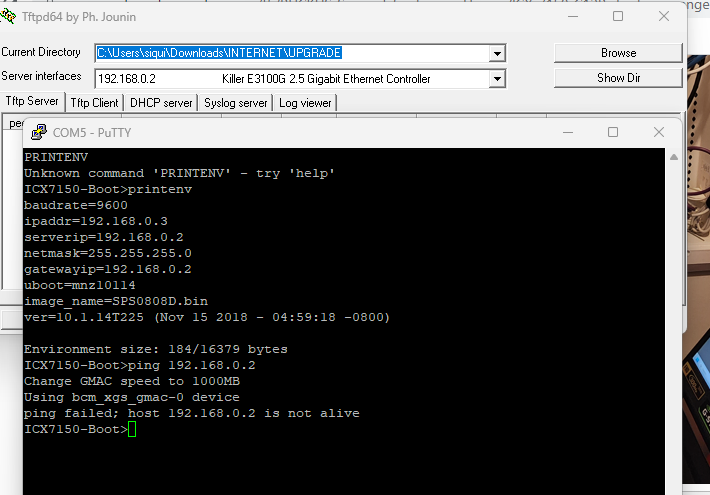

Attaching here all photos of setup of IP and connections to the switch



Screenshot 2023-04-30 181952.pngScreenshot 2023-04-30 182705.pngScreenshot 2023-04-30 182737.png

Screenshot 2023-04-30 194139.png

Hi @eduardsiquioco



Greetings of the day,

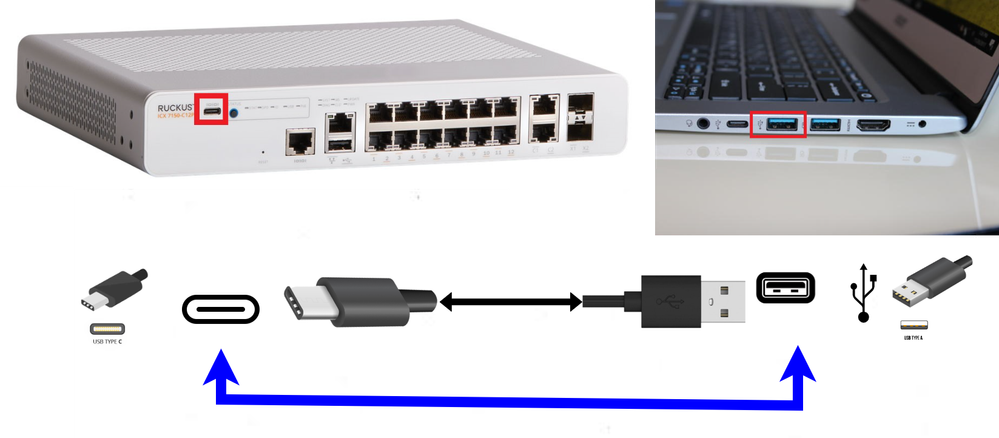

For detailed understanding of the issue, please provide an image/photo where you are trying to connect via console / Ethernet  from ICX 7150 - C12 P (USB type C to USB ) to PC. ( Physical setup ) like the following example :

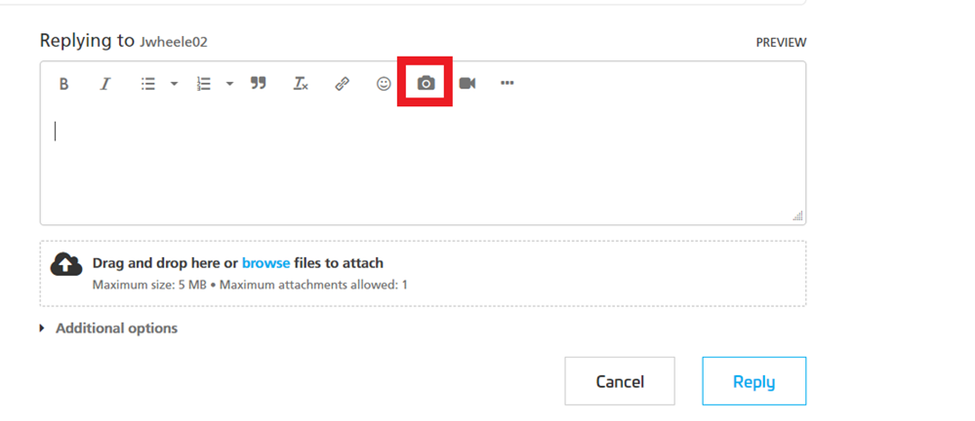

Before uploading the photos please login to the RUCKUS account and you can upload the image.






Best regards,

Jayavidhya

Lennar Home Community


Reposted with more pics below
