I am unable to connect to any device using Ruckus access points.

[MohitJain]

I am unable to connect to any device using Ruckus access points. Is there anything that needs to be corrected or is it Device issue?

[Imran_ruckus]

Hi @MohitJain

Thank you for the response and update.

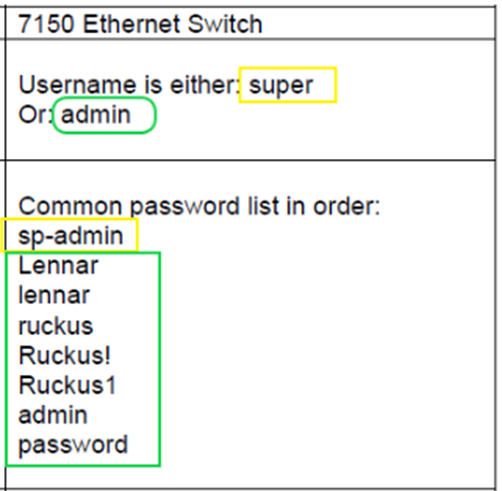

If your credentials are not working, you could try with the below combination once:

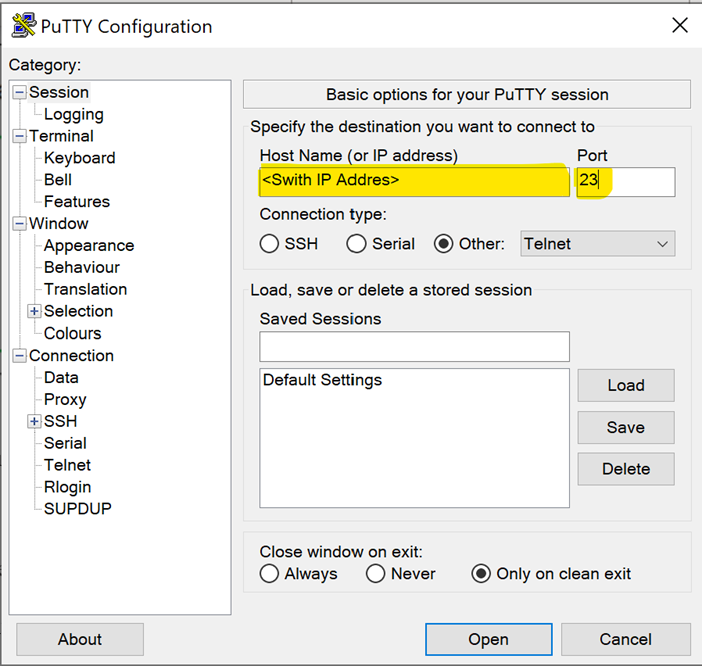

If any of the username and password does not work, you could reset them on Telnet login:

Now again reset your new credentials as mentioned in the steps below:

Edit the current or create a new password and username by using the below commands:

enable

configure terminal

device(config)# username super password pass

Where the username is ’super’ and password ‘pass’ (You could choose any of your choices)


In order to allow the correct authentication please run the following commands:


Device(config)#crypto key generate rsa

device(config)# aaa authentication login default local

Now you could try using your new credentials to log in and add Switch on Unleashed.

Please let me know if you have any queries in this regard.

Thank you again for your patience.

Best regards,

Imran Sanadi

Lennar Home Community.

[MohitJain]

Hi,

Apologies for the delayed response, I was out of the town during this time. Looks like I need to upgrade the version.

Please find below details of ICX show version output.

Copyright (c) 2017 Ruckus Wireless, Inc. All rights reserved.
UNIT 1: compiled on Nov 20 2018 at 00:20:22 labeled as SPR08080d
(29819448 bytes) from Secondary SPR08080d.bin
SW: Version 08.0.80dT213
Compressed Boot-Monitor Image size = 786944, Version:10.1.14T225 (mnz10114)
Compiled on Thu Nov 15 12:59:22 2018

HW: Stackable ICX7150-C12-POE
==========================================================================
UNIT 1: SL 1: ICX7150-C12-2X1G POE 12-port Management Module
Serial #:FEK3823Q2RH
Software Package: ICX7150_BASE_L3_SOFT_PACKAGE
Current License: 2X1G
P-ASIC 0: type B160, rev 11 Chip BCM56160_B0
==========================================================================
UNIT 1: SL 2: ICX7150-2X1GC 2-port 2G Module
==========================================================================
UNIT 1: SL 3: ICX7150-2X10GF 2-port 20G Module
==========================================================================
1000 MHz ARM processor ARMv7 88 MHz bus
8192 KB boot flash memory
2048 MB code flash memory
1024 MB DRAM
STACKID 1 system uptime is 14 day(s) 7 hour(s) 35 minute(s) 9 second(s)

[Imran_ruckus]

Hi @MohitJain

Greetings!!!

Thank you for the response and the information you shared.

This issue is because your switch is running on the Routing code (SPR). The Switch should run on the Switching code (SPS) to avoid these issues for Lennar home users. Due to a power outage/power spike, the Switch boots up on the other partition which may be running on a ‘Routing Code’ results in causing this issue.

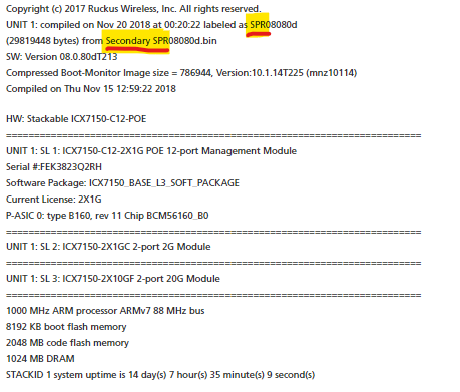

As I can see from the output you shared, your Switch is booted up on the secondary partition which is running on Routing code (SPR) as highlighted in the below screenshot.

Please Enter the below commands in CLI to fix this issue:

Note: Hit Enter to accept each command

enable

copy flash flash secondary

boot system flash secondary yes

We suggest upgrading your switch to the latest stable version to avoid this issue in the future. Your Switch is on a older version that is 08080d. Please let us know once you complete the above process to assist you with the Upgrade of the Switch.

Please let me know if you have any queries in this regard.

Thank you again for your patience.

Best regards,

Imran Sanadi

Lennar Home Community.

[MohitJain]

show version output after running above commands:

Copyright (c) 2017 Ruckus Wireless, Inc. All rights reserved.
UNIT 1: compiled on Nov 20 2018 at 00:09:55 labeled as SPS08080d
(25968884 bytes) from Secondary SPS08080d.bin
SW: Version 08.0.80dT211
Compressed Boot-Monitor Image size = 786944, Version:10.1.14T225 (mnz10114)
Compiled on Thu Nov 15 12:59:22 2018

HW: Stackable ICX7150-C12-POE

Can you please assist with version upgrade process.

Thanks,

Mohit Jain

[Imran_ruckus]

Hi @MohitJain

Thank you for the response and the update.

Great!!! Good to know that your Switch is now on the Switching Code (SPS) which should resolve the issue.

Please follow the below steps for Upgrading your Switch to the latest stable version.

The recommended stable version is 8095g (08.0.95g)-

Below are the options or methods to perform the Upgrade on the switch: You could choose any one of these.

1st Option:

1. In this option, we will use a pen drive or USB flash drive in which we move the files to the pen drive and connect it to the Switch then through CLI we execute the commands to upgrade the Switch using the following guide as a reference:

How to Upgrade a Switch ICX-7150-C12P using a USB flash drive

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-Upgrade-a-Switch-ICX-...

2nd Option:

2. The following guide is an example of an upgrade via TFTP server, by using an application (FREE) to send files or upload remote files to a device, in our case, we will use it to update a new version to the Switch, basically it will send the image version remotely from the computer to the switch.

How to upgrade a Switch ICX7150-C12P via TFTP

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-Upgrade-a-Switch-ICX-...

3rd Option:

3. In this option we Upgrade the Switch from the Web Interface (GUI) of switch.

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-perform-an-Upgrade-vi...

Try to access your switch from a web browser by pasting the below URL in http or https form whichever that works.

https://0.0.0.0 or http://0.0.0.0 (IP address of Switch. 0.0.0.0 is just as an example)

As you can access CLI, I would suggest you follow the 2nd option.

Please follow the Upgrade process and share the screenshots if stuck at any step or error (if any) and let me know if you have any queries in this regard.

NOTE: Please feel free to mark the previous posts as ACCEPTED SOLUTIONS.

Thank you again for your patience and understanding.

Best regards,

Imran Sanadi

Lennar Home Community.
