Connectivity issues still occuring after power outage 2 days ago

yeahdawg
New Contributor

We had a power outage on monday around 12:05pm pst and ever since then our Ruckus system has had connectivity issues. Other neighbors in the same Lennar community have also experienced the same issue, regardless of their ISP. I and one other neighbor have ATT and most of the other neighbors have Spectrum.  If I bypass the Ruckus system and just connect our devices to the ATT router, it works PERFECT, no issues.

We have restarted our ruckus system and access points countless times. I have tried multiple ethernet cords as well.

Our system

  • Ruckus ICX 7150-C12P (Power connected to a surge protector)
  • 2 AP (1 downstairs, 1 upstairs)

Our internet download speed(800 mbits) and upload speed (500 mbits) have been great, it is just that certain websites and services are having issues buffering/connecting/resolving and eventullay just timeout. Here is an example screenshot of website just timing out. I have to hit ctrl+f5 repeatedly for a couple minutes and it might work. This occurs in any browser, I have tested google chrome and mozilla firefox.




On my desktop PC, I am hardlined via ethernet directly into the Ruckus system and still have connectivity issues, which to me says that this is not an AP problem since APs are used for wifi. If I connect my desktop PC to the ATT router WIFI, again my internet works perfectly.  

Here are screenshots of the ruckus system lights

Ruckus ICX 7150-C12P



AP Upstairs


 AP downstairs




I even went as far as trying to follow this guide on how to fix routing code issues but since the guide is out of date I am not able to find the Flash information area to configure the boot sequence.

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-Fix-Routing-code-issu...

I am able to hit my ruckus system using its ip address to get to Ruckus Commscope on my desktop pc chrome browser and it is showing 0 working switches, can this be a cause of the issue?? Here is a screenshot.


 Here is also a screenshot of the android app showing no switch




It is no coincidence that me and a some neighbors in the same community are having internet issues regardless of ISP. I will be on the lookout for a reply on this thread that will most likely ask for more diagnostic info but I think it would be more benifical to call me which is in profile info that you guys have. Other people in the forum are experincing this issue after a power outage as well.



1 ACCEPTED SOLUTION

Hi @yeahdawg

Thank you for the response and the update.

Could you please close putty and login once again via Telnet and try?

If there is same issue, please enter below commands and try.

enable

reload  (This command will reboot the Switch)

y (Wait until the Switch comes up after reboot and restart Putty, perform next commands)

copy flash flash secondary

boot system flash secondary yes

Please check and let me know if you have any queries in this regard.

Thank you again for your patience and understanding.



Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

View solution in original post

23 REPLIES 23

yeahdawg
New Contributor

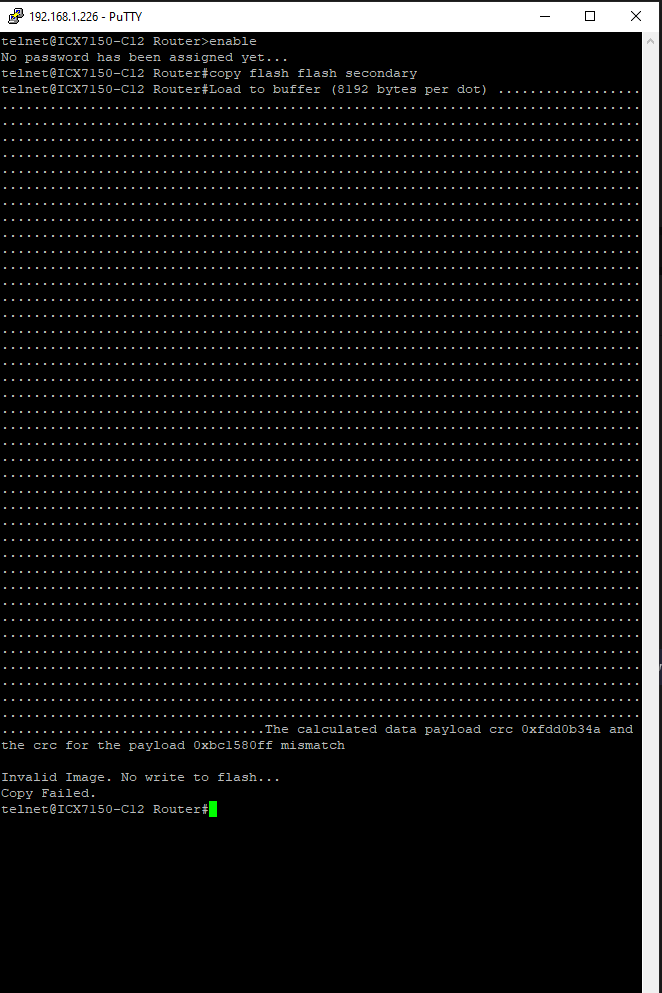

Irman, I am getting an invalid image error.




yeahdawg
New Contributor

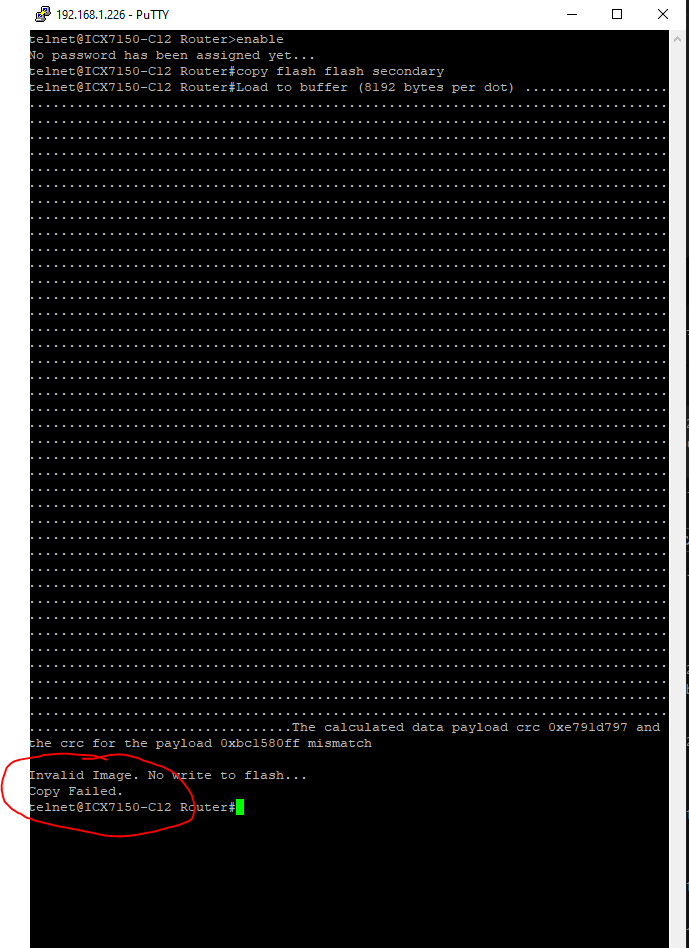

Irman,  I am getting an invalid image. no write to flash message. Copy failed. See screenshot.






Hi @yeahdawg

Thank you for the response and the update.

Could you please close putty and login once again via Telnet and try?

If there is same issue, please enter below commands and try.

enable

reload  (This command will reboot the Switch)

y (Wait until the Switch comes up after reboot and restart Putty, perform next commands)

copy flash flash secondary

boot system flash secondary yes

Please check and let me know if you have any queries in this regard.

Thank you again for your patience and understanding.



Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

yeahdawg
New Contributor




yeahdawg
New Contributor

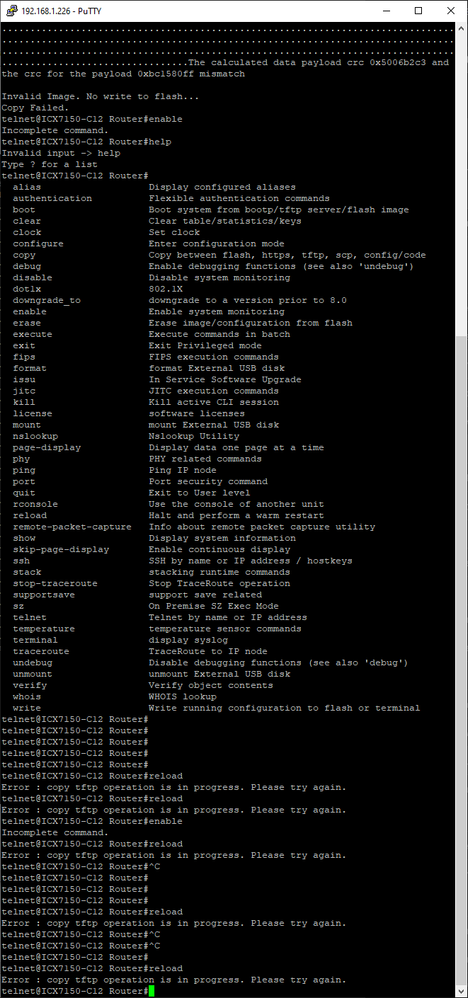

Ok i had to reload and was able to successfuly run the copy flash flash secondary command.



Does running "boot system flash secondary yes" restart the system? I just ran it and it looks like it is restarting the system
