Issue for Dynamic Vlan for TOIP

[KevAktea33]

Hi dear community,

I need your help ^^

I have implement Dynamic Vlan Assignement on our infrastructure. With some ICX 7250 (SPS08030e) and Aruba ClearPass for Authentication Server.

I have an issue when i try to authenticate Phone-IP (mac-auth).
The Phone-IP are AASTRA 6731i.

When i connect he Phone-IP alone on the switch port. It dont get an IP and stay in the state (network initialize). But when i connect a computer(dot1x) behind the Phone-IP (on state initalize). The phone-IP WORKKKK !! And the cherry on the cake (french expression), When i connect the phone on the switch  with the PC already on the phone, they both DON'T WORK.

Of course the authentication for computer alone work well.

This is my config :

authentication
auth-default-vlan 60
no filter-strict-security enable
auth-vlan-mode multiple-untagged
disable-aging denied-mac-only
dot1x enable
dot1x enable ethe 1/1/10
mac-authentication enable
mac-authentication enable ethe 1/1/10

interface ethernet 1/1/10
dot1x port-control auto
inline power
voice-vlan 8

lldp med network-policy application voice tagged vlan 8 priority 6 dscp 6 ports ethe 1/1/10
lldp run

I hope someone can help me for this case 🙂

Thank you very much.

Kevin.

[KevAktea33]

Maybe, i must give another infomation.

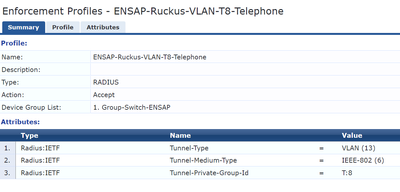

The Vlan assignement is push by clearpass with RADIUS:IETF Atribute in a Enforcement Profiles in clearpass (work well for other type of device)

And the auth-default-vlan 60 in the ICX config is an empty vlan which exist only on the switch with nothing behind.

[jdryan]

Hi Kevin,

Based on the details shared, Could you check once with only mac-auth for the IP-Phone and let us know.
if with only Mac-auth for the Ip-phone works as expected , then try by adding the below statement :

auth-order mac-auth dot1x

under authentication, and check once more, here we would be allowing the system to undergo mac-auth first and then dot1x.

Do let us know, how that goes.
