thuertas
New Contributor

UNABLE TO GET TO THE COMMAND LINE FROM MY MAC.  SWITCH SHOW DISCONNECTED

2 REPLIES 2

thuertas
New Contributor

Please post Mac instructions.  I've been troubleshooting for 3 days. Trying to get my icx7150-c12 router connected.  I've dowloaded putty, Mac osx vcp and silabs drivers. I can't get to the command line with icx7150.



Mayank
RUCKUS Team Member

Hi Thuertas ,

Thank you for reaching us.

I see that you have posted twice.

Could you please let me know if you are from Lennar Homes ?


For Mac iOS system solution please refer the below steps:

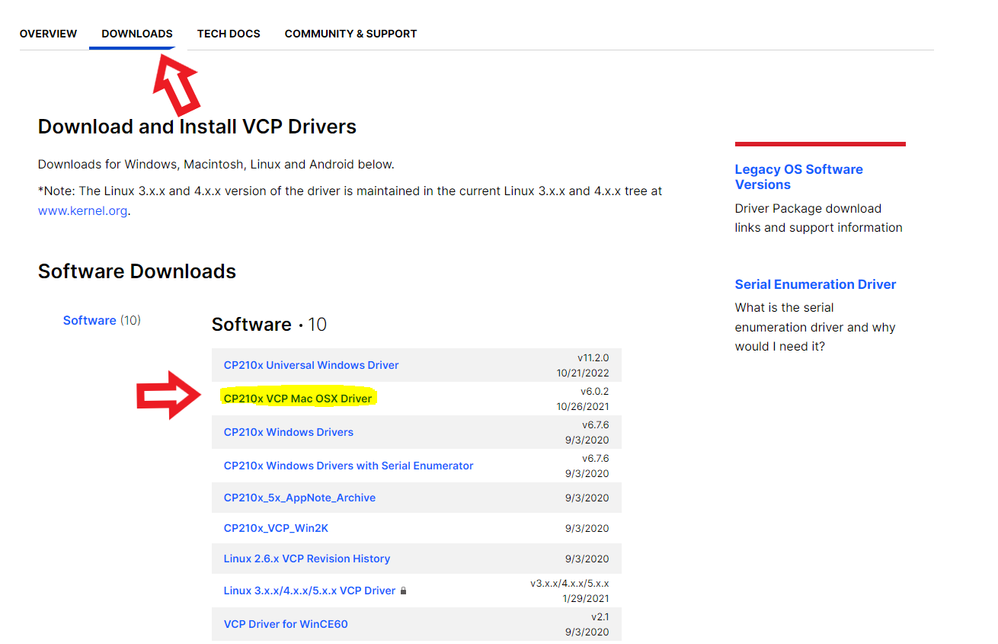

1-Install the drivers on your machine to read the cable type C to console the switch ( ICX-7150-C12 )

Software:

Link:https://www.silabs.com/developers/usb-to-uart-bridge-vcp-drivers?tab=downloadshttps://www.silabs.com...

Link:https://support.ruckuswireless.com/software/1413-brocade-ruckus-7150-usb-serial-driver-mac





2-After successfully installing the Mac Drivers, open the Mac terminal, when you see the command prompt do the following:

Enter this command:

ls /dev/cu.*

This command will display something like this:

One of those logs will say something similar to /dev/cu.SiLabs_Serial (which is related to the drivers you installed)

3-Then enter the following command using the name of the installed driver that was displayed:

screen /dev/cu.SiLabs_Serial 9600

4-Hit Enter and you will have access to the ICX7150’s CLI. (Comand Line)

Video link as reference: https://www.youtube.com/watch?v=1AcJokMm78U

Moving Forward If this issue is not resolved , Please log a ticket with the below link so that we will help you further

https://support.ruckuswireless.com/contact-us

I hope this information helps you

Please feel free to leave us a message if any concerns

Thanks
