How enable 160 Mhz or 80+80 MHz on AP r730

New Contributor III


I'm trying to use Ruckus R730.

I found confusing information in different documentation:

* it's clear that it supports 20/40/80 Mhz

* in some places (for example documentation about ZC) I can see that it can support 80+80/160

To check how it works I installed vSZ v6.0.0 (the last version that has firmware for this AP, v6.1 uses old firmware)

But in the interface, if I'm trying to override parameters for 5Ghz I see only options for 20/40/80.

Also, it is connected using a 48V (at least 2A) DC adapter.

Does it actually support 80+80/160 Mhz and can I active it (even in SOLO mode)?

Thank you.


RUCKUS Team Member

Hello @namezys

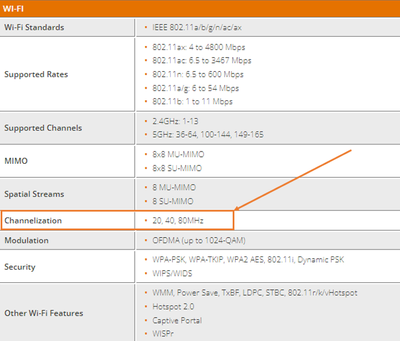

I found in the datasheet for the R730 this is what they support:


This is how it looks like in the datasheet for the R650 which supports 80+80


Let me know your comments or questions.

With regards,
Orlando Elias
Technical Support

View solution in original post


New Contributor III

Maybe you have software/firmware that is not available public?


What is the version of your R730? The newest version is available for this AP:

About the performance in solo mode, please collect the follwing commands in both solo and SZ for us to understand better: get cwmode wifi1 /wifi0, get wlanlist, get channel wifi1 /wifi0, get txpower wifi1 /wifi0, get scanresults wifi1 /wifi0

With regards,
Orlando Elias
Technical Support

after double recheck it changed its mind and started to work perfect even in Solo mode.

BTW it's helpful information
