LDAP Auth for SSID Virtual Smart Zone

stephen_johanns
New Contributor II
Is it possible to setup LDAP Authentication on a Wireless SSID? If so How?

We have an LDAP AAA Server setup which is used by our Web Authentication Portal but when setting up another SSID using 802.1x we are unable to choose the LDAP Authentication Server.

SSIDS do not Proxy thier AAA Requests in our setup, they are set to break out from the AP locally.
2 REPLIES 2

syamantakomer
Community Admin
Community Admin
Hi Stephen,

LDAP authentication is only available when WLAN is configured in below combination.

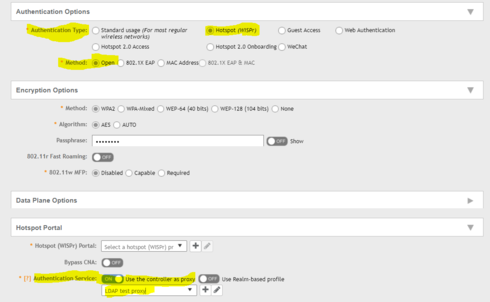

1. Hotspot+Open+ LDAP (controller as proxy)

Authentication type: Hotspot(WISPr)
Method: Open
Encryption: Any/Open
Authentication service: Use the controller as proxy (Only proxy is supported)

Image_ images_messages_5f91c455135b77e247a2e597_b19522b9fd849acbfeab07ef4aa5e1f9_RackMultipart2020092381117ntxn-db913834-ccd7-4e99-803d-c4b643f90cfa-2144436700.png1600879270

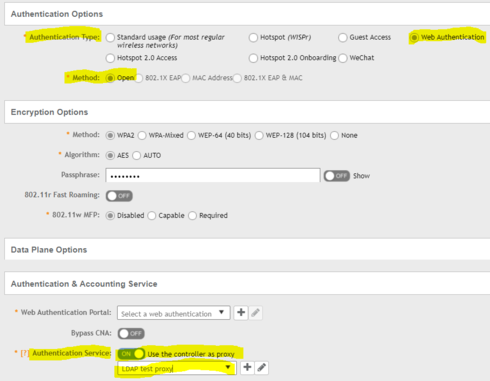

2. Web Authentication+Open+ LDAP (controller as proxy) or LDAP non proxy

Authentication type: Web Authentication
Method: Open
Encryption: Any/Open
Authentication service: LDAP (proxy) or non proxy. Both are supported.

Proxy
Image_ images_messages_5f91c455135b77e247a2e597_815327782f37c6e0afa7aeca3b04b881_RackMultipart2020092390243ik3g-c88c1542-2cc3-4fc1-bf6c-04836589be32-319458295.png1600879371

Non-proxy
Image_ images_messages_5f91c455135b77e247a2e597_c8e666a08c45a10b5db9fac5d0247c6c_RackMultipart20200923501pb13nd-22e762aa-2c50-4146-8df6-24442d768f01-183767619.png1600879335


Regards,
Syamantak Omer



Syamantak Omer
Sr.Staff TSE | CWNA | CCNA | RCWA | RASZA | RICXI
RUCKUS Networks, CommScope!
Follow me on LinkedIn

My Virtual Smart Zone is 6.0.0.0.1331 ,then I use Proxy(SZ Authenticator),Create Radius ,
Test  AAA  by PAP is Good。
But when I actually connect back to Radius through the AP, it fails
Error log display  "chap: ERROR: &control:Cleartext-Password is required for authentication"

I want use Protocol PAP , where can i do it set ?
