Switch Continually Reboots

[apgSM]

My ICX 7150-C12P switch is continually rebooting itself. I have a two R510 AP connected to the switch.  I've upgraded firmware to 200.14.6.1.199 on both AP.  I've tried downgrading and upgrading firmware several times.  I've reset the switch and modem several times.

[apgSM]

Any solutions available from support?

[Imran_ruckus]

Hi @apgSM

Greetings!!!

Thank you for contacting RUCKUS Lennar Home Community.

Hope you are doing well!!!

Thank you for the information you shared.

As per the case description, I could understand that your ICX-7150-C12P Switch is rebooting multiple times.

As per the light status of the Switch in the picture you shared, it seem normal.

We will check some configurations on the Switch, please follow the below steps to check the same.

Please follow the below steps and help us with the queries,

1. To check this issue, we must identify the ‘current’ IP address assigned by your local router to the switch ICX-7150-C12P

I will leave you a guide on how to perform an IP scanner on your local network to identify the switch IP address very easily.

How to find my Ruckus “Devices IP address” using free applications:

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-find-my-Ruckus-Device...

2. Once we identify the IP address of the switch proceed to access remotely to the device “Command Line”

How to remotely access to 'ICX 7150-C12P' or 'access points' "Network devices":

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-remotely-access-to-IC...

If you can access the Command line should look like this:

ICX7150-C12 Router> OR

ICX7150-C12 Switch>

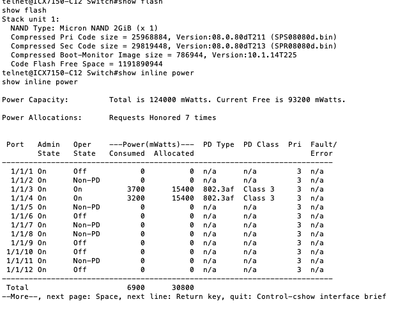

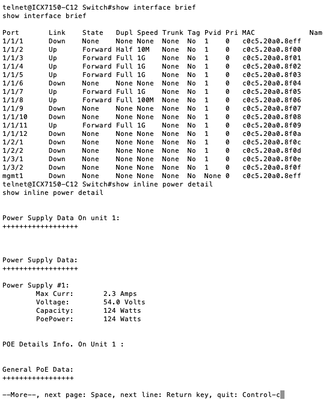

Please enter the below commands once you log in to CLI and share the output.

Note: Hit Enter to accept each command

enable

show version

show flash

show inline power
show interface brief

show inline power detail

Please share the output of the above commands or share the screenshots if stuck at any step or error (if any) and let me know if you have any queries in this regard.

Thank you again for your patience and understanding.

Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

[apgSM]

 

 

 

[Imran_ruckus]

Hi @apgSM

Thank you for the response and the information.

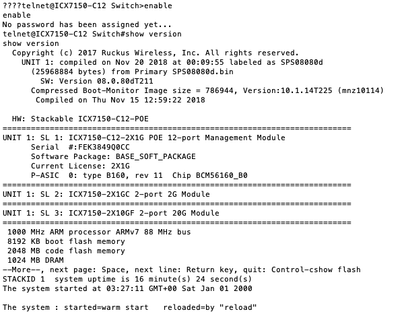

As your Switch is on the old UFI version 08080d (Please refer to the below screenshot) we suggest you Upgrading your Switch to a latest stable version to avoid this issue.

Please follow to the below steps explaining the Upgrade process.

The recommended stable versions is 8095g (08.0.95g)

The Upgrade path would be: 08080d (your current version)>>8080f>>8095g

(PLEASE NOTE: Use 08095g patch in place of 8095h as explained in the guide)

Your Upgrade folder should contain these 3 files shown in the below screenshot: (Refer the guide link for more information)

Below are the options or methods to perform the Upgrade on the switch: You could choose any one of these.

1st Option:

1. In this option, we will use a pen drive or USB flash drive in which we move the files to the pen drive and connect it to the Switch then through CLI we execute the commands to upgrade the Switch using the following guide as a reference:

How to Upgrade a Switch ICX-7150-C12P using a USB flash drive

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-Upgrade-a-Switch-ICX-...

2nd Option:

2. The following guide is an example of an upgrade via TFTP server, by using an application (FREE) to send files or upload remote files to a device, in our case, we will use it to update a new version to the Switch, basically it will send the image version remotely from the computer to the switch.

How to upgrade a Switch ICX7150-C12P via TFTP

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-Upgrade-a-Switch-ICX-...

3rd Option:

3. In this option we Upgrade the Switch from the Web Interface (GUI) of switch.

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-perform-an-Upgrade-vi...

Try to access your switch from a web browser by pasting the below URL in http or https form whichever that works.

https://0.0.0.0 or http://0.0.0.0 (IP address of Switch. 0.0.0.0 is just as an example)

As you can access CLI, I would suggest you follow the 2nd option. And we suggest using a Windows laptop/PC for Upgrade.

Please let me know if you have any queries in this regard.

Thank you again for your patience and understanding.

Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.
