Ruclus ICX7150-c12P wont boot up

[sckoshe]

When I power up only the SYST (yellow) light and the pwr (green) light is lit. I have done a hard reboot and total reset and nothing works. When I hold the reset button in and power up all the light flash once and the STST (yellow) light and the pwr (green) light stay on and when I release it does the same thing. What else can I try to get this to boot?

[Imran_ruckus]

Hi @sckoshe

Thank you for the response and the update.

Please configure the same setenv IP Addresses as described in the guide and try software recovery process once again.

Thank you again for your patience and understanding.

Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

[sckoshe]

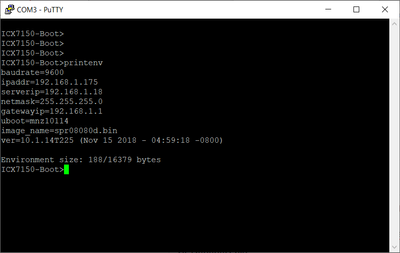

Thats what i did. with the exception of the Image_name which when I do printenv i get  SPR08080D.bin

[Imran_ruckus]

Hi @sckoshe

Thank you for the response.

As you have used different IP Addresses, please refer to the guide and screenshot below and configure the same.

Please check and let me know.

Thank you again for your patience and understanding.

Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

[sckoshe]

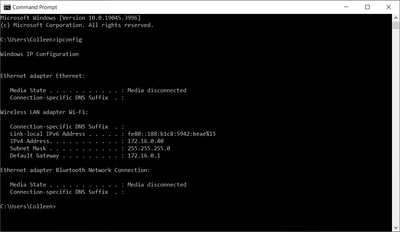

So my network is not based on 192.168.1.1. My network LAN setting is 172.16.0.1. Does that make a difference? Also how do I get the IP address for the TFTP server which is the computer I’m using with PUTTY? Do I use IP config at a command line for the computer?
