Ruckus r510 pwr and ctl lights blinking green with no internet connection

[113fflihj]

I have 3 ruckus r510 repeaters 1 of them works and is connected to the WiFi but 2 of them after a storm had their power button turn red and after I unplugged and plugged back in their Ethernet cables they had their pwr and ctl lights blink green with no WiFi connection any fixes?

[pinky_ruckus]

Hi @113fflihj ,

Greetings!!!

Thank you for contacting RUCKUS Lennar Home Community.

I hope you are doing well!!!

Thank you for the information you shared.

As per the case description, I understand that two of your RUCKUS APs are not turning on after the power outage.

Please unplug the ethernet cable and plug it into the correct port then reboot (unplug and plug from the power outlet) and try to connect to the Internet via Access Points.

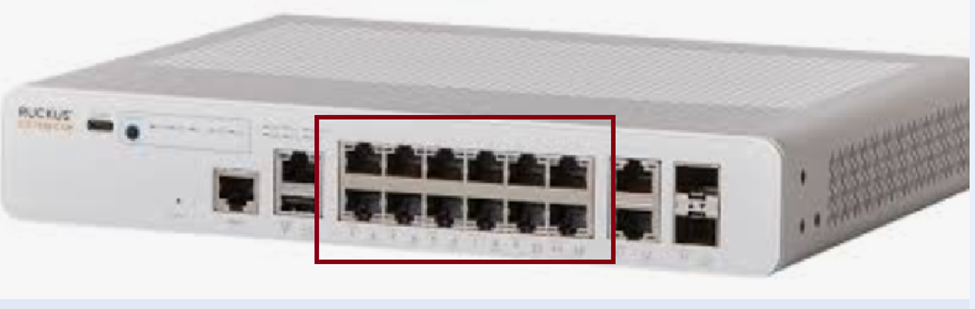

It should be plugged into one of the 12 ports as shown in the below screenshot.

Also, we would need to check few configurations of the switch.

To check this, we must identify the ‘current’ IP address assigned by your local router to the switch ICX-7150-C12P

I will leave you a guide on how to perform an IP scanner on your local network to identify the switch IP address very easily.

How to find the IP Address of the RUCKUS Devices (Switch and APs) using IP Scanner free applications:

https://community.ruckuswireless.com/t5/RUCKUS-Lennar-Support-Knowledge/How-to-find-the-IP-Address-o...

Once we identify the IP address of the switch proceed to access remotely to the device “Command Line”

https://community.ruckuswireless.com/t5/RUCKUS-Lennar-Support-Knowledge/How-to-access-the-Command-Li...

If you can access the Command line should look like this:

ICX7150-C12 Router> OR

ICX7150-C12 Switch>

Once you login to CLI, please enter the below commands and share the output.

Note: Hit Enter to accept each command

enable

show version

show inline power

show inline power detail

show interface brief

Please share the output of the above commands or share the screenshots if stuck at any step or error (if any) and let me know if you have any queries in this regard.

Best regards,

Pinky Rajendran

RUCKUS Lennar Home Community.

[pinky_ruckus]

Hello @113fflihj ,

Greetings!

This is a follow-up in reference to the case you have opened in the Ruckus Lennar Support Community.

I would like to know if you require further assistance since our last correspondence. Should you have any questions or if the status of your case has changed, please let me know by responding to this post.

Please feel free to contact if you have any further concerns regarding the same.

Best regards,

Pinky Rajendran

RUCKUS Lennar Home Community.
