Ruckus not powering

[kvamshi]

Have unplugged and plugged the ruckus switch several times. It does not light up. Something is wrong with the main switch. Can you please help?Yes this is a Lennar home

[Imran_ruckus]

Hi @kvamshi

Greetings!!!

Thank you for contacting RUCKUS Lennar Home Community.

Hope you are doing well!!!

Thank you for the information you shared.

As per the case description, I could understand that your RUCKUS ICX-7150-C12P is not powering up.

Could you please let us know the answers to the below queries to assist you better?

1. Was this working before or is it a new installation? If it worked before, was there any power outage before you started facing this issue?

2. On your switch while it's plugged into the outlet, do you see any lights on? (Amber or green) Please let us know which lights are on. (Please refer to the below picture and share a picture of the same, showing the light status and the FULL Switch panel cable connections to the Switch ports)

Please help us with pictures of your ICX-7150-C12P Switch showing the status of the lights and cable connections to the Switch ports.

Before uploading the photos please log in to the RUCKUS account and you can upload the image.

Please let me know the answers to ALL the above queries and let me know if you have any queries in this regard.

Thank you again for your patience.

Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

[kvamshi]

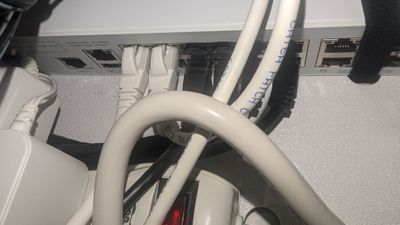

No lights at all on the switch. See picture attached

 

[Jayavidhya]

Hi @kvamshi

Thanks for your response.

Please try to reset the switch using the below guide and let us know the result.

1- Try to disconnect from the Power outlet the ICX- 7150 and reconnect it.

2- Try to press the reset button using a paper click or a small stick

1.  Remove power from the switch.
2. Press and hold the Reset button while applying power to the switch.
3. After all the system LEDs flash amber, release the Reset button.

https://docs.commscope.com/bundle/icx7150-installguide/page/GUID-D3B5DB74-53A7-4F8D-82F9-6EB600879EE...

Video link:https://www.youtube.com/watch?v=6jHMTdo_hK4

Please let us know if you have any queries in this regard.

Best regards,

Jayavidhya

Lennar Home Community
