Routing Code Issues

[mrq201]

Let me try to be as clear as possible.

After reading many forums, I the routing preference on my Switch (ICX 7150) is messed up.

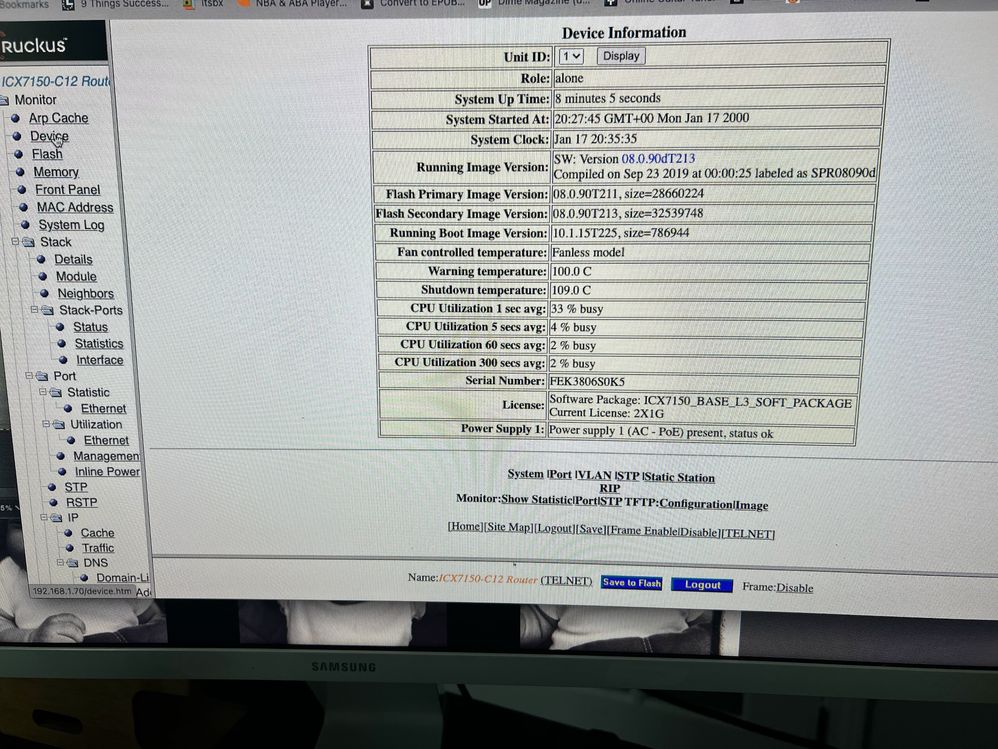

The running Image version is Complied on Sep 23 2019 at 00:00:25 labeled as SPR08090d.  I think this is why when I am using the Extender, my internet lags and sometimes do not work.

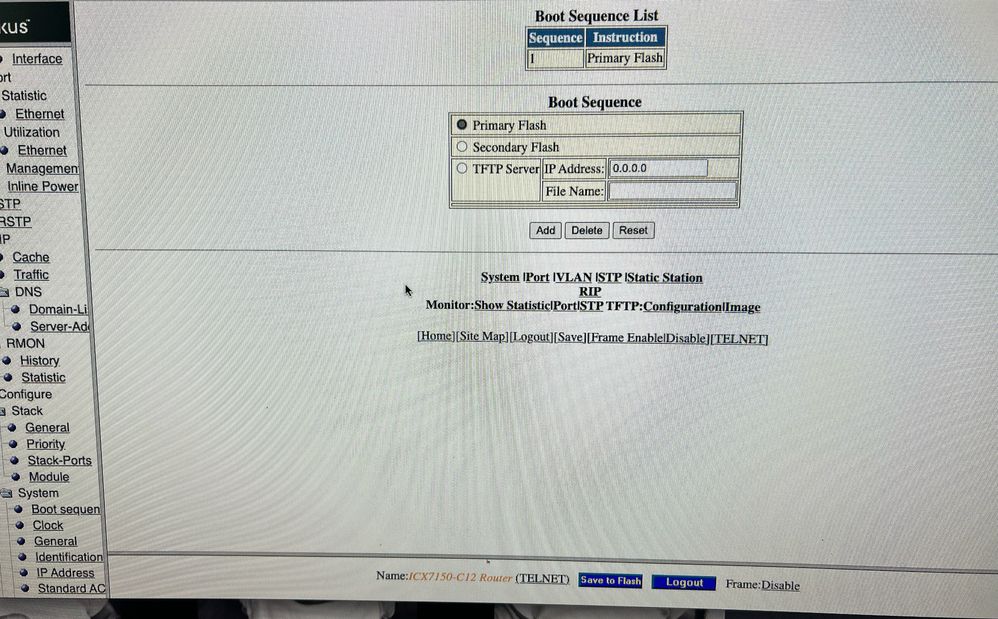

I followed something else I saw on these forums where it instructed me to go to the Boot Sequence (using the GUI)..

Let's fix the issue, please follow the following steps to fix the issue, forcing the Switch to boot from the primary partition containing the SPS (switching code).

Configure left>System>Boot sequence>Select primary flash >ADD>Save>yes

When it comes back this time, the Switch should boot from its primary partitions.
(link to the steps) https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-Fix-Routing-code-issu...

Mine looks just like his.

i followed those instructions and it did not work.

I only have access to a Mac and I tried to SSH into the switch using the Command line.  I run into a problem when it asks for a password.  I have tried the lists of passwords provided by Ruckus and NOTHING works.

What can I do?

[mrq201]

Since the issue relates to the Secondary Flash being booted up first, is there a way to delete/remove the secondary (SPR) so that it no longer shows up (from the GUI that is).  I don't think I will be using the switch as a router

[mrq201]

Nothing has changed.  Issue stays the same.

[Imran_ruckus]

Hi @mrq201

Thank you for the response and the update.

Yes, SPR is not for Lennar Home Users.

Please follow to the below screenshot and enable Telnet:

Once you enable Telnet try to access CLI from the MAC terminal as described below. And share the output of the commands mentioned below in this post.

If you have a MAC device, please try the below process.

Example "open terminal":

Telnet: Example

nc 10.0.0.132 23 (Format is : nc <ip address of the switch> 23)

Please enter the below commands once you log in to CLI and share the output.

Note: Hit Enter to accept each command

enable

show version

show flash

Please share the output of the above commands or share the screenshots if stuck at any step or error (if any) and let me know if you have any queries in this regard.

Thank you again for your patience and understanding.

Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

[mrq201]

[Imran_ruckus · Accepted solution]

Hi @mrq201

Thank you for the response and the information.

Please refer to the below information and perform the commands to copy the SPS Code on both the partitions.

Note: Hit Enter to accept each command

enable

show version

copy flash flash secondary

boot system flash secondary yes

Example:

VIDEO LINK AS REFERENCE: https://www.youtube.com/watch?v=Eem1IBgYaWc

ICX7150-24P Router>enable (hit enter to accept the command)
ICX7150-24P Router#copy flash flash secondary (hit enter to accept the command and wait: until the flash finished)
ICX7150-24P Router#boot system flash secondary yes (hit enter to accept the command: the switch will reboot)

Please confirm once it’s done and let me know if you have any queries in this regard.

Thank you again for your patience and understanding.

Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.
